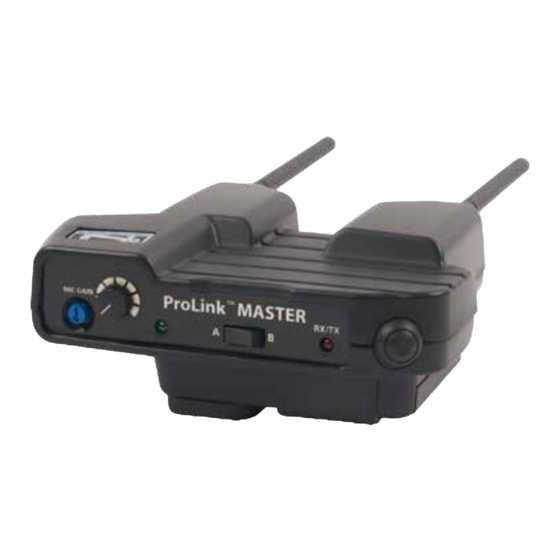

Anchor PRO-570 Owner's Manual

Wireless intercom
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

ProLink 500™ Wireless Intercom Owners Manual
section at www.anchoraudio.com.
Feel free to call our friendly customer support staff at 1-800-ANCHOR1
with any questions. We love to hear from our customers.
Janet Jacobs, President
on behalf of all Anchor employees
CONTENTS
GETTING STARTED ................................................................................................................. 1
DEFINITIONS/APPLICATIONS / SYSTEM RANGE / RECHARGEABLE BATTERIES ............................ 2
BASIC SYTEM SETUP / BELT PACK CONTROLS / BLUETOOTH SETUP ......................................... 3
FREQUENTLY ASKED QUESTIONS ............................................................................................. 4
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................ 4
TROUBLESHOOTING / TECHNICAL SPECS ................................................................................. 6
A Message from the President
Congratulations on purchasing an Anchor Audio intercom
system, the choice of thousands of satisfied customers
including the White House, prestigious universities, school
districts nationwide, police and fire departments, and all
branches of the U.S. Military. Our products are made of the
finest materials and built with pride in the U.S.
We've incorporated the latest technology into your intercom
system yet kept it simple to use. Just take a few minutes to review
this manual to ensure the maximum enjoyment of your Anchor
system. Or, you can view a demonstration video complete with a trouble shooting
For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com
MADE IN USA
TWO YEAR WARRANTY
GETTING STARTED
Please check your new unit carefully for any
damage which may have occurred during shipment.
Each Anchor product is carefully inspected at the
factory and packed in specially designed boxes for
safe transport.
Notify the freight carrier immediately of any damage
to the shipping box or product. Repack the unit
in the original box and wait for inspection by the
carrier's claim agent. Notify your dealer of the
pending freight claim.
NOTE: All damage claims must be made with freight carrier!
RETURNING SYSTEMS FOR SERVICE
OR REPAIR
For service or repair, please contact the dealer
you purchased your system from, call us at 1-800-
262-4671, or visit www.AnchorAudio.com, Contact
Us page. Our tech support team will issue an RA
number for warranted systems, after which, you can
ship the item(s) to Anchor for repair. All shipments
to Anchor Audio must include an RA number and
must be shipped prepaid. C.O.D. shipments and
shipments without an RA number will be refused
and returned at your expense.
IMPORTANT: Save the shipping box & packing materials,
they were specially designed to ship your unit!
The ProLink 500 comes with a two year warranty.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anchor PRO-570

Summary of Contents for Anchor PRO-570

  • Page 1 Just take a few minutes to review to the shipping box or product. Repack the unit this manual to ensure the maximum enjoyment of your Anchor in the original box and wait for inspection by the system.

  • Page 2: System Range

    ProLink 500™ Wireless Intercom Owners Manual MADE IN USA DEFINITIONS AND APPLICATIONS TWO YEAR WARRANTY ProLink 500 - wireless duplex intercom system ProLink 500 Network - requires a MASTER belt pack and includes up to three REMOTE belt packs (option of unlimited number of “Listen Only” beltpacks) Channel - A or B channel selection for different applications E x A M P l E 1 - O n e n e t w o r k MASTER...

  • Page 3: Basic Setup And Operation

    Your belt pack is live at all times. BLUETOOTH SETUP 4-PIN XLR headset connector - use Anchor Audio headsets or any 1. Turn ON the BT headset and put it in pairing mode to pair (“CONNECT”) with ProLink 500 beltpack.

  • Page 4: Frequently Asked Questions

    Can someone eavesdrop on my conversation? The proprietary software makes it difficult for anyone to penetrate the wireless network. Newsroom Studio Anchor offers an encrypted model for additional security. Control Room If I break my headset, what do I do? PortaCom The H-2000 and H-2000S headsets are covered by a 2-year warranty.

  • Page 5: Important Safety Instructions

    ProLink 500™ Wireless Intercom Owners Manual MADE IN USA TWO YEAR WARRANTY Important Safety Instructions 15) Outdoor Antenna Grounding – If an outside antenna or cable system is connected to 1) Read Instructions – All the safety and operation instructions should be read before the the product, be sure the antenna or cable system is grounded so as to provide some product is operated.

  • Page 6: Troubleshooting

    Dual: 16 oz. / 0.45 kg FCC ID: J8ZBP-500 Warning: Changes or modifications not expressly approved by Anchor Audio, Inc. (Specifications Subject to Change Without Notice) could void the user’s authority to operate this device. Only use the provided belt-clip.

This manual is also suitable for:

Prolink 500 networkProlink 500Pro-540
