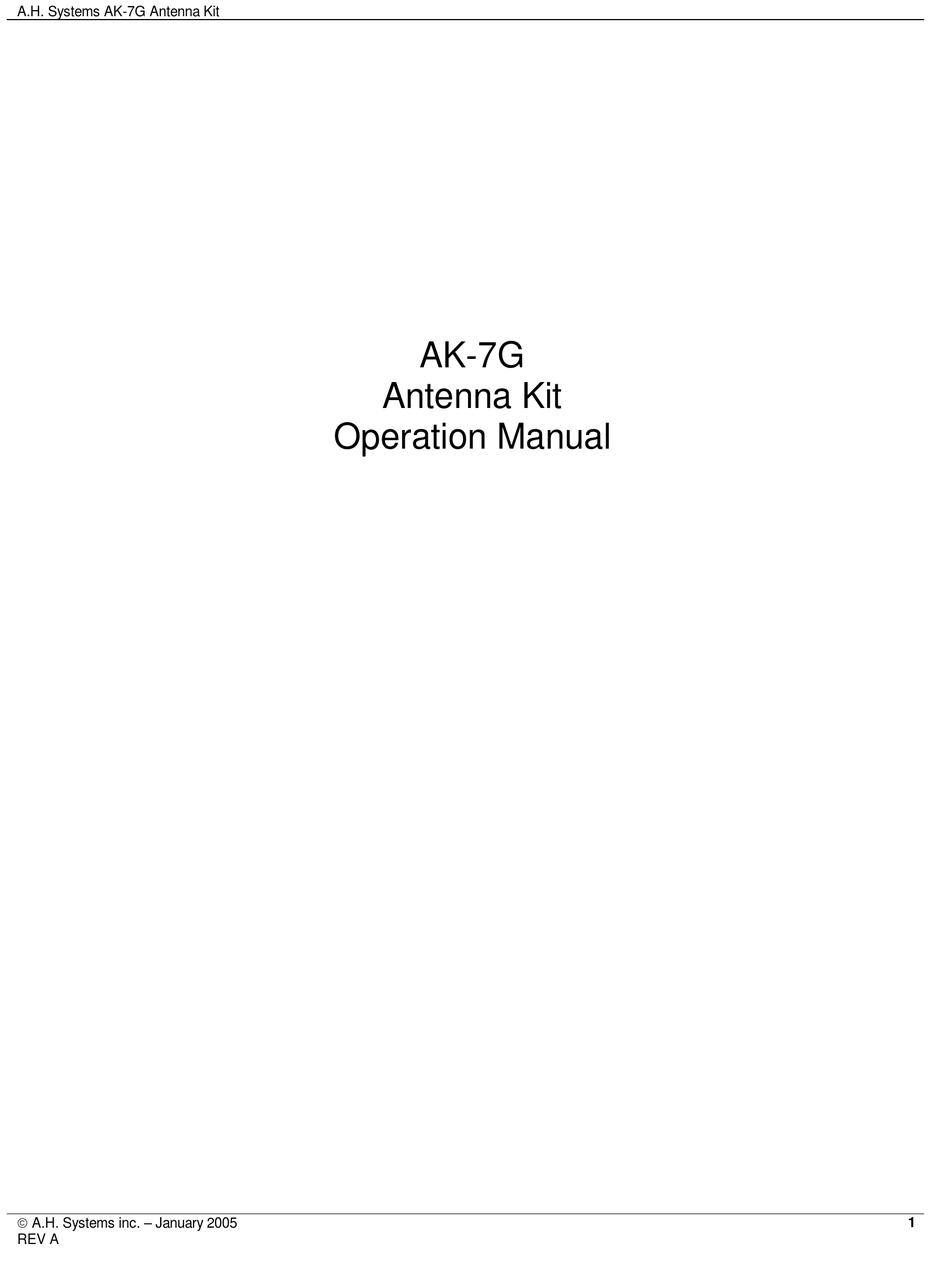

- Page 1 A.H. Systems AK-7G Antenna Kit AK-7G Antenna Kit Operation Manual A.H. Systems inc. – January 2005 REV A...
-
Page 2: Table Of Contents
A.H. Systems AK-7G Antenna Kit TABLE OF CONTENTS WARRANTY INTRODUCTION GENERAL INFORMATION OPTIONAL EQUIPMENT FORMULAS MAINTENANCE A.H. Systems inc. – January 2005 REV A... -
Page 3: Warranty
(3) years. All other products delivered under contract will be warranted for a period of two (2) years. A.H. Systems' obligation under this warranty shall be limited to repairing or replacing, F.O.B. -
Page 4: Introduction
20 KHz – 100 MHz -1 to 1 Attenuation SAC-211 Up to 10 GHz 4.4 dB @ 10 GHz OPTIONAL EQUIPMENT Gain / Attenuation PAM-0207 20 MHz – 7 GHz 30 dB A.H. Systems inc. – January 2005 REV A... -
Page 5: General Information
GENERAL DESCRIPTION The A.H. Systems AK-7G antenna kit series consist of five E-field antennas, one magnetic loop antenna, and two current probes. Each of the antennas and probes are provided with calibrations when connected to a 50 ohm input receiver or spectrum analyzer. - Page 6 Position the probe around the conductor and close the probe. Reconnect the probe latch to ensure that the probe is tightly closed. Connect the probe connector to the receiver with a cable. The probe calibrations supplied are into a 50-ohm receiver. A.H. Systems inc. – January 2005 REV A...
-
Page 7: Optional Equipment
The case is constructed of lightweight and durable polyethylene. Two case keys are provided with the case. OPTIONAL EQUIPMENT The AK-7G case comes with three additional cutouts for optional preamplifiers. In order to improve overall system sensitivity, the following equipment will be required: ... -
Page 8: Formulas
Transfer Impedance: -2.76 dB ohms Cable Loss: 0.1dB Receiver Reading: -33.0dBuV dBA = dBV (from Receiver) - Transfer Impedance (dB) - cable Loss (dB) dBA = -33.0 (-2.76) - 0.1 dBA = -30.14 A.H. Systems inc. – January 2005 REV A... -
Page 9: Maintenance
To ensure reliable and repeatable long-term performance, annual re-calibration of your antennas, preamplifiers and current probes by A.H. Systems experienced technicians is recommended. Our staff can calibrate almost any type or brand of antenna. For more information about our calibration services or to place an order for antenna calibration visit our website at http://www.AHSystems.com or call 1(818) 998-0223.
