Summary of Contents for A.H. Systems AK-26G

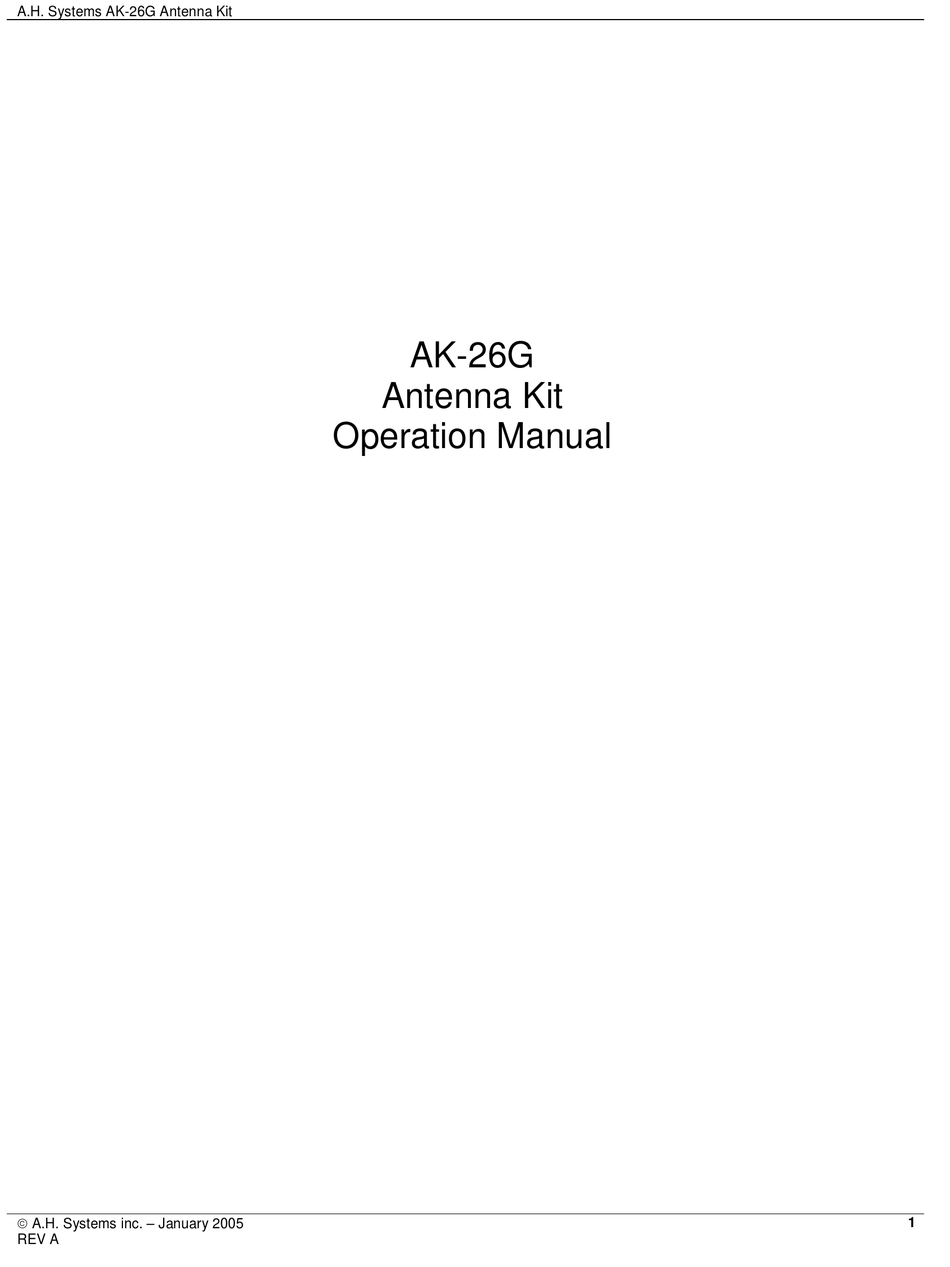

- Page 1 A.H. Systems AK-26G Antenna Kit AK-26G Antenna Kit Operation Manual A.H. Systems inc. – January 2005 REV A...
-
Page 2: Table Of Contents
A.H. Systems AK-26G Antenna Kit TABLE OF CONTENTS WARRANTY INTRODUCTION GENERAL INFORMATION OPTIONAL EQUIPMENT FORMULAS MAINTENANCE A.H. Systems inc. – January 2005 REV A... -
Page 3: Warranty
(3) years. All other products delivered under contract will be warranted for a period of two (2) years. A.H. Systems' obligation under this warranty shall be limited to repairing or replacing, F.O.B. -
Page 4: Introduction
SMA(f) to N(m) ADP-206 (qty 2) Adapter OPTIONAL EQUIPMENT Typical Gain / Attenuation PAM-0126 0.1 GHz – 26 GHz 30 dB SAC-26G-0.5 Up to 26.5 GHz 0.9 dB @ 26.5 GHz A.H. Systems inc. – January 2005 REV A... -
Page 5: General Information

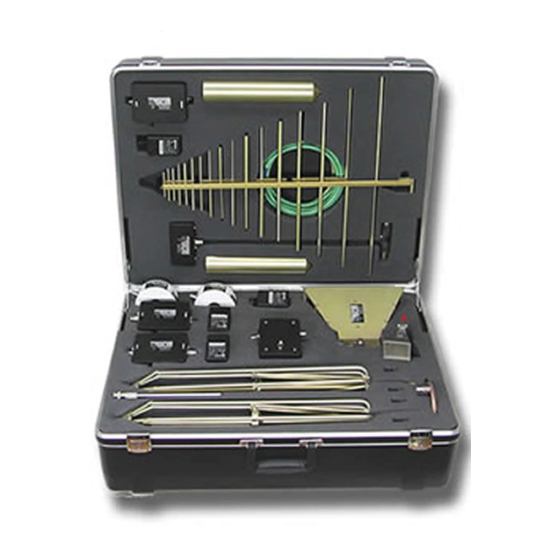

GENERAL DESCRIPTION The A.H. Systems AK-26G antenna kit series consist of five E-field antennas, one magnetic loop antenna, and two current probes. Each of the antennas and probes are provided with calibrations when connected to a 50 ohm input receiver or spectrum analyzer. - Page 6 Operation: The loop antenna is designed to be held by hand and moved around each surface if the EUT to measure magnetic radiation. Connect the antenna via a cable to a receiver with either a 50 ohm input or high A.H. Systems inc. – January 2005 REV A...
-
Page 7: Optional Equipment
Two case keys are provided with the case. OPTIONAL EQUIPMENT The AK-26G case comes with three additional cutouts for optional preamplifiers. In order to improve overall system sensitivity, the following equipment will be required: ... - Page 8 With improved power handling, low VSWR, and high frequency capabilities, the Low-Loss cables can be made to your specified length and delivered in two days. The 1/2 meter SAC-26G-0.5 has a typical attenuation of 0.9 dB at 26.5GHz. A.H. Systems inc. – January 2005 REV A...
-
Page 9: Formulas
Transfer Impedance: -2.76 dB ohms Cable Loss: 0.1dB Receiver Reading: -33.0dBuV dBA = dBV (from Receiver) - Transfer Impedance (dB) - cable Loss (dB) dBA = -33.0 (-2.76) - 0.1 dBA = -30.14 A.H. Systems inc. – January 2005 REV A... -
Page 10: Maintenance
To ensure reliable and repeatable long-term performance, annual re-calibration of your antennas, preamplifiers and current probes by A.H. Systems experienced technicians is recommended. Our staff can calibrate almost any type or brand of antenna. For more information about our calibration services or to place an order for antenna calibration visit our website at http://www.AHSystems.com or call 1(818) 998-0223.
