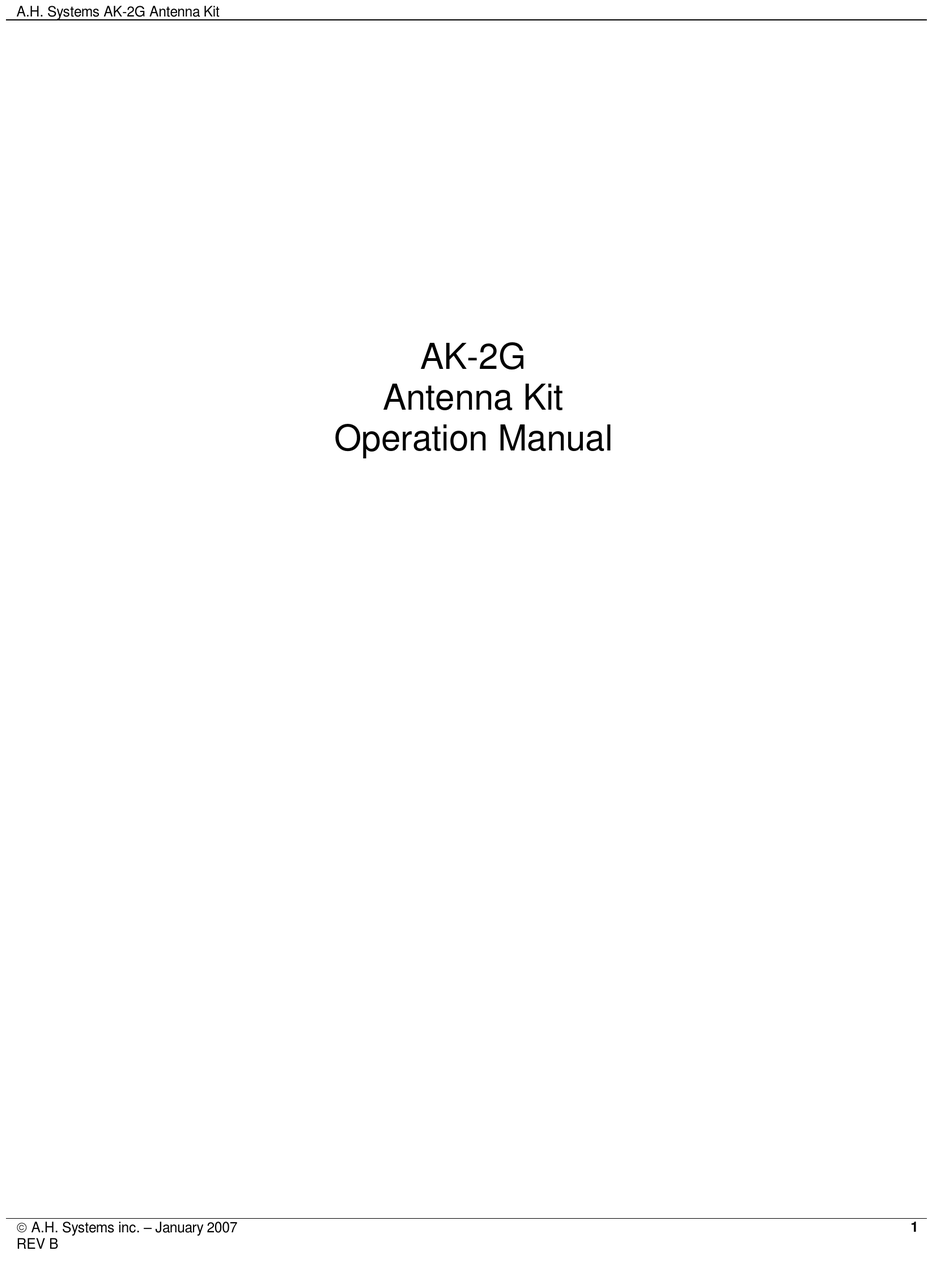

- Page 1 A.H. Systems AK-2G Antenna Kit AK-2G Antenna Kit Operation Manual A.H. Systems inc. – January 2007 REV B...
-
Page 2: Table Of Contents
A.H. Systems AK-2G Antenna Kit TABLE OF CONTENTS WARRANTY INTRODUCTION GENERAL INFORMATION OPTIONAL EQUIPMENT FORMULAS MAINTENANCE A.H. Systems inc. – January 2007 REV B... -
Page 3: Warranty
(3) years. All other products delivered under contract will be warranted for a period of two (2) years. A.H. Systems' obligation under this warranty shall be limited to repairing or replacing, F.O.B. -
Page 4: Introduction
20 KHz – 100 MHz -1 to 1 Attenuation SAC-213 Up to 5 GHz 6.5 dB @ 5 GHz OPTIONAL EQUIPMENT Gain / Attenuation PAM-0202 20 MHz – 2 GHz 31 dB A.H. Systems inc. – January 2007 REV B... -
Page 5: General Information

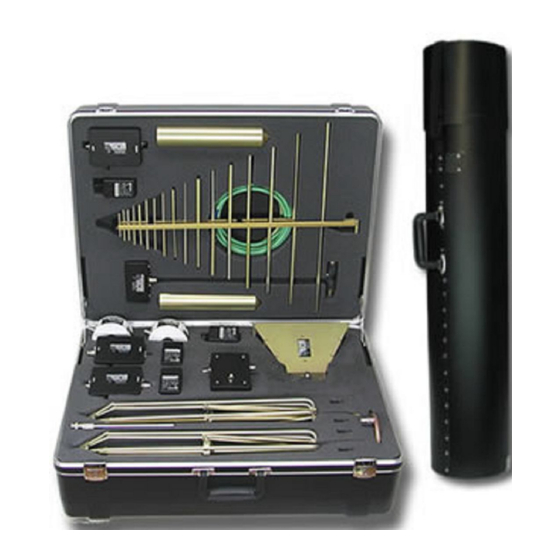

GENERAL DESCRIPTION The A.H. Systems AK-2G antenna kit series consist of five E-field antennas, one magnetic loop antenna, and two current probes. Each of the antennas and probes are provided with calibrations when connected to a 50 ohm input receiver or spectrum analyzer. - Page 6 The tripod and azimuth and elevation head come in their own carrying case. Each tripod leg is independently adjustable in angle and length to facilitate antenna height setting. The tripod legs have a rubber tip on one end for A.H. Systems inc. – January 2007 REV B...
-
Page 7: Optional Equipment
The case is constructed of lightweight and durable polyethylene. Two case keys are provided with the case. OPTIONAL EQUIPMENT The AK-2G case comes with three additional cutouts for optional preamplifiers. In order to improve overall system sensitivity, the following equipment will be required: ... -
Page 8: Formulas
Transfer Impedance: -2.76 dB ohms Cable Loss: 0.1dB Receiver Reading: -33.0dBuV dBA = dBV (from Receiver) - Transfer Impedance (dB) - cable Loss (dB) dBA = -33.0 (-2.76) - 0.1 dBA = -30.14 A.H. Systems inc. – January 2007 REV B... -
Page 9: Maintenance
To ensure reliable and repeatable long-term performance, annual re-calibration of your antennas, preamplifiers and current probes by A.H. Systems experienced technicians is recommended. Our staff can calibrate almost any type or brand of antenna. For more information about our calibration services or to place an order for antenna calibration visit our website at http://www.AHSystems.com or call 1(818) 998-0223.
