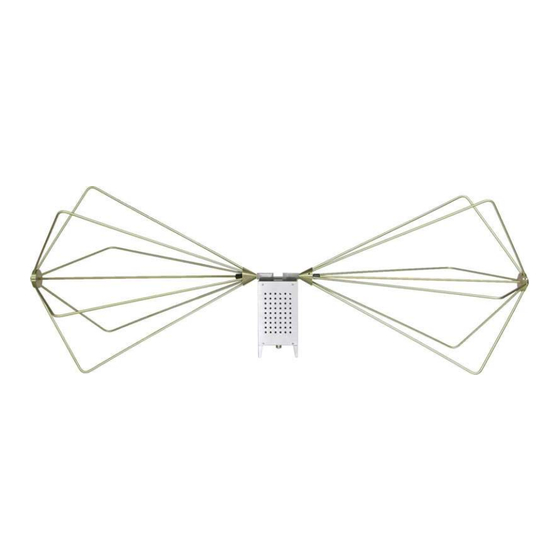

A.H. Systems SAS-543 High Power Biconical Antenna
SAS-543
Biconical Antenna
Operation Manual
 A.H. Systems inc. – May 2014
1
REV C

Advertisement

Table of Contents
loading

Summary of Contents for A.H. Systems SAS-543

  • Page 1 A.H. Systems SAS-543 High Power Biconical Antenna SAS-543 Biconical Antenna Operation Manual  A.H. Systems inc. – May 2014 REV C...
  • Page 2: Table Of Contents

    A.H. Systems SAS-543 High Power Biconical Antenna TABLE OF CONTENTS INTRODUCTION Introduction ......................3 Intended Purposes....................4 Optional Equipment....................5 OPERATING INSTRUCTIONS Assembly Instructions ..................... 6 Mounting Instructions....................6 SPECIFICATIONS Specifications ......................8 Typical Data......................9 Calculations......................10 Convertion Factors....................11 MAINTENANCE Maintenance Procedures ..................12...
  • Page 3: Introduction

    A.H. Systems SAS-543 High Power Biconical Antenna INTRODUCTION The SAS-543 Biconical Antenna is an ideal solution for immunity testing and capable of generating a high fields at lower frequencies. The Biconical antenna has a unique balun design an ideal for IEC 1000-4-3 testing or any other immunity testing. The rugged design of this biconical antenna has an impedance transformation and matching circuit capable of handling 1000 Watts.
  • Page 4: Intended Purposes

    A.H. Systems SAS-543 High Power Biconical Antenna INTENDED PURPOSES The Biconical antenna is intended for general laboratory use in a wide variety of industrial and scientific applications and has been designed to be used in the process of generating, controlling and measuring high levels of electromagnetic Radio Frequency (RF) energy.
  • Page 5: Optional Equipment

    A.H. Systems SAS-543 High Power Biconical Antenna OPTIONAL EQUIPMENT The following is a recommend accessory list for the SAS-543 High Power Biconical Antenna: CONNECTING ACCESSORIES: SAC-211 Standard 3 meter N(m) to N(m) RF cable made with RG-214/U. Other cable types available upon request.
  • Page 6: Operating Instructions

    MOUNTING INSTRUCTIONS The SAS-543 biconical antenna has two 1/4-20 mounting holes on the base of the balun. Attach the antenna to the azimuth and elevation head (AEH-510) through the screw hole in the antenna base. The azimuth and elevation head (AEH-510) mounts to the tripod (ATU-510) top and allows the antennas to be rotated 360 degrees and tilted between horizontal and vertical polarization.
  • Page 7 A.H. Systems SAS-543 High Power Biconical Antenna OPERATING INSTRUCTIONS Once the antenna is mounted to a mast or tripod, connect an N-type coaxial cable from the antenna to a receiver or RF generator. The cable should be matched to 50 ohms, relatively low loss and adequately shielded against leakage such as RG-214/U or better.
  • Page 8: Specifications

    A.H. Systems SAS-543 High Power Biconical Antenna SPECIFICATIONS ELECTRICAL SPECIFICATIONS Frequency Range ...............20 Mhz – 300 MHz Antenna Factor..................7 to 20 dB/m Antenna Gain...................-14 to 3 dBi Impedance (nominal)..................50W Average VSWR................... 2.8:1 typ. Maximum Continuous Power..............1000 Watts Maximum Radiated Field................100 V/m Connector..................
  • Page 9: Typical Data

    A.H. Systems SAS-543 High Power Biconical Antenna TYPICAL DATA  A.H. Systems inc. – May 2014 REV C...
  • Page 10: Calculations

    A.H. Systems SAS-543 High Power Biconical Antenna CALCULATIONS EMISSIONS TESTING Individual calibration data for the log periodic antenna is supplied at appropriate distances (3, and 10 meter) to comply with various emissions test requirements. For emissions measurements, add antenna factor plus cable loss to receiver reading in dBV to convert to field strength in dBV/meter.
  • Page 11: Convertion Factors

    A.H. Systems SAS-543 High Power Biconical Antenna TYPICAL CONVERSION FORMULAS LOG -> LINEAR VOLTAGE FIELD STRENGTH & POWER DENSITY ((dB  V – 120) / 20) dBV to Volts V = 10 dBV/m to V/m V/m = 10 (((dBV/m) -120) / 20) Volts to dBV...
  • Page 12: Maintenance

    ANNUAL CALIBRATION To ensure reliable and repeatable long-term performance, annual re-calibration of your antennas, preamplifiers and current probes by A.H. Systems experienced technicians is recommended. Our staff can calibrate almost any type or brand of antenna. It is always up to the user to determine the appropriate interval for calibration certification based on the requirements of the end users specific test/application.
  • Page 13: Warranty

    A.H. Systems SAS-543 High Power Biconical Antenna WARRANTY INFORMATION A.H. Systems Inc., warrants that our Antennas, Sensors and Probes will be free from defects in materials and workmanship for a period of three (3) years. All other products delivered under contract will be warranted for a period of two (2) years. Damage caused by excessive signals at the product's input is not covered under the warranty.
