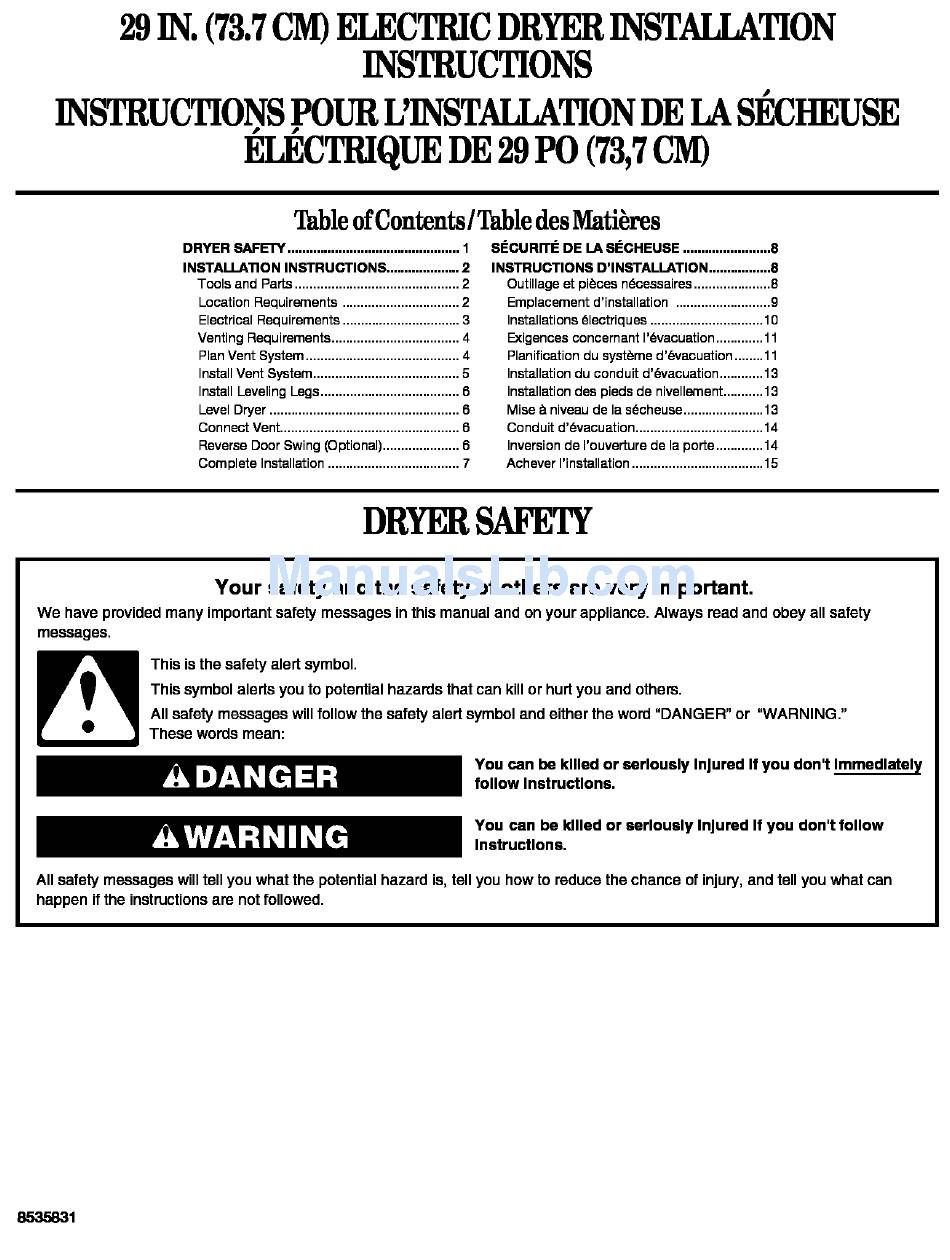

29 IN.(73.7CM)ELECTRIC DRYER INSTALLATION
INSTRUCTIONS
INSTRUCTIONSPOURL'INSTALLATION D E LASECHEUSE
ELECTRIQUE DE 29 PO (73,7CM)
TableofContents/Table des Mati_res
DRYER SAFETY ...............................................
1
INSTRUCTIONS .................... 2
Tools and Parts .............................................
2
................................ 2
Electrical Requirements ................................
3
Venting Requirements ...................................
4
Plan Vent System ..........................................
4
Install Vent System ........................................
5
Install Leveling Legs ......................................
6
Level Dryer ....................................................
6
Connect Vent .................................................
6
Reverse Door Swing (Optional) ..................... 6
Complete Installation ....................................
7
DE LA SECHEUSE ........................ 8
D'INSTALLATION ................. 8
Outillage et pi_ces n_cessaires ..................... 8
Installations _lectriques ............................... 10
I'_vacuation ............. 11
Planification du syst_me d'_vacuation ........ 11
Installation du conduit d'_vacuation ............ 13
Installation des pieds de nivellement ........... 13
Mise _ niveau de la s_cheuse ...................... 13
Conduit d'_vacuation ................................... 14
Inversion de I'ouverture de la porte ............. 14
Achever I'installation .................................... 15
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided
many
important sarety messages
in this manual
and on your appliance.
Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or serlousty Injured If you don't Immedlatel_
follow Instructions.
You can be killed or seriously Injured If you don't follow
Instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
8535831
