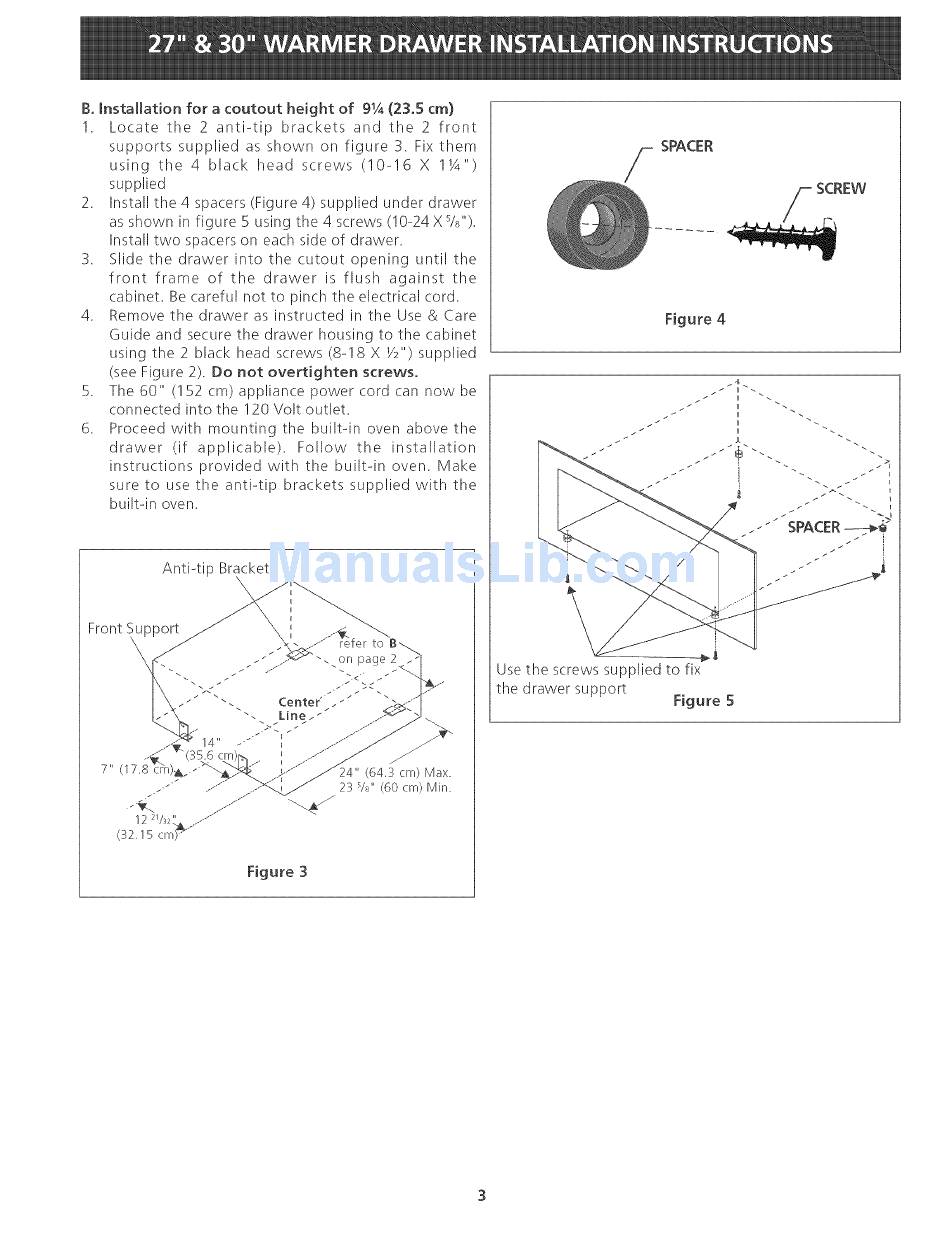

B.[nstaHation for a coutoutheightof 91/4 ( 23.5
cm)
1.
Locate
tile
2 anti-tip
brackets
and the 2 front
supports
supplied
as shown on figure 3. Fix them
using
the 4 black
head screws (10-16
X lY4")
supplied
2.
Install the 4 spacers (Figure 4) supplied under drawer
as shown in figure 5 using the 4 screws (I0-24 X %").
Install two spacers on each side of drawer.
3.
Slide tile drawer into the cutout
opening until the
front
frame
of the drawer
is flush
against
the
cabinet
Be careful not to pinch the electrkal (ord.
4.
Remove the drawer as instructed
in the Use & Care
Guide and secure the drawer housing to the cabinet
using the 2 black head screws (8-18 X Y2") supplied
(see Figure 2). Do not overtighten
screws.
5.
The 60" (152 cm) appliance power cord can now be
connected into the 120 Volt outlet.
6.
Proceed with mounting
the built-in oven above the
drawer
(if
applicable).
Follow
the
installation
instructions
provided
with the built-in
oven. Make
sure to use the anti-tip
brackets supplied with the
built-in oven.
Anti-tip Bracket
Front Su
7"
Figure
3
SPACER
Figure 4
Use the screws supplied to fix
the drawer support
Figure 5
