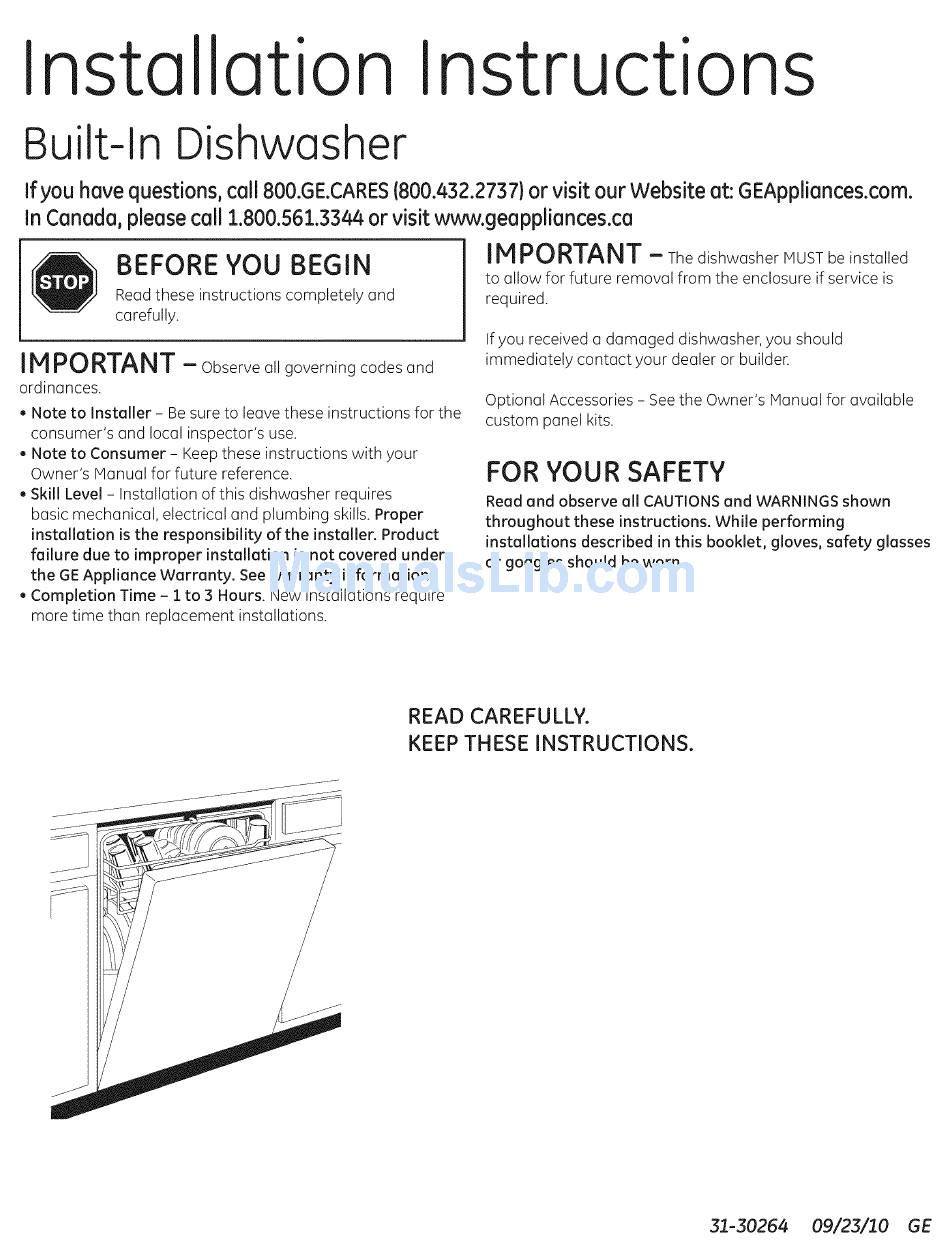

Installation
Instructions
Built-In Dishwasher
If you have questions, call 800.GE.CARES 1 800.432.2737) o r visit our Website at: GEAppliances.com.
In Canada, please call 1.800.561.3344or visit www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
M
PORTANT
- Observeall governing codesand
ordinances.
. Note to Installer - Be sure to leave these instructions for the
consumer's and local inspector's use.
. Note to Consumer - Keep these instructions with your
Owner's Manual for future reference.
. Skill Level - Installation of this dishwasher requires
basic mechanical, electrical and plumbing skills. Proper
installation
is the responsibility of the installer. Product
failure due to improper installation
is not covered under
the GE Appliance Warranty. See warranty information.
. Completion Time - 1 to 2;Hours. New installations require
more time than replacement installations.
I M PORTANT
- The dishwasher MUST be installed
to allow for future removal from the enclosure if service is
required.
If you received a damaged dishwasher, you should
immediately contact your dealer or builder.
Optional Accessories - See the Owner's Manual for available
custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONSand WARNINGS shown
throughout these instructions. While performing
installations
described in this booklet, gloves, safety glasses
or goggles should be worn.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
31-30264
09/23/10
GE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZBD9900R00II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GE ZBD9900R00II

Summary of Contents for GE ZBD9900R00II

  • Page 1 Installation Instructions Built-In Dishwasher If you have questions, call 800.GE.CARES 1 800.432.2737) o r visit our Website at: GEAppliances.com. In Canada, please call 1.800.561.3344or visit www.geappliances.ca I M PORTANT - The dishwasher MUST be installed BEFORE YOU BEGIN to allow for future removal from the enclosure if service is Read these instructions completely and required.

  • Page 2: Tools You Will Need

    Installation Preparation TOOLS YOU WILL NEED: CI Phillips No. 2 screwdriver --__ Level CI Flat blade screwdriver Flat blade Tar× screw-_% CI Torx screwdriver size T 20 screwdriver screwdriver driver size T 20 CI Adjustable wrench CI Open-ended wrench (1/2" [!2 mm] or 5/8" [!6 mm]) CI Measuring tape Adjustable CI Safety glasses...

  • Page 3: Custom Panel

    Installation Preparation DISHWASHER CAVITY MEASUREMENTS ® 90° Cable Hole 2 _/.j/, 1-1/2" Max DIA. 50 -i05mm QQ mm DIA. Make sure the edges of the cable W : 610 mm hole are even to avoid damage to * Actual width of Dishwasher allows for the drain and supply hoses and the installation in a 23-5/8"...
  • Page 4 Installation Preparation Technical Data U.S. Metric Electricity 120V, 60Hz, 15 amp Height (Adjustable) 33-3/4" - 35-3/4" 857 to 908 mm Water pressure: 4.2-140 psi, 0.03-!.0 HPa, Width 23-3/8" 600 mm 0.3-10 Bar Depth (Includes high 22-7/8"* 581 mm Heating element: 1200 watt loop) Max loading...

  • Page 5: Adjusting The Door Springs

    Installation Custom Panel Custom Panel Dimensions Custom Door Panel Dimensions Your new Monogram dishwasher can be installed with a fully Up to 15 Ibs, with unit integrated, buyer supplied custom door panel or Hongram accessory panel that extends from the toe kick to the counter wtnt'"eg": 15-19 Ibs.

  • Page 6: Preparing The Dishwasher

    PREPARING THE DISHWASHER FOR INSTALLATION At this point the styrofoam, plastic wrap, and the wood pallet ADJUSTING THE DOOR SPRINGS (base) should be removed from the dishwasher. Now is an Before you install the unit into the cabinet, open the door excellent time to inspect for any shipping damage.
  • Page 7 WATER SUPPLY A WARNING: Plumbing connections must comply with applicable sanitary, safety and plumbing codes in your area. The machine can be connected to either a hot or cold water supply. If a cold water supply is used, the washing times will be longer but the performance will not be affected.

  • Page 8: Drain Connections

    DRAIN CONNECTIONS THREE WAYS TO INSTALL DRAIN CONNECTIONS GE provides a 7/8" (22 mm) diameter corrugated drain hose which is connected to the back of the unit to form a high loop. If additional drain hose is needed, please purchase a drain...

  • Page 9: Connecting The Water Supply

    CONNECTING THE WATER SUPPLY ELECTRICAL CONNECTIONS In order to prevent heat damage to the inlet valve, all solder WARNING: connections must be made before the water supply line is connected. Before working on wiring for any electrical appliance, be sure the electrical power has been turned off at the breaker/fuse Flush the water supply line prior to connecting it to the water box.
  • Page 10 ELECTRICAL CONNECTIONS (CANT) Grounding Instructions-Power Cord Models ,& WARNING: This appliance must be grounded. In the event of a Do not use an extension cord for this appliance. malfunction or breakdown, grounding will reduce ADVERTENCIA: the risk of electric shock by providing a path of least resistance for electric current.

  • Page 11: Fastening The Dishwasher To The Cabinet

    FASTENING THE DISHWASHER TO THE CABINET NOTE: If the door panel weighs more than !5 pounds, you may need to order the heavy-duty door springs. (Seepage 5.) It's necessary to fasten the dishwasher to the cabinet so it won't tilt when the door is opened or if something heavy is placed on the door.
  • Page 12 LEVEL DISHWASHER Tip: Prevent unnecessary service charges. dishwasher IM PORTANT Verify Dishwasher must be level for proper is leveled. dish rack operation, wash performance and door operation. Pull the dish racks half way out. They should stay put. Open The dishwasher must be leveled left to right and front to back. and close the door.

  • Page 13: Level Dishwasher

    LEVEL DISHWASHER (CONT} 3. Screw in the back foot completely by turning the adjustment screw at the front counterclockwise. Use a flat-bladed or a 1/4 inch nut driver. 4. Push the plastic feet into place on all three steel feet (included in document bag).
  • Page 14 LEVEL DISHWASHER ICONT} 6. Lift the dishwasher (] little at the front and turn the front feet to lower them. 1/8" 7. Check that there is o 1/8 inch (3mm) space be- tween the top of the dishwasher door and the underside of the counter.

  • Page 15: Installing The Toe Kick

    LEVEL DISHWASHER (CONT) 9. Place the spirit level on the dishwasher door to check that the machine is level and adjust if nec- essary. The door must be fully closed! NOTE: The dishwasher must be level! An unlevel machine can affect the amount of water taken in, the door can be difficult to close, and the baskets difficult to place securely.

  • Page 16: Installation Checklist

    INSTALLATION CHECK LIST Appliance Installation Checklist • Remove packaging and check for cosmetic damages. • Remove the information packets from inside the dishwasher. • Attach any accessories as required by the installation. Fill strips, wooden door panels, accessory door panels... •...

  • Page 17: Avant De Commencer

    I'installation correcte de I'appareil. La panne de I'appareil _tanches lors de Pinstallation de cet appareil. due (3une mauvaise installation n'est pas couverte par la garantie GE Electrom_nagers. Veuillez consultez les informations sur la garantie. D_lai d'ex_cution - 1 a 3 heures. Les premieres installations demandent plus de temps que les installations de remplacement.
  • Page 18 Preparation pour I'installation OUTILLAGE NI_CESSAIRE • CI Tournevis cruciforme No. 2 -___._ N ivea u CI Tournevis 6 t_te plate Tourne_e'_ Tournevis Tor-'_ CI Tournevis Torx T 20 plate taille T 20 CI CI_ 6 molette CI CI6 anglaise (!/2po [12 mm] ou 5/8po [16 mm]) CI Ruban 6 mesurer CI6 6 molette CI Lunettes de s6curit6...
  • Page 19 Preparation pour I'installafion MESURE DE L'ENCEINTE DU LAVE-VAISSELLE ® 90° Ouverture pour le 2-4po 50 -!05 mm cablel-1/2po DIA. maxDIA 44 mm Assurez-vous que les bords de • W_6}Omn_ I'ouverture pour le cable soient bien * La largeur r@elledu lave-vaisselle perme_-,_ _,, _ ..

  • Page 20: Installations

    pour I'installation Pr pa ration techniques Donn_es U.S. Metric Electricit6 120V, 60Hz, 15 amp 33-3/4po - 35- Hauteur (ragluble) 857 to 908 mm Pression 4.2-140 psi, 3/4po d'ulimentution : 0.03-1.0 MPG, Lurgeur 23-3/8po 600 mm 0.3-10 Bar Profondeur (Inclut le 581 mm El#ment chuuf- 1200 watt...
  • Page 21 Installation d'un panneau sur mesure Dimensions d'un panneau sur mesure Dimensions d'un panneau de porte sur mesure Votre nouveau lave-vaisselle Monogram peut _tre compl_te- Jusqu% 25 lb. avec I'appareil ment encastr6, install6 avec un panneau de porte sur mesure Commander ou un panneau Honogram qui va de la plinthe au comptoir.
  • Page 22 PRI PARATION DU LAVE-VAISSELLE POUR L'INSTALLATION Retirez la mousse de polystyr6ne, I'emballage plastique et la RE_GLAGE DES RESSORTS DE PORTE palette en bois (base) du lave-vaisselle. Le moment est alors Avant d'installer I'appareil dans son enceinte, ouvrez 16porte id6al pour v6rifier que le lave-vaisselle n'a pas 6t6 endommag6 et 6ssurez-vous qu'elle reste ouverte.
  • Page 23 ALIMENTATION EN EAU ,AVERTISSEM ENT: Les branchements d'eau doivent respecter les codes sanitaires, de s6curit6 et de plomberie en vigueur dans votre r6gion. L'appareil peut _tre branch6 6 une alimentation en eau chaude ou froide. En cas de branchement (_ I'eau froide, le temps de lay- age sera plus long, mais I'el_cacit6 du lave-vaisselle ne sera pas affect6e.

  • Page 24: Tuyau× De Vidange

    BRANCHEMENTS AU SYSTI ME DE VIDANGE TROIS MI_THODES DE BRANCHEMENTS DES GEfournit un tuyau de vidange ondul6 de 7/8 po de diam_- TUYAU× DE VIDANGE tre (22 mm) qui est brunch_ (_I'arri_re du lave-vuisselle pour former une boucle sur61ev6e. Si un tuyuu de vidange sup- A)Connexion typique 6 lu tuyuuterie d'un 6vier event pl6mentuire est n6cessaire, veuillez acheter une extension de...
  • Page 25 BRANCHEMENT BRANCHEMENTS I LECTRIgUES AVERTISSEMENT: L'ALIMENTATION D'EAU Pour 6viter d'endommager le robinet d'alimentation par la Avant de commencer I'installation _lectrique de chaleur, toutes les connexions 6 souder doivent _tre faites tout appareil, assurez-vous d'avoir d@connect_ avant de brancher I'alimentation en eau I'alimentation _lectrique au niveau du disjoncteur Purgez le tuyau d'alimentation en eau avant de le brancher au...
  • Page 26 BRANCHEMENTS ELECTRIQUES (SUITE) Instructions de mJse 6 la terre -ModUles avec un AVERTISSEM ENT: cordon d'alimentation Cet appareil dolt @tremis 6 la terre. En cas de mauvais N'utilisez pas de rallonge avec cet appareil. fonctionnement ou de panne, la mise a la terre r6duit le risque de choc 61ectrique en fournissant au courant 61ectrique un chemin de moindre r6sistance.
  • Page 27 FIXATION DU LAVE-VAISSELLE AUX MEUBLES DE CUISINE REHARQUE: Si le panneau de la porte p_se plus de 15 livms, vous aurez peut-_tre besoin de commander des ressorts de porte plus rdsistants. (Voir page 5). n6cessaire de fixer le lave-vaisselle au meuble de cuisine II est de fa¢on @ce qu'il ne se renverse pas Iors de I'ouverture de la porte or si un objet Iourd est plac6 sur la porte.
  • Page 28 MISE #, NIVEAU DU LAVE-VAISSELLE IM PORTANT- Le tave-vaissette dolt trede niveau Conseil: Evitez des frais de services inutiles. V_rifiez que le lave-vaisselle est de niveau pour un bon fonctionnement de 1'6gouttoir,un lavage Sortez les 6gouttoirs de moiti6, lls devraient rester performant et un bon fonctionnement de l°...
  • Page 29 MISE NIVEAU DU LAVE-VAISSELLE (SUITE) 3. Vissez le pied Grri_re compl_tement en tournGnt IGvis de r6glGge _ I'GvGnt dGns le sens GntihorGire. Utilisez un tournevis _ t6te plGte ou un tournevis douille de 1Apo. 4. Inst(]llez les pieds en plGstique sur les trois pieds en Gcier (fourni dGns IG poche contenGnt les docu- ments).
  • Page 30 MISE _, NIVEAU DU LAVE-VAISSELLE (SUITE) 6. Soulevez 16g_rement I'avant du IGve-vaisselle et faites tourner les pieds avant pour les abaisser. 1/8" 7. V6rifiez qu'il reste un espace de 1/8 po (3 mm) entre le haut du lave-vaisselle et le dessous du comptoir.

  • Page 31: Installation De La Plinthe

    MISE _, NIVEAU DU LAVE-VAISSELLE (SUITE) 9. PIGcez le niveau 8 bulle sur la porte du lave- vaisselle pour v_rifier que I'appareil est de niveau. R_ajustez si n6cessGire. La porte dolt _tre com- pl_tement ferm_e ! RENARQUE: Le lave-vaisselle doit @trede niveau ! Si un appareil n'est pas de niveau, ceci peut avoir un impact sur la quantit@ d'eau utilis@e, la porte peut @tredifficile fermer et les @gouttoirs peuvent @tredifficiles...
  • Page 32 LISTE DE VITRIFICATION D'INSTALLATION Liste de v_rification d'installation de l'appareil • Retirez l'emballage et v_rifiez l'absence de dommages esth_tiques. • Retirez les paquets contenant les manuels de l'int_rieur du lave-vaisselle. ,, Fixez tousles accessoires comme il l°est requis par l'installation. Bandes de rem- plissage, panneaux de porte en bois, accessoires...
