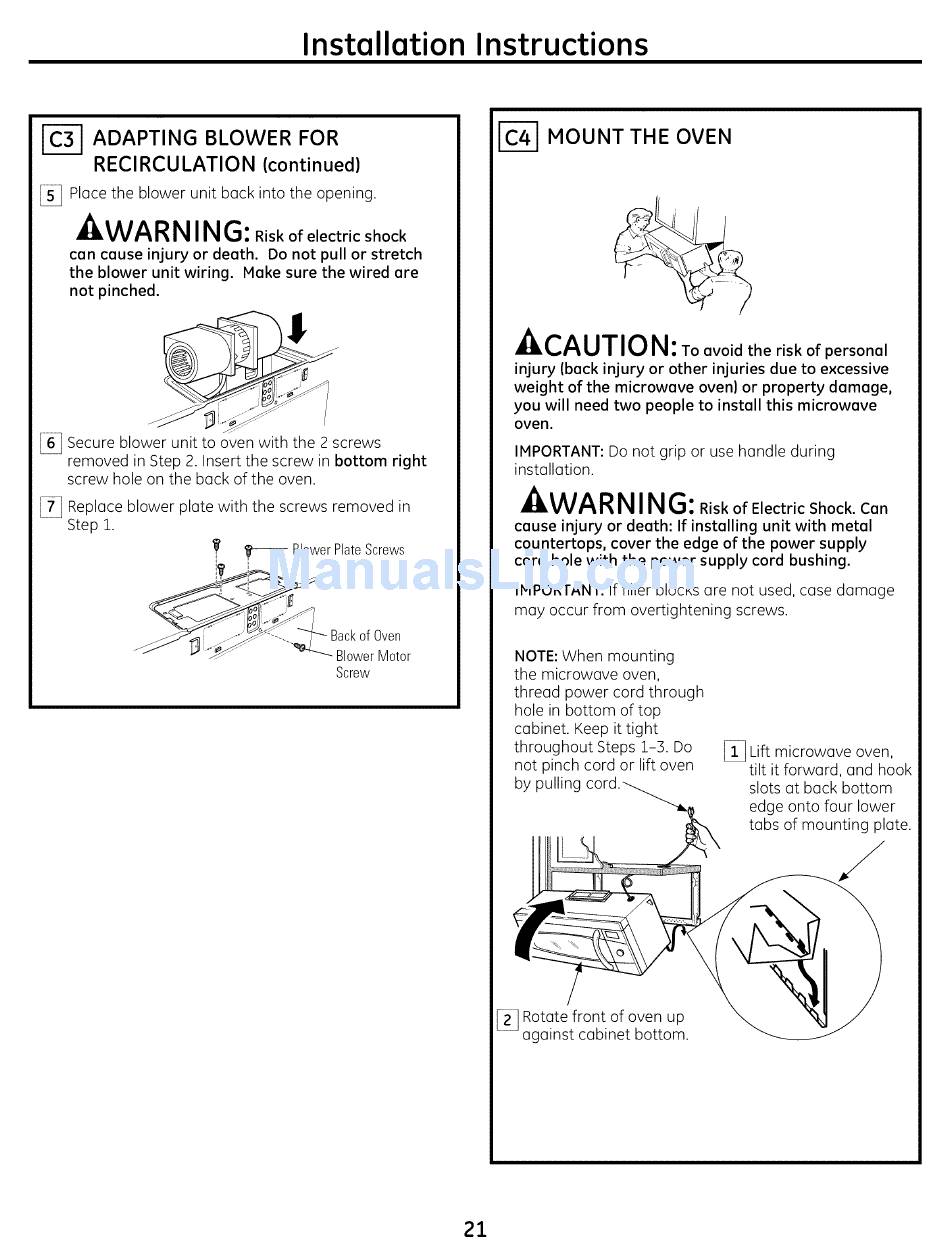

Installation Instructions
| ADAPTING BLOWER FOR
RECIRCULATION (continued)
Place the blower unit back into the opening.
-_ WA R N IN G: Risk of electric shock
con cause injury or death. Do not pull or stretch
the blower unit wiring. Make sure the wired are
not pinched.
16] Secure blower unit to oven with the 2 screws
removed in Step 2. Insert the screw in bottom right
screw hole on the back of the oven.
[_] Replace blower plate with the screws removed in
Step 1.
_ Blower P late Screws
_._ _'<'--. -_ Back of Oven
JJ _ _ _ Blower M otor
Screw
MOUNT THE OVEN
A,...^, ,T,,.._,_,
ltL,/'_U/IU I_1: TO avoid the risk of personel
injury (beck injury or other injuries due to excessive
weight
of the microwave oven) or property
damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use handle during
installation.
-_ WA RN IN G: Risk ofElectric Shock. Con
ceuse injury or death: If instolling unit with metol
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks ore not used, cose domoge
moy occur from overtightening screws.
NOTE: When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
[_ Rotate front of oven up
against cabinet bottom.
21
