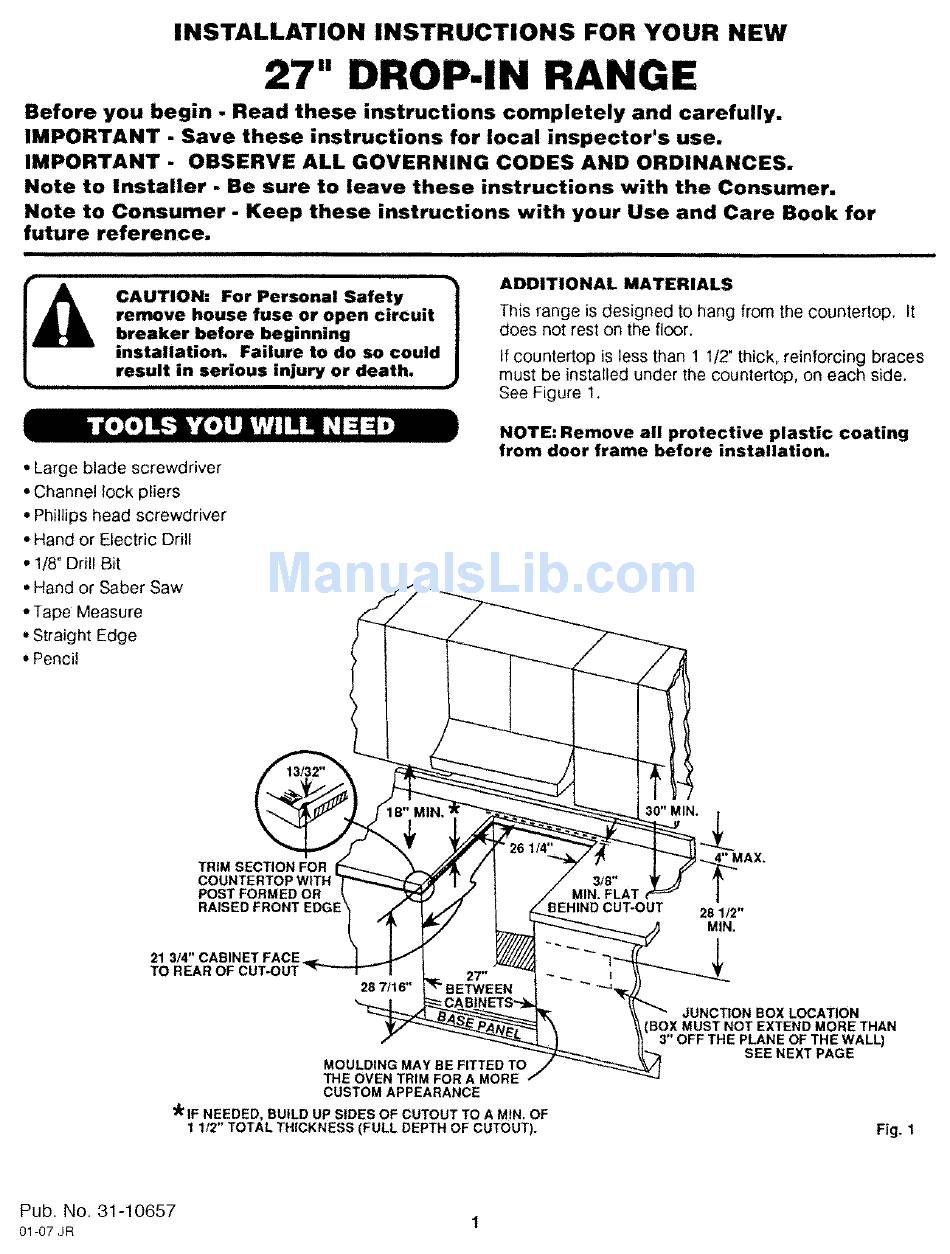

INSTALLATION
INSTRUCTIONS
FOR YOUR
NEW
27" DROP-IN
RANGE
Before
you begin.
Read
these
instructions
completely
and carefully.
IMPORTANT
- Save
these
instructions
for local
inspector's
use.
IMPORTANT
- OBSERVE
ALL GOVERNING
CODES
AND
ORDINANCES.
Note
to Installer
- Be sure
to leave
these
instructions
with
the
Consumer,
Note
to Consumer
- Keep
these
instructions
with
your
Use
and Care
Book
for
future
reference.
CAUTION=
For
Personal
Safety
i
remove
house
fuse
or
open
circuit
J
breaker
before
beginning
installation.
Failure
to do so could
result
in serious
injury
or death.
• Large blade screwdriver
• Channel lock pliers
• Phillips head screwdriver
• Hand or Electric Drill
• 1/8" Drill Bit
• Hand or Saber Saw
• Tape Measure
• Straight Edge
• Pencil
ADDITIONAL
MATERIALS
This range is designed to hang from the countertop,
It
does not rest on the floor.
If countertop is less than 1 1/2" thick, reinforcing
braces
must be installed under the countertop, on each side.
See Figure 1.
NOTE: Remove
all protective
plastic
coating
from door frame
before
installation.
TRIM SECTION FOR i
COUNTERTOP
WITH
POST FORMED OR
RAISED FRONT EDGE
21 3/4" CABINET FACE
TO REAR OF CUTOUT
28 7/16"
MOULDING
MAY BE FITTED TO
THE OVEN TRIM FOR A MORE
CUSTOM APPEARANCE
_tlF NEEDED, BUILD UP SIDES OF CUTOUT TO A MIN. OF
1 1/2" TOTAL THICKNESS
(FULL DEPTH OF CUTOUT).
28 1/2"
MIN.
JUNCTION
BOX LOCATION
BOX MUST NOT EXTEND MORE THAN
3" OFF THE PLANE OF THE WALL)
SEE NEXT PAGE
Fig. 1
Pub. No. 31-10657
01-07 JR
1
