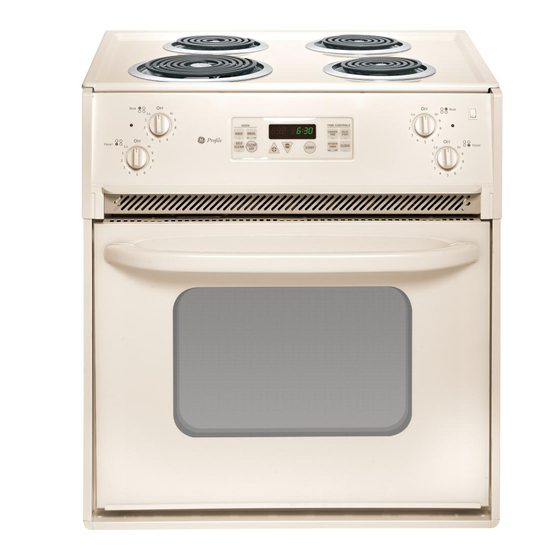

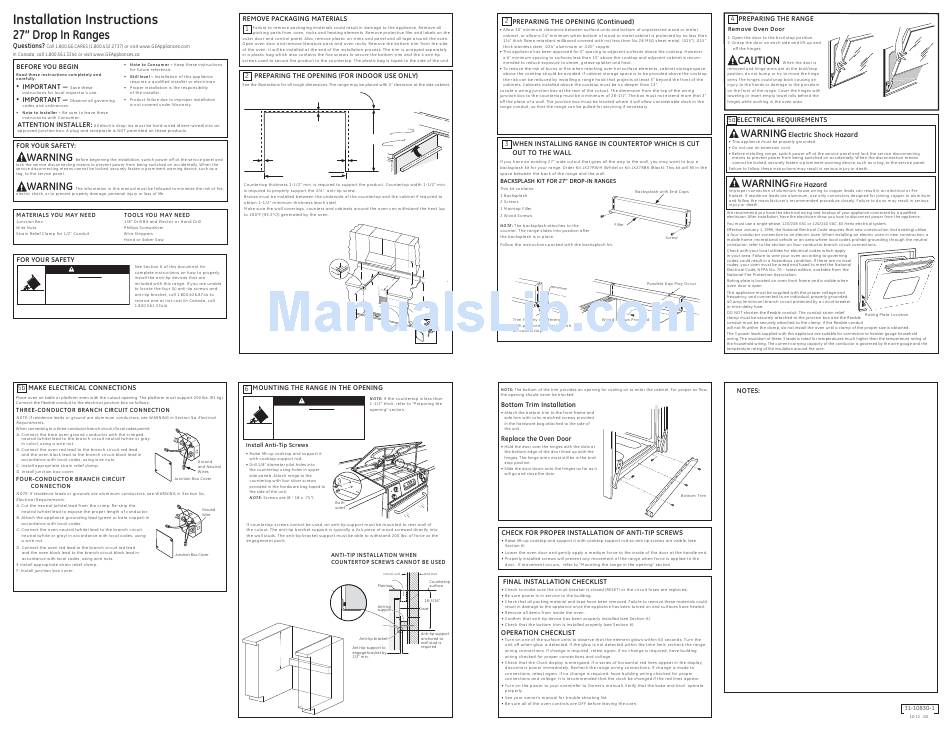

GE JMP31CLCC Installation Instructions

WARNING
Tip-Over Hazard
A child or adult can tip the range and be killed.
Install the anti-tip device (screws or bracket) per
instruction below.
Re-engage the anti-tip bracket if the range is moved.
Failure to follow these instructions can result in death or
serious burns to children or adults.
Wall
Range support
3/8" min.
flat
25" Countertop
typically
9/16" min. 9/16" min.
flat flat
Brace
26-1/4" smooth cut
13/32"
30" MIN.
18" Min.
*
This range is designed
21-3/4" CABINET 4" MAX.
TRIM SECTION FOR
to hang from the counter
FACE TO REAR OF
COUNTERTOP WITH
CUT-OUT
POST FORMED OR
top. It does not rest on the
RAISED FRONT EDGE
cabinet. The range must not 28-1/2"
MIN.
be installed on a floor or sub
27"
structure (2" x 4" support) 28-7/16"
BETWEEN
CABINETS
JUNCTION BOX LOCATION
(BOX MUST NOT EXTEND MORE THAN
3" OFF THE PLANE OF THE WALL)
MOULDING MAY BE FITTED TO
THE OVEN TRIM FOR A MORE
CUSTOM APPEARANCE
WARNING
Tip-Over Hazard
A child or adult can tip the range and be killed.
Install the anti-tip device (screws or bracket) per
instruction below.
Re-engage the anti-tip bracket if the range is moved.
Failure to follow these instructions can result in death or
serious burns to children or adults.
18-3/16" from
countertop to
anti-tip support
Do not install
screws here
