GE Profile JMP31BLBB Dimensions And Installation Information

JMP31WC/CL/BL
GE Profile 27" Drop-In Electric Range
™
Dimensions and Installation Information (in inches)
KW Rating
240V
9.8
208V
7.3
Note: Cabinets installed adja-
cent to drop-in ranges must
have an adhesion spec of at
least 194° temperature rating.
Optional Backguard
(Available at additional cost)
JX27RBK (Black)
JX27RWH (White)
JX27RCD (Bisque)
Note: All 27" Drop-In Electric
Ranges conform to U.L.
requirements for minimum
spacing between range and side
walls below countertop.
Installation Information:
Before installing, consult
installation instructions
packed with product for
current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
or
™
service,
27" Drop-In Ranges

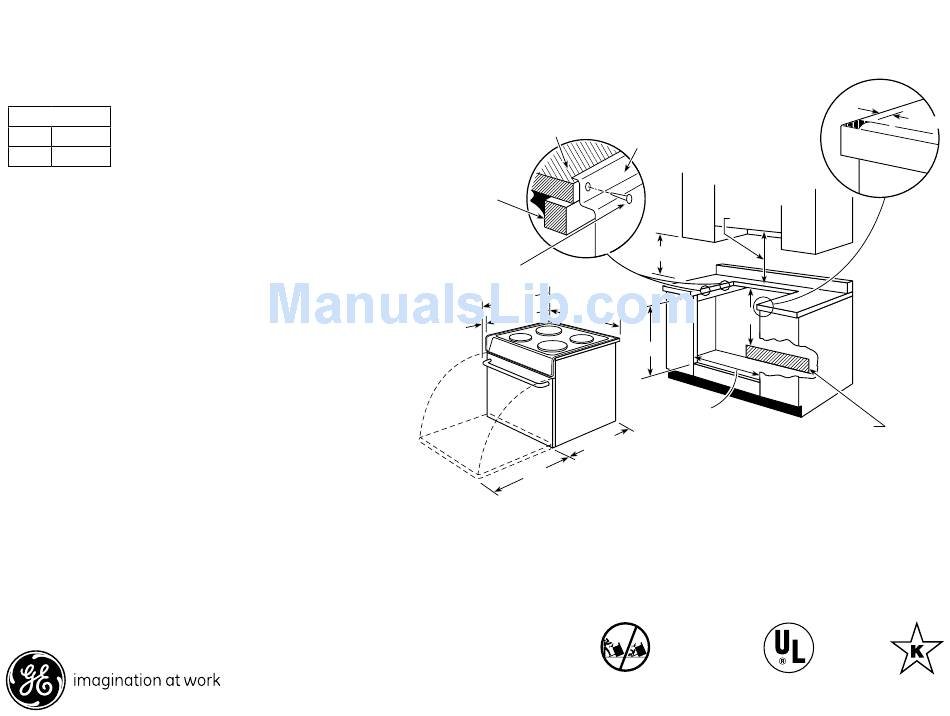

Dimensions (in inches)
Important: This range is designed to hang from the
countertop. It does not rest on the floor.
Countertop
If necessary, build up
sides to 1-1⁄2" thick to
provide screw
anchor surface and
countertop support
These screws are
anti-tip devices
and must be installed
in the front and rear
24-3/16
22-3/16
27-1/8
2
22-3/16
20
Door
clearance
Spacemaker 27" Drop-In Electric Ranges
TM
(Pub. 1-G003 pg 103) May 11, 1993
type enlarged 8/03 -km
Trim section for
countertop with
post formed
or raised
Range side
front edge
support
30" MIN. to
bottom of
cabinet
over
range
18
28-1/2"
MIN.
28-7/16
27" Between
cabinets
Locate junction box
anywhere in shaded area
Conduit is 48-1/2" long
Back of range
to front of
closed door
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 4/06
13/32
Adjoinin
vertical
cabinet
or wall
above
countert
3" MIN.
(Both si
*If count
dimensio
In replac
