Summary of Contents for Genie ZD2812IR
-

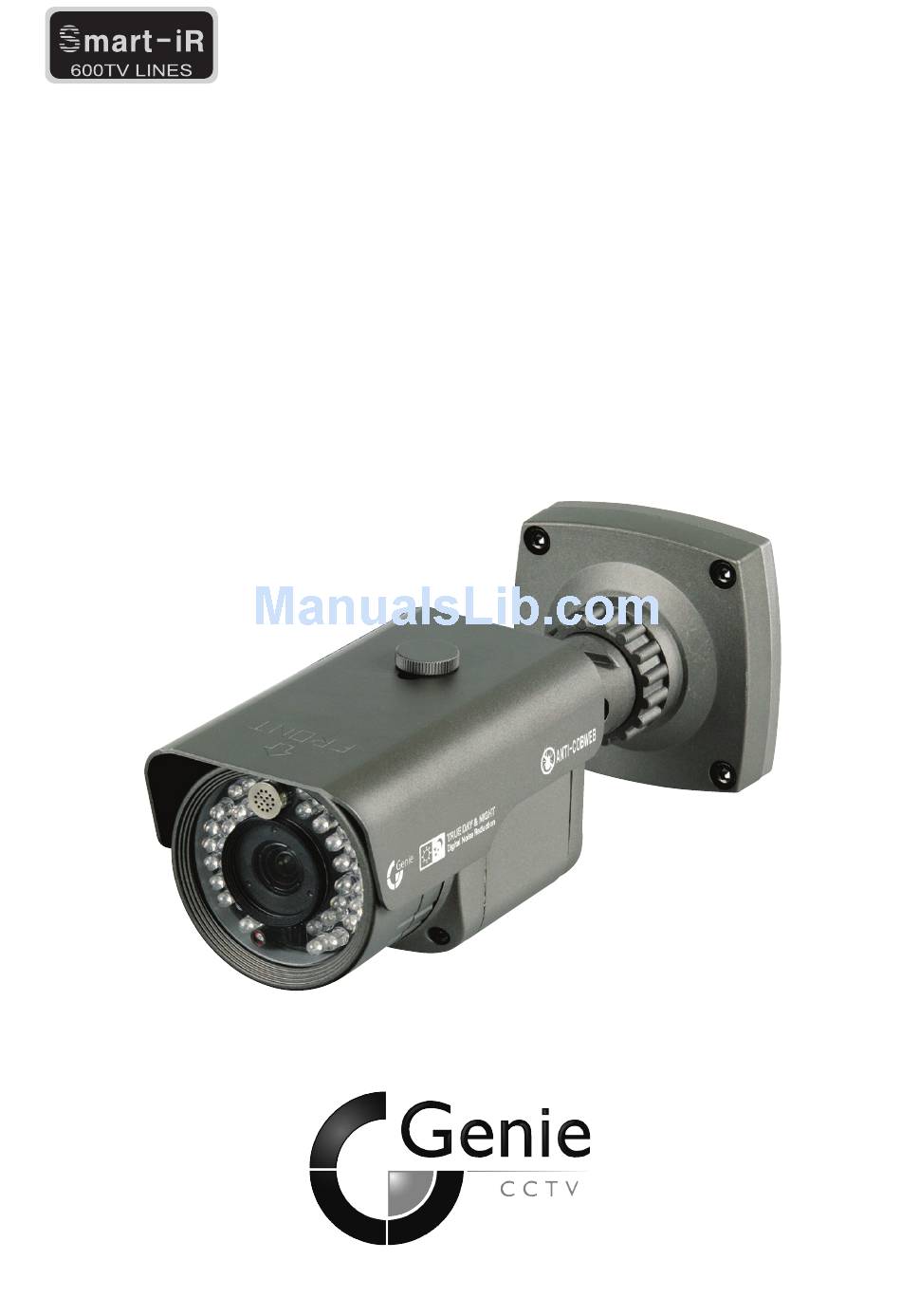

Page 1: User Manual
USER MANUAL ULTRA HIGH RESOLUTION TRUE DAY/NIGHT ANTI-COBWEB CAMERA ZD2812IR/ACW... - Page 2 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
- Page 3 Precautions Do not install the camera in Do not install or use the camera in an Do not install the camera under extreme temperature conditions. environment where the humidity is high. unstable lighting conditions. Only use the camera in conditions Do not install or use the camera in an Severe lighting change or flicker can where temperatures are between...
-
Page 4: Camera Osd Control
Weather DC 12V / AC 24V LENS Resolution Hood Camera Registant Function SPECIFICATIONS ZD2812IR/ACW MODEL Sensor 1/3” Sony Super HAD CCD ll NTSC=811(H) * 508(V) / PAL=795(H) * 595(V) Total Pixels NTSC=768(H) * 494(V) / PAL=752(H) * 582(V) Effective Pixels... -
Page 5: Table Of Contents
Contents Contents About 3D - DNR / Smart - IR Safety Instructions General Features Menu Set Up OSD Control Button ▶ Set Up Menu ▶ Menu Set Up ▶ Lens ▶ Exposure ▶ Back Light ▶ White Bal. ▶ Day & Night ▶... -
Page 6: About 3D - Dnr / Smart - Ir
About Smart-IR/D-WDR/BLC/3D DNR(600TVL) Core Technology Smart-IR Smart 256X Multi Sens-up Language New Smart-HD DSP Chipset Ensures 600TVL Ultra High Resolution. D&N Innovative Technology of Powerful Sens Up under Ultra Low Light Level : Min. Illumination 0.00001 Lux 600TVL Smart-i HD DSP is the 3rd generation core chipset actualizing 600TVL ultra high resolution! Backlight Compensation Smart-i... -
Page 7: Safety Instructions
Safety Instructions Precautions for use ☞ Please read this manual thoroughly before using the camera to become familiar with the correct operational procedures. Cautions When Using ☞ Do not open the camera body and touch any electrical parts to avoid possible electric shocks. ☞... -
Page 8: General Features
3D-DNR General Features 3D-DNR 3D-DNR 3D-DNR Digital 3D-DNR 3D Filtering Method of Newly Advanced DNR Function Noise Reduction 3D-DNR Digital ☞ Newly developed 3D filtering enhances Digital Noise reduction at low light levels. 3D Filtering of 3D-DNR Noise Digital Reduction Noise Digital 3D-DNR... -
Page 9: Menu Set Up
OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) -
Page 10: Setup Menu
How to Set Up the camera menu Setup Menu ●... -
Page 13: Menu Set Up
Menu Set Up Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT COLOR 5.3DNR 6.SPECIAL... -
Page 14: Lens
3. Change menu settings using the Left or Right button. * Available values or Status are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed. 4. After Changing the setting move the arrow indicator to EXIT and press the SET button to EXIT. -
Page 15: Exposure
NOTE * When DC is selected, the brightness can be adjusted. The brightness control range is 1 ~ 100. Lens BRIGHTNESS RETURN 3. Press the RETURN to return to the SETUP menu. Exposure This function is used to select Automatic or Manual shutter speed control. 1. - Page 16 EXPOSURE SHUTTER AUTO MIDDLE SENS-UP AUTO D-WDR RETURN NOTE *Shutter: Select Shutter using the Up or Down button, you can adjust the shutter speed from 1/60, FLK, 1/250~1/100,000. →FLK: Select FLK mode if flickering occurs; caused by the unmatched frequency of electric light.
-
Page 17: Back Light
* RETURN: Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu. NOTE * Pressing the SET button in AUTO mode allows adjustment of image brightness by increasing or decreasing the shutter speed (x2 ~x256). * The higher the level, the brighter the image becomes, but it is possible that an after image (ghosting) could appear. - Page 18 POSITION SIZE PICTURE 1 PICTURE 2 * HSBLC: HSBLC function is especially effective for reading car number plates at the night time. You can select and define the required observation area for the target object and ignore a strong light area. Press the "ENTER"...
- Page 19 HSBLC OFF HSBLC ON * D-WDR: This camera which is using 3D-DNR DSP provides intelligent light level control to overcome even strong backlight conditions. →OFF: D-WDR function does not operate. When there are simultaneous bright & dark image area WDR makes them both distinct and can be selected as OUTDOOR and INDOOR.
-
Page 20: White Bal
White Balance The White Balance function is used to control the “on-screen” colours. 1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the Left or Right button. SETUP 1.LENS 2.EXPOSURE... -
Page 21: Day & Night
Day / Night Picture can be displayed in either colour of black and white. 1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET... - Page 22 IR SMART GAIN SIZE AREA RETURN AREA SMART IR OFF SMART IR ON → AUTO: The mode will automatically switches to COLOUR in normal condition and switches to BW mode when ambient illumination is low. Press the SET button to set the switching time or D→N(AGC), N→D(AGC) in AUTO mode. DAY &...
-
Page 23: 3Dnr
3DNR 3DNR is used to reduce the level of background noise in a low luminance environment. 1. Move the arrow indicator to 3DNR by using the Up and Down button. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET... -
Page 24: Special
Special When the SETUP menu screen is displayed, select SPECIAL using the Up and Down buttons. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT Select one of the mode using the Up and Down button. SPECIAL 1. - Page 25 NOTE * When CAMERA TITLE is set to OFF, the CAMERA TITLE is not displayed on the monitor. 1-3) Press the SETUP button. CAMERA TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z →...
- Page 26 NOTE * In cases where the wrong Camera ID has been input..Move the cursor to CLR and press SETUP button to erase characters from left to right, and repeat the above steps to input the characters again. 1-5) To select the position where the Camera ID should be displayed on the screen. ①...
-
Page 27: D-Effect
③ Select a new position by using the four C A M 1 directional button, Press the SET button to confirm the position. 2. D - EFFECT Move the cursor to D-EFFECT and press the SET button to set the other image functions. D-EFFECT FREEZE MIRROR... - Page 28 * V-FLIP : Flip the image vertically on the screen. * ROTATE : Flip the horizontal image vertically on the screen. * OFF : Disabled. MIRROR ON MIRROR OFF 2-2) D - ZOOM: Digital zoom available, range x1 ~ x32. PAN : The pan range can be controlled between -10 ~ + 100 TILT : The tilt range can be controlled between -10 ~ + 100 D-ZOOM...
-
Page 29: Motion
2-3) FREEZE : Image freezing or moving image. 2-4) NEG. IMAGE : ON : Activates negative image just like film OFF : Normal image 2-5) RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu. 3. -
Page 30: Privacy
4. PRIVACY Hide an area you want to hide on the screen. 4-1). When the SPECIAL menu screen is displayed, press the Up and Down buttons to set to PRIVACY. PRIVACY AREA SELECT AREA1 AREA DISPLAY COLOR RETURN POSITION SIZE 4-2). -
Page 31: Defect
③ Move the arrow indicator to COLOUR to select the desired colour of each area cells by using the Left / Right button to select between the 15 different colour. RETURN : Move the arrow indicator to RETURN after completing the setup to return to SPECIAL menu. 4-3) SYNC : INT (Internal Synchronisation) Move the arrow indicator to RETURN after complete the setup to return to SETUP menu. -
Page 32: Adjust
ADJUST 1. When the SETUP menu screen is displayed, select ADJUST using the Up and Down buttons. SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT 2. Select the desired mode by using Up or Down button.. ADJUST SHARPNESS MONITOR... -
Page 33: Reset
RESET Resets the camera settings to the factory defaults. SETUP RESET 1.LENS FACTORY 2.EXPOSURE RETURN 3.WHITE BAL 4.DAY / NIGHT AUTO 5.3DNR 6.SPECIAL 7.ADJUST 8.RESET 9.EXIT EXIT Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu. SETUP 1.LENS 2.EXPOSURE... -
Page 34: Trouble Shooting
Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required. - Page 35 ▶ MEMO...
- Page 36 Edition : GN July 2012...
