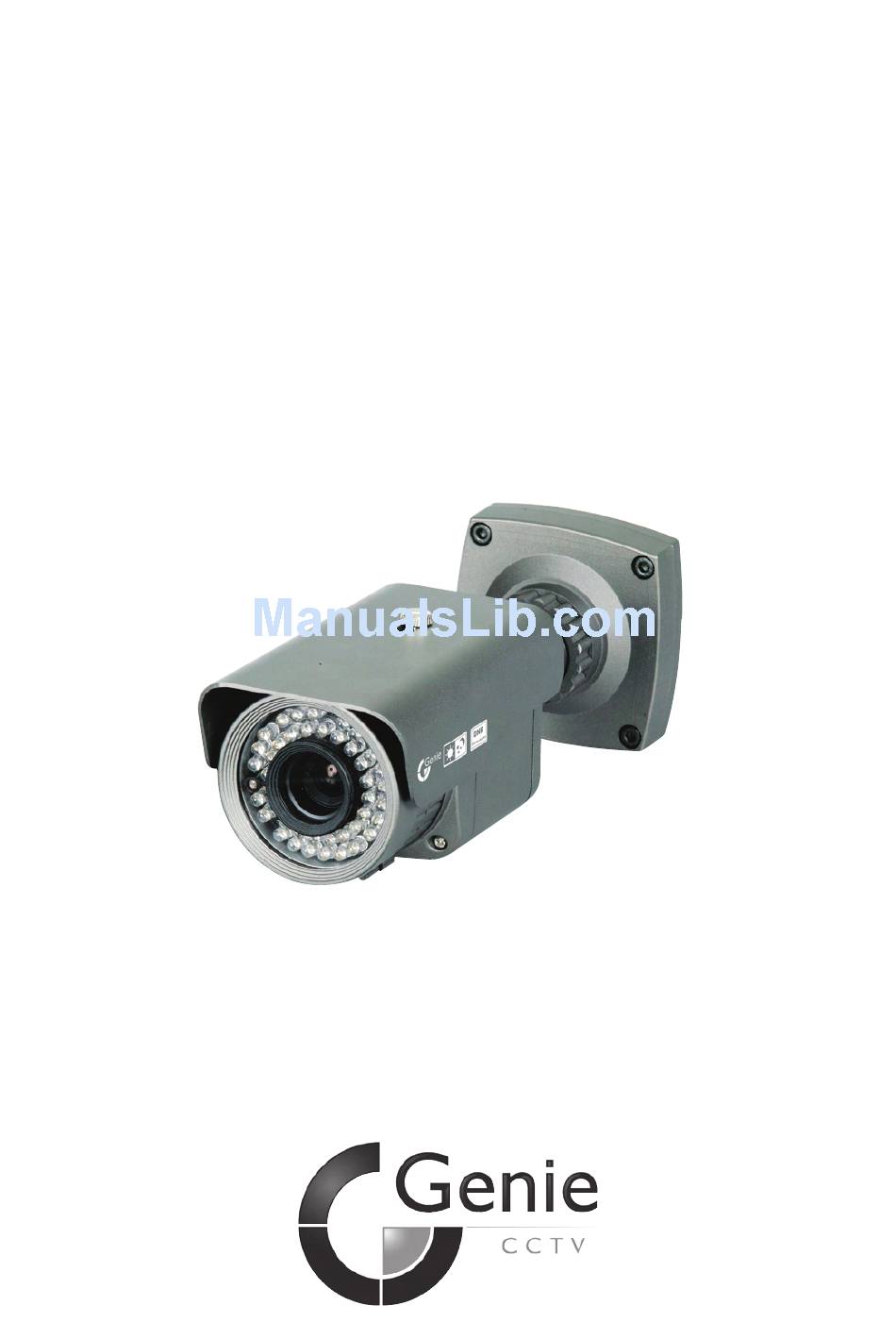

- Page 1 USER MANUAL DNR TRUE DAY&NIGHT CAMERA ZD49IR...
-
Page 2: Table Of Contents
Contents Specification Installation How To Install Safety Instruction General Features Menu Set Up ► Lens ► Shutter Speed ► White Balance ► Back Light(BLC) ► Auto Gain Control ► DNR ► Sens - Up ► Special ♦ Camera ID ♦ Colour ♦... -
Page 4: Camera Operation
The IR range shown below are maximum distances that can be achieved using this camera. The environment and camera positioning both affect IR performance. CAMERA TITLE WHITE BAL BACKLIGHT ◈ SETTINGS MOTION DET FOCUS D-ZOOM EXPOSURE SENS-UP Settings can be made using the OSD buttons SPECIAL PRIVACY RESET... -
Page 5: Camera Adjustment
DC Auto Iris Varifocal Lens (4mm-9mm) * Camera Adjustment ① Connect Video & Power Line (AC 24V or DC 12V Regulated Power) ② Position the camera for the correct angle of view. ③ Loosen the locking screws and focus the camera. ④... -
Page 6: Installation
Precautions for use Please read this manual thoroughly before using this camera to become familiar with the correct ☞ operational procedures. Warranty This camera is supplied with three year warranty effective from the day of purchase on a return to ☞... - Page 7 DNR DSP Chip ◈ Our DNR DSP chipset provides powerful functions and high resolution both Day and Night. Functions include selectable white balance, selectable AGC, selectable Digital Noise Reduction, Sens-Up, Camera ID, Privacy Zones, Mirror and Sharpness. 560TV Lines ◈ The combination of DNR Technology and Sony Super HAD CCD image sensor gives an excellent high resolution of 560 TV Lines.
-
Page 8: Menu Set Up
CAMERA OPERATION (SET-UP DOWN LEFT RIGHT) LENS ●DC ●MANUAL SHUTTER ●FLK ●MANUAL ●ESC (Condition & Speed Control) ●ATW ●AWC ●MANUAL WHITE BALANCE ●OFF ●LOW ●MIDDLE BACK LIGHT (Backlight Compensation) ●HIGH ●OFF ●LOW ●MIDDLE (Auto Gain Control) ●HIGH ●OFF ●LOW ●MIDDLE (Digital Noise Reduction) ●HIGH SENS-UP... -
Page 9: Sens-Up
2. Move and Select the required function using the Up and Down buttons. ● Move the status bar to select the desired feature by pressing the Up or Down buttons. SETUP LENS SHUTTER -------- WHITE BAL BACKLIGHT HIGH MIDDLE SENS-UP AUTO SPECIAL EXIT... -
Page 10: Special
SETUP LENS SHUTTER -------- WHITE BAL BACKLIGHT HIGH MIDDLE SENS-UP AUTO SPECIAL EXIT DC:DC Auto IRIS Lens NOTE ● When DC is selected, the brightness can be adjusted. Brightness control range is I - 70. L E N S BRIGHTNESS I---------I---------I 70 Press Set to Return 3. - Page 11 This function is used to select Automatic or Manual shutter speed control. I. On the Set Up menu screen, move the arrow indicator to SHUTTER using the Up or Down button. 2. Select the desired shutter mode using the Left or Right button. ◈...
- Page 12 The White Balance function is used to control the “on screen” colours. I. Move the arrow indicator to WHITE BAL on the SETUP Menu screen using the Up or Down button. 2. Select the desired mode by using the Left or Right button. SETUP LENS SHUTTER...
- Page 13 This camera provides intelligent light level control to overcome even strong backlight conditions. I. Move the arrow indicator to BACKLIGHT using the Up or Down button on the SETUP Menu screen. 2. Select the desired level using the Left or Right button. SETUP LENS SHUTTER...
- Page 14 1. Move the arrow indicator to AGC using Up or Down button on the SETUP Menu screen. 2. Select the desired level using the Left or Right button. AGC controls image brightness. A higher gain increases brightness but also increases any noise. ●...
- Page 15 DNR is used to reduce the level of “noise” on the screen. I. Move the arrow indicator to DNR using the Up or Down button on the SETUP Menu screen. 2. Select the desired level of noise reduction using the Left or Right button. ●...
-
Page 16: Sen-Up
Good quality images can be displayed even in low lighting levels, using the Sens-Up function. I. Move the arrow indicator to SENS-UP by pressing the Up or Down button on the SETUP Menu screen. 2. Select the desired setting using the Left or Right button. ●... -
Page 17: Camera Id
1. Move the arrow indicator to 'SPECIAL' using the UP or Down button on the SETUP Menu screen. 2. Select the desired mode using the Left or Right button. SPECIAL CAMERA ID COLOUR SYNC MOTION DET PRIVACY MIRROR SHARPNESS RESET RETURN ●... - Page 18 4) The Camera ID can be up to 15 alphanumeric characters in length. ① Move the cursor to choose an alphanumeric character. CAMERA ID ABCDEFGHIJKLM NOPQRSTUVWXYZ abcdefghijklm nopqrstuvwxyz , 0 1 2 3 4 5 6 7 8 9 ← → CLR POS END ▀...
-
Page 19: Colour
② Created camera ID is displayed. CAM 1 (Factory default position) ③ Select a new position by using the four directional buttons. Press the SET button to confirm the position. 6) Move the cursor to END and press the SET button after completing the above process. ●... -
Page 20: Sync
● SYNC: INT : Internal Synchronisation ● MOTION DETECTION(MD): Whenever the camera detects motion it displays “Motion Detected” and incremental count on the screen. -. Press the SETUP button. OFF: Disabled ON: Selected AREA will sense detected MOTION. -. AREA SEL defines the selected MOTION DETECTION detection area for the camera. -
Page 21: Privacy
● PRIVACY: Masks on-screen areas for PRIVACY. -. Press the SETUP button. OFF: Disabled ON: Activated -. AREA SEL is used to select the desired PRIVACY ► AREA SEL AREA1 masking area for the camera. Set ON AREA STATE selected AREA state. AREA TONE I---------I---------I 50 I---------I---------I 31... -
Page 22: Sharpness
● SHARPNESS: Improves image clarity. The level is adjusted to obtain an improved image.When level is set too high it can distort the image or cause noise. The sharpness can be adjusted between I to 31. SHARPNESS LEVEL I---------I---------I 15 Press Set to Return ●... - Page 23 PROBLEM POSSIBLE CAUSE ☞ Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞ Are the camera lens or the lens glass dirty? Clean the lens /glass with a soft clean cloth. The image on the ☞...
- Page 24 Edition : GN October 2010...
