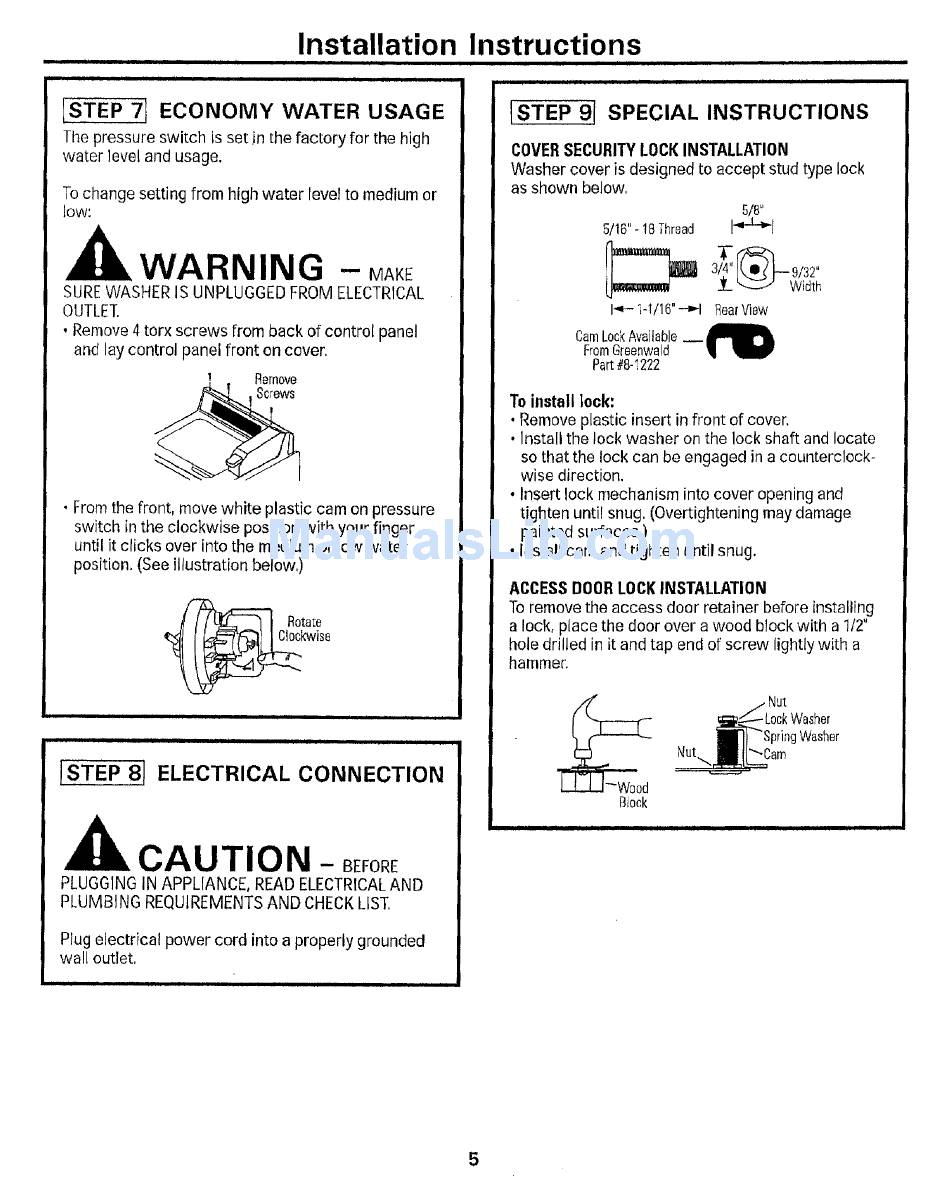

Installation Instructions
= = = = i
ISTEP 71 ECONOMY WATER USAGE
The pressure sw tch s set n the factory for the high
water level and usage,
To change setting from high water level to medium or
low:
WARNING - MA*E
SUREWASHER IS UNPLUGGED FROM ELECTRICAL
OUTLET.
• Remove 4 torx screws from back of control panel
and lay control panel front on cover.
Remove
. From the front, move white plastic cam on pressure
switch in the clockwise position with your finger
[STEP 9] SPECIAL INSTRUCTIONS
COVERSECURITYLOCK INSTALLATION
Washer cover is designed to accept stud type lock
as shown below,
5/16"-t8 Thread
518"
!-*-L_f
I_- i-1/16"-"-I %arVbw
Cam Lock Available .__
From Greenwald
11mF
Part#8-I222
To install lock:
• Remove plastic insert in front of cover,
• Install the lock washer on the lock shaft and locate
so that the lock can be engaged in a counterclock-
wise direction.
• Insert lock mechanism into cover opening and
tighten until snug. (Overtightening may damage
painted surfaces.)
until it clicks over into the medium or low water
position, (See illustration below,)
RotaLe
kwise
i iJ i
i ii i i i i
ISTEP 81 ELECTRICAL CONNECTION
CAUTION - BEFORE
PLUGGING IN APPLIANCE, READ ELECTRICALAND
PLUMBING REQUIREMENTS AND CHECKLIST,
Plug electrical power cord into a properly grounded
wall outlet.
• Install cam and tighten until snug,
ACCESSDOORLOCKINSTALLATION
To remove the access door retainer before installing
a lock, place the door over a wood block with a t/2"
hole drilled in it and tap end of screw lightly with a
hammer.
_-Wood
Bock
Nut
Lock Washer
_) -SpringWasher
Nut_,,._l,._am
