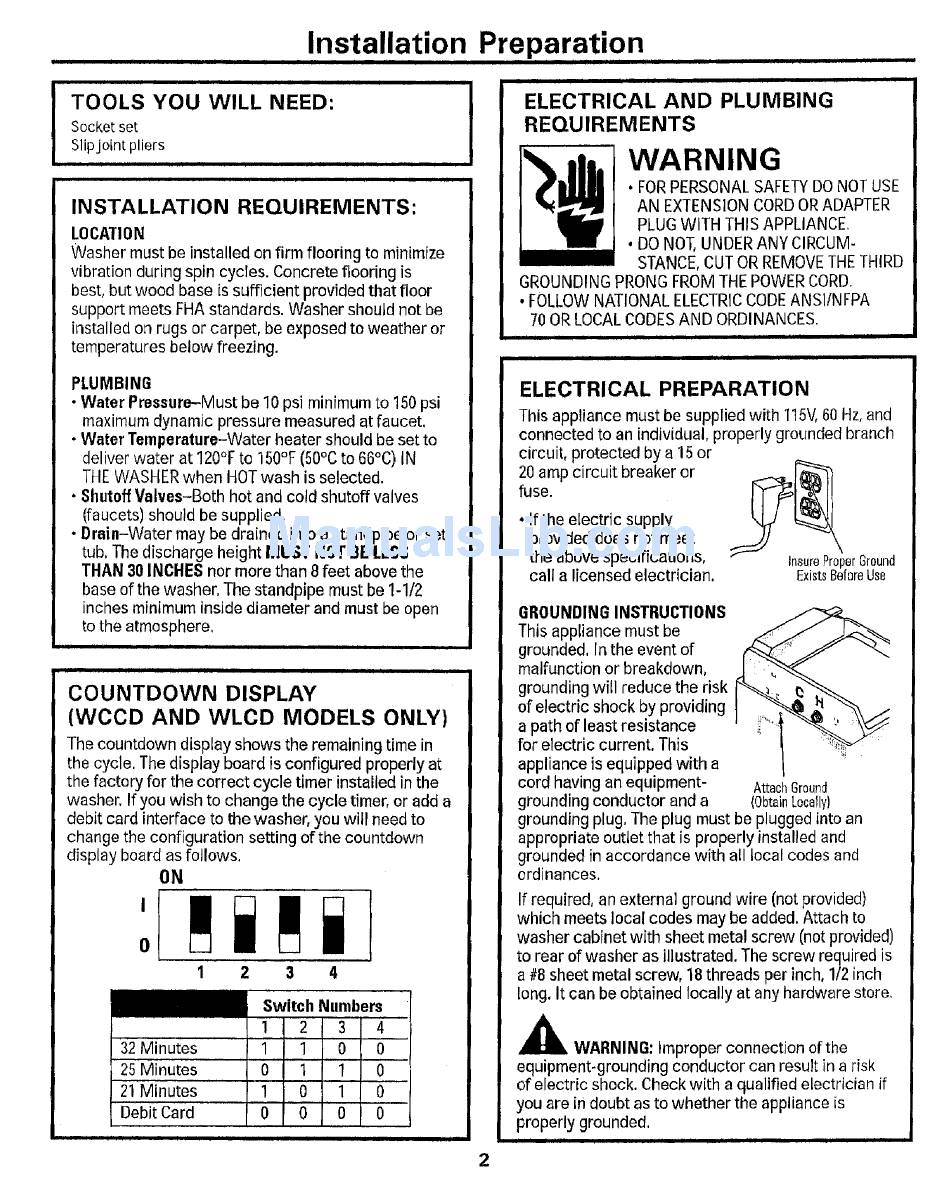

GE WNRD2050G0WC Installation Instructions Manual page 2

TOOLS YOU WILL NEED:
Socket set
Slip]oint pliers
i i i i
Installation Preparation
i i i ] i
i i i i
ELECTRICAL AND PLUMBING
REQUIREMENTS
INSTALLATION REQUIREMENTS:
LOCATION
Washer must be installed on firm flooring to minimize
vibration during spin cycles. Concrete flooring is
best, but wood base [s sufficient provided that floor
support meets FHA standards. Washer should not be
installed on rugs or carpet, be exposed to weather or
temperatures below freezing.
PLUMBING
• Water Pressure-Must be 10 psi minimum to 150 psi
maximum dynamJc pressLire measured at faucet.
• Water Temperature-Water heater should be set to
deliver water at 120°F to 150% (50°C to 66°C) IN
THE WASHER when HOT wash is selected.
• Shutoff Valves-Both hot and cold shutoff valves
(faucets) should be supplied.
• Drain-Water may be drained into a standpipe or set
tub. The discharge height MUST NOT BE LESS
THAN 30 INCHES nor more than 8 feet above the
base of the washer. The standpipe must be 1-1/2
inches minimum inside diameter and must be open
to the atmosphere.
i i i
COUNTDOWN DISPLAY
(WCCD AND WLCD MODELS ONLY)
The countdown display shows the remaining time in
the cycle. The display board is configured properly at
the factory for the correct cycle timer installed in the
washer. If you wish to change the cycle timer, or add a
debit card interface to the washer, you will need to
change the configuration setting of the countdown
display board as follows.
ON
1 2 3 4
32 Minutes
25 Minutes
21 Minutes
Debit Card
i i
Switch Numbers---]
1 1 0 0 '
0 1
1 0 10 _
o 0
i
iii
i.iq
i
WARNING
• FORPERSONAL SAFETYDO NOT USE
AN EXTENSION CORDORADAPTER
PLUG WiTH THIS APPLIANCE.
• DO NOT, UNDER ANY CIRCUM-
STANCE, CUT OR REMOVE THE THIRD
GROUNDING PRONG FROM THE POWER CORD,
• FOLLOW NATIONAL ELECTRICCODE ANSIINFPA
70 OR LOCAL CODES AND ORDINANCES.
i i i i ii i
ELECTRICAL PREPARATION
This appliance must be supplied with 115V,60 Hz, and
connected to an individual, properly grounded branch
circuit, protected by a 15 or
20 amp circuit breaker or
fuse.
• If the electric supply
provided does not meet
the above specifications,
call a licensed electrician.
Insure Proper Ground
Exists B efare U se
GROUNDING INSTRUCTIONS
This appliance must be
grounded. In the event of
malfunction or breakdown,
grounding will reduce the risk
of electric shock by providing
a path of least resistance
for electric current. This
appliance is equipped with a
cord having an equipment- Attach Groun_l
grounding conductor and a (Obtain L ocally)
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
If required, an external ground wire (not provided)
which meets local codes may be added. Attach to
washer cabinet with sheet metal screw (not provided)
to rear of washer as illustrated. The screw required is
a #8 sheet metal screw, 18 threads per inch, 1/2 inch
long. It can be obtained locally at any hardware store,
,_ WARNING: improper connection of the
equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician if
you are in doubt as to whether the appliance is
properly grounded.
