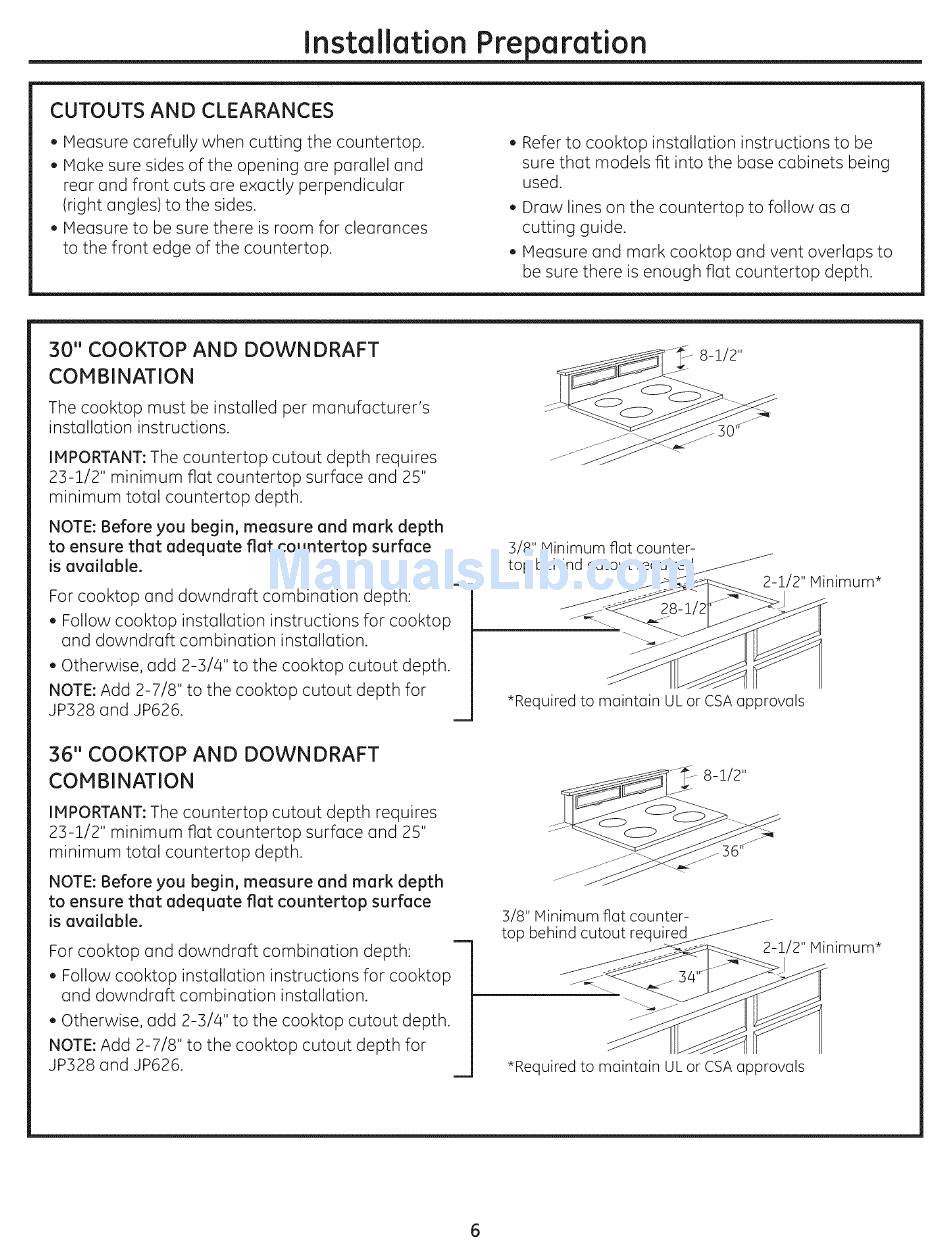

Installation Preparation
CUTOUTS AND CLEARANCES
, Measure carefully when cutting the countertop.
, Make sure sides of the opening are parallel and
rear and front cuts are exactly perpendicular
(right angles) to the sides.
, Measure to be sure there is room for clearances
to the front edge of the countertop.
, Refer to cooktop installation instructions to be
sure that models fit into the base cabinets being
used.
, Draw lines on the countertop to follow as a
cutting guide.
, Measure and mark cooktop and vent overlaps to
be sure there is enough fiat countertop depth.
30" COOKTOP AND DOWNDRAFT
COMBINATION
The cooktop must be installed per manufacturer's
installation instructions.
IMPORTANT: The countertop cutout depth requires
25-1/2" minimum fiat countertop surface and 25"
minimum total countertop depth.
NOTE: Before you begin, measure and mark depth
to ensure that adequate fiat countertop surface
is available.
For cooktop and downdraft combination depth:
, Follow cooktop installation instructions for cooktop
and downdraft combination installation.
, Otherwise, add 2-5/4" to the cooktop cutout depth.
NOTE: Add 2-7/8" to the cooktop cutout depth for
JP328 and JP626.
3/8" Minimum fiat counter-
top behind cutout required
*Required to maintain UL or CSAapprovals
Minimum*
36" COOKTOP AND DOWNDRAFT
COMBINATION
IMPORTANT: The countertop cutout depth requires
23-1/2" minimum fiat countertop surface and 25"
minimum total countertop depth.
NOTE: Before you begin, measure and mark depth
to ensure that adequate fiat countertop surface
is available.
For cooktop and downdraft combination depth:
, Follow cooktop installation instructions for cooktop
and downdraft combination installation.
, Otherwise, add 2-5/4" to the cooktop cutout depth.
NOTE: Add 2-7/8" to the cooktop cutout depth for
JP328 and JP626.
jo/J o j
3/8" Minimum fiat counter-
top behind cutout requirec
*Required to maintain UL or CSAapprovals
Minimum*
