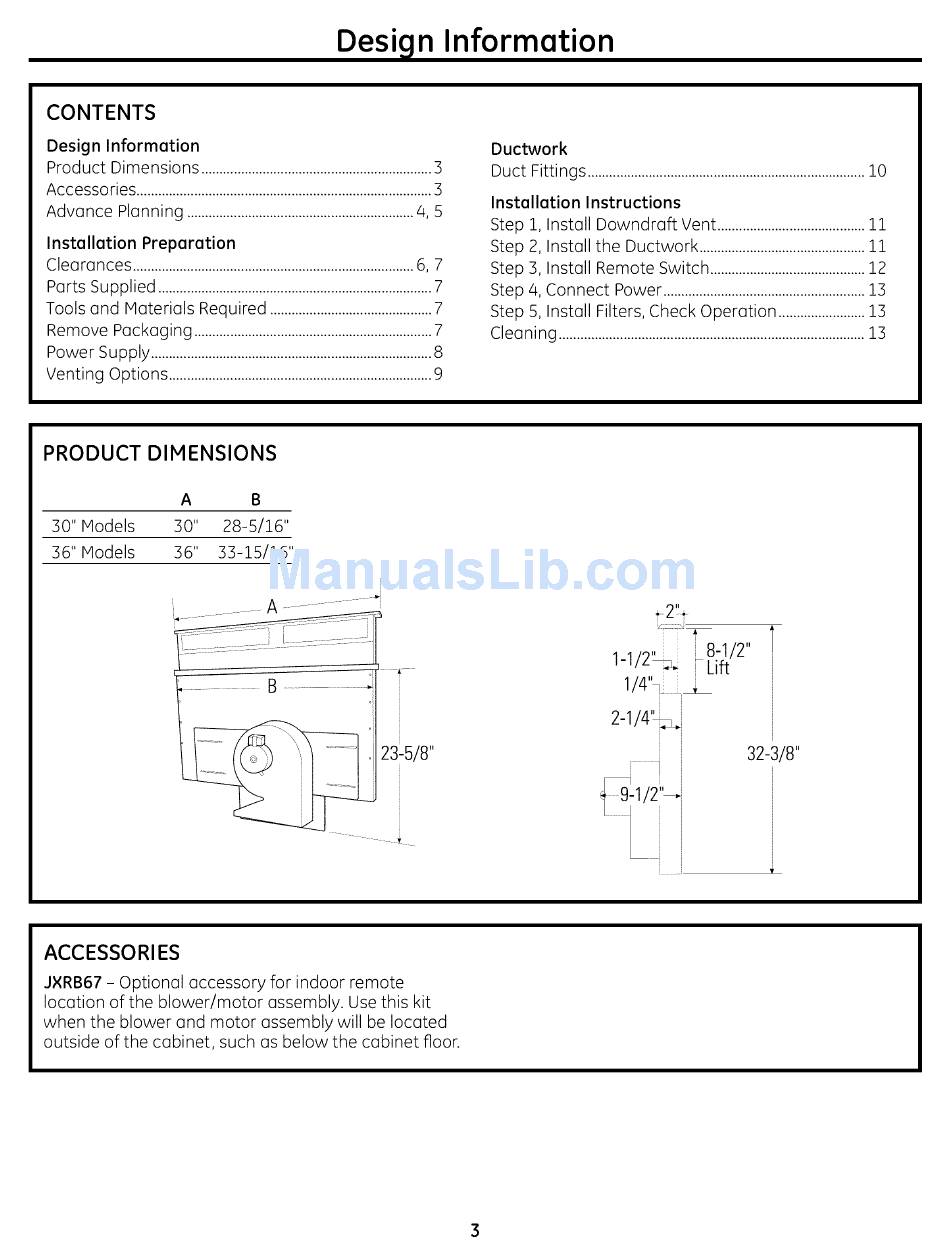

PRODUCT DIMENSIONS
A B
30" Models 30" 28-5/16"
36" Models 36" 33-15/16"
......... A .......................
............ B .......................... _i
[
t
23-5/8"
1-1/2_ 8-1/2"
Lift
1/4" _
2-1/4'_i
32-3/8"
ACCESSORIES
J×RB67 - Optional accessory for indoor remote
location of the blower/motor assembly. Use this kit
when the blower and motor assembly will be located
outside of the cabinet, such as below the cabinet floor.
