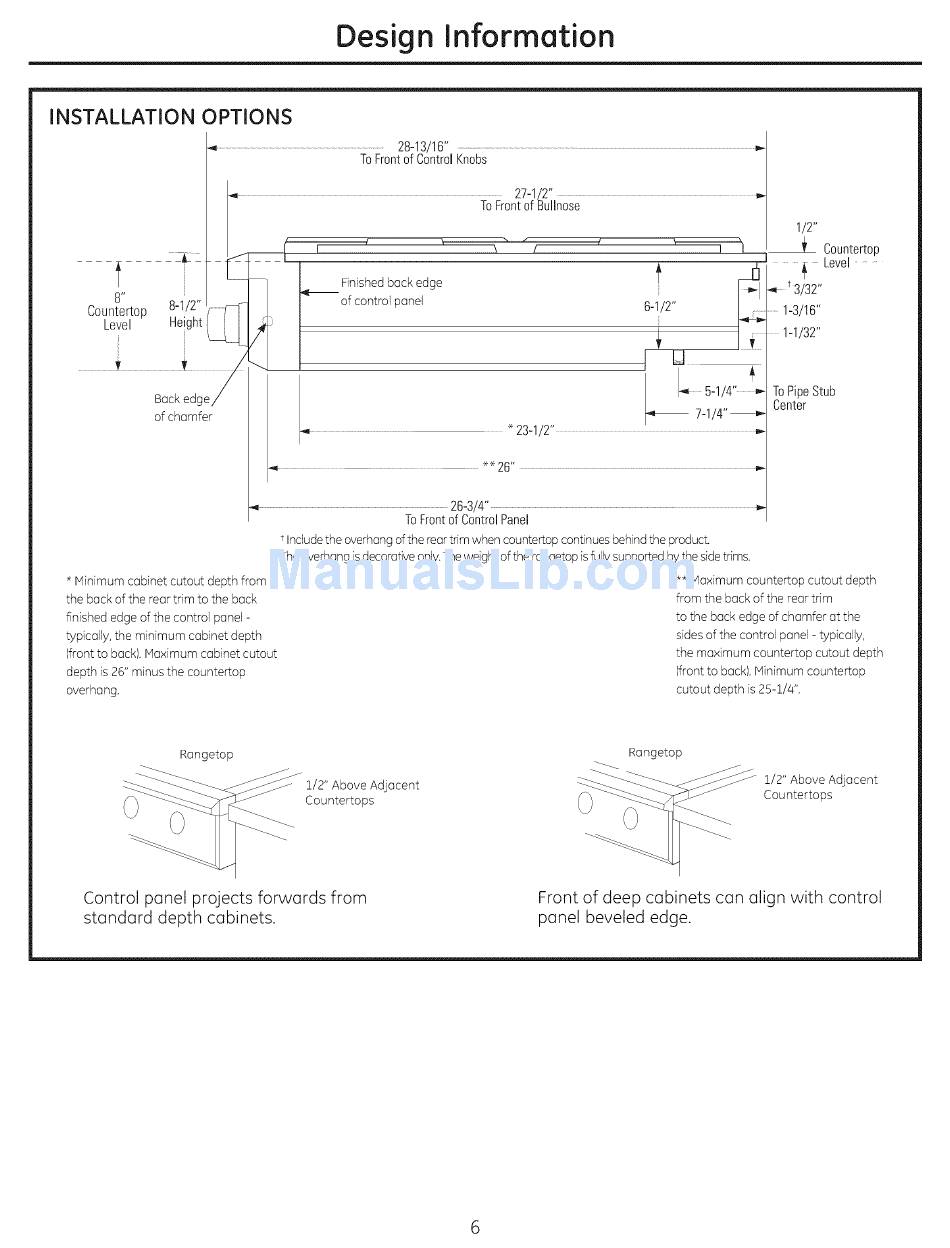

Design Information
INSTALLATION OPTIONS
8"
Countertop 8-1/2"
Level Height
Back edge
of chamfer
* Minimum cabinet cutout depth from
the back of the rear trim to the back
finished edge of the control panel -
typically, the minimum cabinet depth
(front to back). Maximum cabinet cutout
depth is 26" minus the countertop
overhang.
-,I..................................................................................................................................... 28-13/18" ..................................................................................... _,-
To Front of Control Knobs
27-1/2" ....................................................................................................................................
To Frontof Bullnose
\
Finished back edge
of control panel
/
\ ! 'J I
8-1/2"_:: _D,-
5-1/4" '_
7-1/4"
23-1/2 _,-
** 26" ......................................................... D,.
1/2"
Countertop
Level .........
_, t 3/32"
....... 1-3/16"
1-1/32"
To Pipe Stub
Center
26-3/4" .................................................................................................................................................
TOFront of Control Panel
t Includethe overhung ofthe rear trim when countertop continues behind the product.
The overhung is decorative only.The weight of the rungetop isfully supported by the side trims.
** Maximum countertop cutout depth
from the buck of the rear trim
to the buck edge of chamfer at the
sides of the control panel - typically,
the maximum countertop cutout depth
ffront to buck). Minimum countertop
cutout depth is 25-1/4".
Rangetop
1/2" Above Adjacent
Countertops
Rangetop
1/2" Above Adjacent
Countertops
Control panel projects forwards from
standard depth cabinets.
Front of deep cabinets can align with control
panel beveled edge.
