Design Information

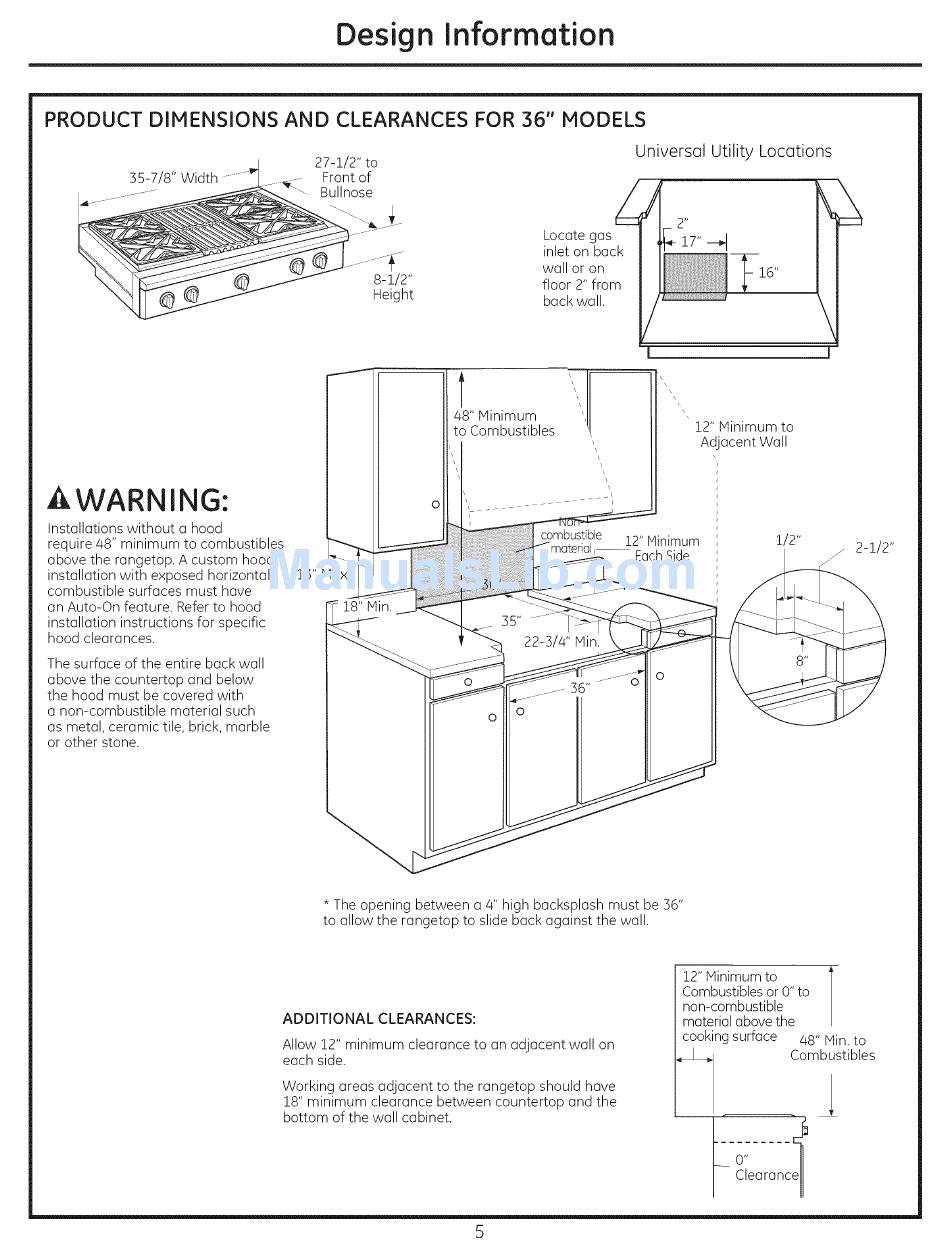

PRODUCT DIMENSIONS AND CLEARANCES FOR 36" MODELS
,,d 27-1/2" to
35-7/8" Width .............. L _ Front of
......................... _--_ "- aullnose
.,......... . €
8-1/2"
Height
Locate gas
inlet on back
wall or on
floor 2" from
back wall.
Universal Utility Locations
AWARNING:
Installations without a hood
require 48" minimum to combustibles
above the rangetop. A custom hood
installation with exposed horizontal
combustible surfaces must have
an Auto-On feature. Refer to hood
installation instructions for specific
hood clearances.
The surface of the entire back wall
above the countertop and below
the hood must be covered with
a non-combustible material such
as metal, ceramic tile, brick, marble
or other stone.
13" Max.
18" Min.
l
48" Minimum
to Combustibles
F
combustible 12" Minimum
' EachSide
35"
22-3/4" Min.
36"
O
12" Minimum to
Adjacent Wall
1/2"
2-1/2"
* The opening between a 4" high backsplash must be 36"
to allow the rangetop to slide back against the wall.
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall on
each side.
Working areas adJacent to the rangetop should have
18" minimum clearance between countertop and the
bottom of the wall cabinet.
12" Minimum to
Combustibles or 0" to
non-combustible
material above the
cooking surface 48" Min. to
Combustibles
0" -I
Clearanc
5
