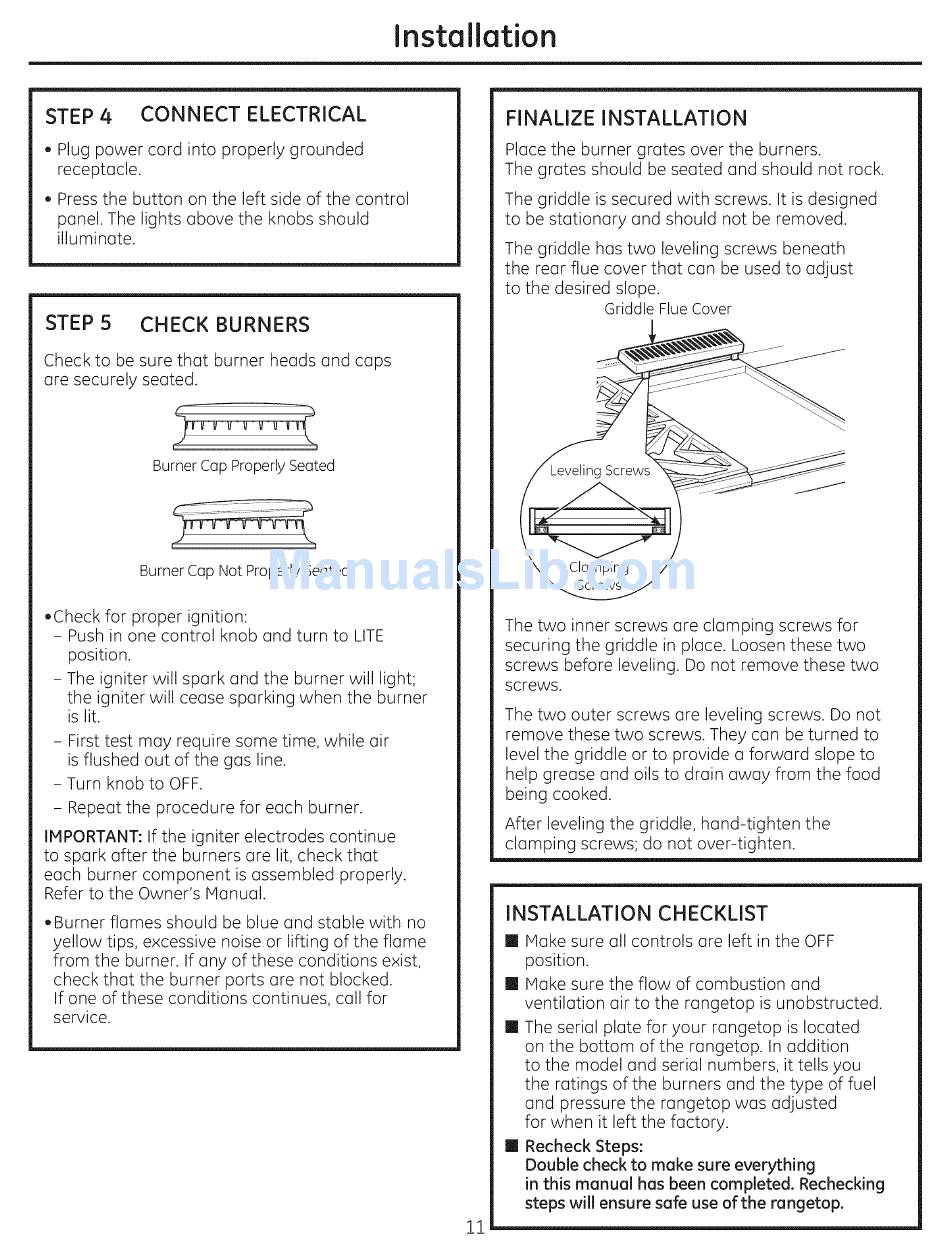

Monogram ZGU484NG Installation Instructions Manual page 11

Installation
STEP4 CONNECT ELECTRICAL
, Plug power cord into properly grounded
receptacle.
, Press the button on the left side of the control
panel. The lights above the knobs should
illuminate.
STEPS CHECK BURNERS
Check to be sure that burner heads and caps
are securely seated.
Burner Cap ProperlySeated
Burner Cap Not Properly Seated
,Check for proper ignition:
- Push in one control knob and turn to LITE
position.
- The igniter will spark and the burner will light;
the igniter will cease sparking when the burner
is lit.
- First test may require some time, while air
is flushed out of the gas line.
- Turn knob to OFF.
- Repeat the procedure for each burner.
IMPORTANT: If the igniter electrodes continue
to spark after the burners are lit, check that
each burner component is assembled properly.
Refer to the Owner's Manual.
,Burner flames should be blue and stable with no
yellow tips, excessive noise or lifting of the flame
from the burner. If any of these conditions exist,
check that the burner ports are not blocked.
If one of these conditions continues, call for
service.
FINALIZE INSTALLATION
Place the burner grates over the burners.
The grates should be seated and should not rock.
The griddle is secured with screws. It is designed
to be stationary and should not be removed.
The griddle has two leveling screws beneath
the rear flue cover that can be used to adjust
to the desired slope.
Griddle Flue Cover
The two inner screws are clamping screws for
securing the griddle in place. Loosen these two
screws before leveling. Do not remove these two
screws.
The two outer screws are leveling screws. Do not
remove these two screws. They can be turned to
level the griddle or to provide a forward slope to
help grease and oils to drain away from the food
being cooked.
After leveling the griddle, hand-tighten the
clamping screws; do not over-tighten.
11
INSTALLATION CHECKLIST
[] Hake sure all controls are left in the OFF
position.
[] Hake sure the flow of combustion and
ventilation air to the rangetop is unobstructed.
[] The serial plate for your rangetop is located
on the bottom of the rangetop. In addition
to the model and serial numbers, it tells you
the ratings of the burners and the type of fuel
and pressure the rangetop was adjusted
for when it left the factory.
[] Recheck Steps:
Double check to make sure everything
in this manual has been completed. Rechecking
steps will ensure safe use of the rangetop.
