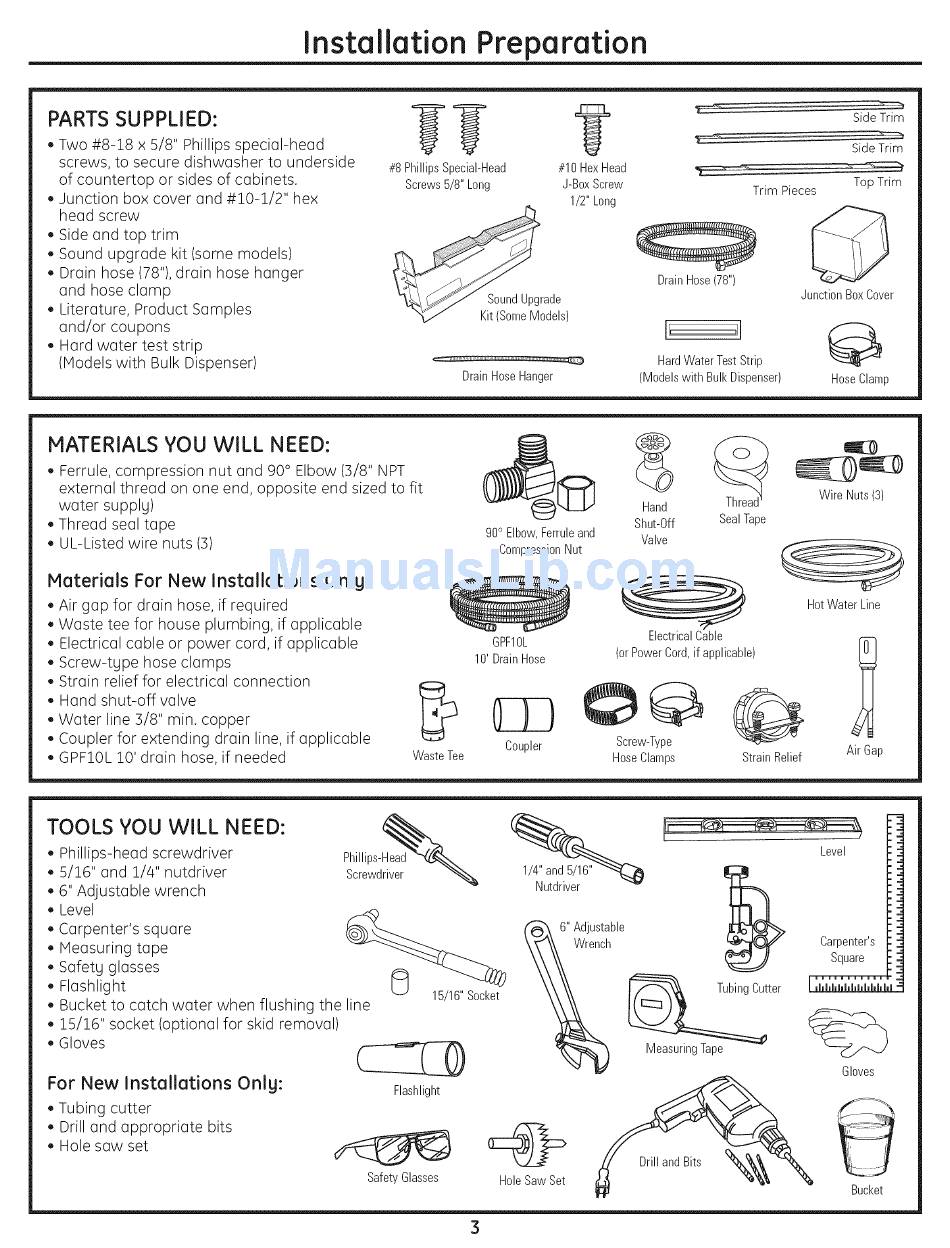

Installation Preparation
PARTS SUPPLIED:
• Two #8-18 x 5/8" Phillips special-head
screws, to secure dishwasher to underside
of countertop or sides of cabinets.
• Junction box cover and #10-!/2" hex
head screw
• Side and top trim
• Sound upgrade kit (some models)
• Drain hose (78"), drain hose hanger
and hose clamp
• Literature, Product Samples
and/or coupons
• Hard water test strip
(Models with Bulk Dispenser)
IjIj
#8 Phillips Special-Head #10 HexHead
Screws5/8" Long J-BoxScrew
1/2" Long
Drain HoseHanger
Side Trim
Side Trim
Trim Pieces Top Trim
Drain Hose(78")
Q
Junction Box Cover
Hard Water Test Strip
(Models with BulkDispenser) HoseClamp
MATERIALS YOU WILL NEED:
• Ferrule, compression nut and 90 ° Elbow (3/8" NPT
external thread on one end, opposite end sized to fit
water supply)
• Thread seal tape
• UL-Listed wire nuts (3)
Materials For New Installations Onlg:
• Air gap for drain hose, if required
• Waste tee for house plumbing, if applicable
• Electrical cable or power cord, if applicable
• Screw-type hose clamps
• Strain relief for electrical connection
• Hand shut-off valve
• Water line 3/8" min. copper
• Coupler for extending drain line, if applicable
• GPF!OL !0' drain hose, if needed Waste Tee
%0 Elbow,Ferruleand
Compression Nut
GPFIOL
10' DrainHose
Hand
Shut-Off Seal Tape
Valve
Coupler
ElectricalCable
(or PowerCord,if applicable)
Screw-Type
Hose Clamps
Wire Nuts (3)
HotWater Line
4
Air Ga
Strain Relief
Phl I rllpsi_
TOOLS YOU WILL NEED:
• Phillips-head screwdriver
• 5/16" and !/4" nutdriver
• 6" Adjustable wrench
• Level
• Carpenter's square
• Measuring tape
• Safetu glasses
• Flashlight 8 15/16" Socket
• Bucket to catch water when flushing the line
• 15/16" socket (optional for skid removal)
• Gloves
For New Installations Onlg:
• Tubing cutter
• Drill and appropriate bits
• Hole saw set
Flashlight
Safety Glasses
1/4" and 5/16"
Nutdriver
6" djustable
Wrench
HoleSaw Set
Level
ter
Measuring Tape
Carpenter's
Square
Gloves
Drill and Bits
Bucket
