Monogram ZBD0710KSS Dimensions And Specifications

ZBD0710KSS/ZBD0700KII – GE Monogram Fully Integrated Built-In Dishwasher

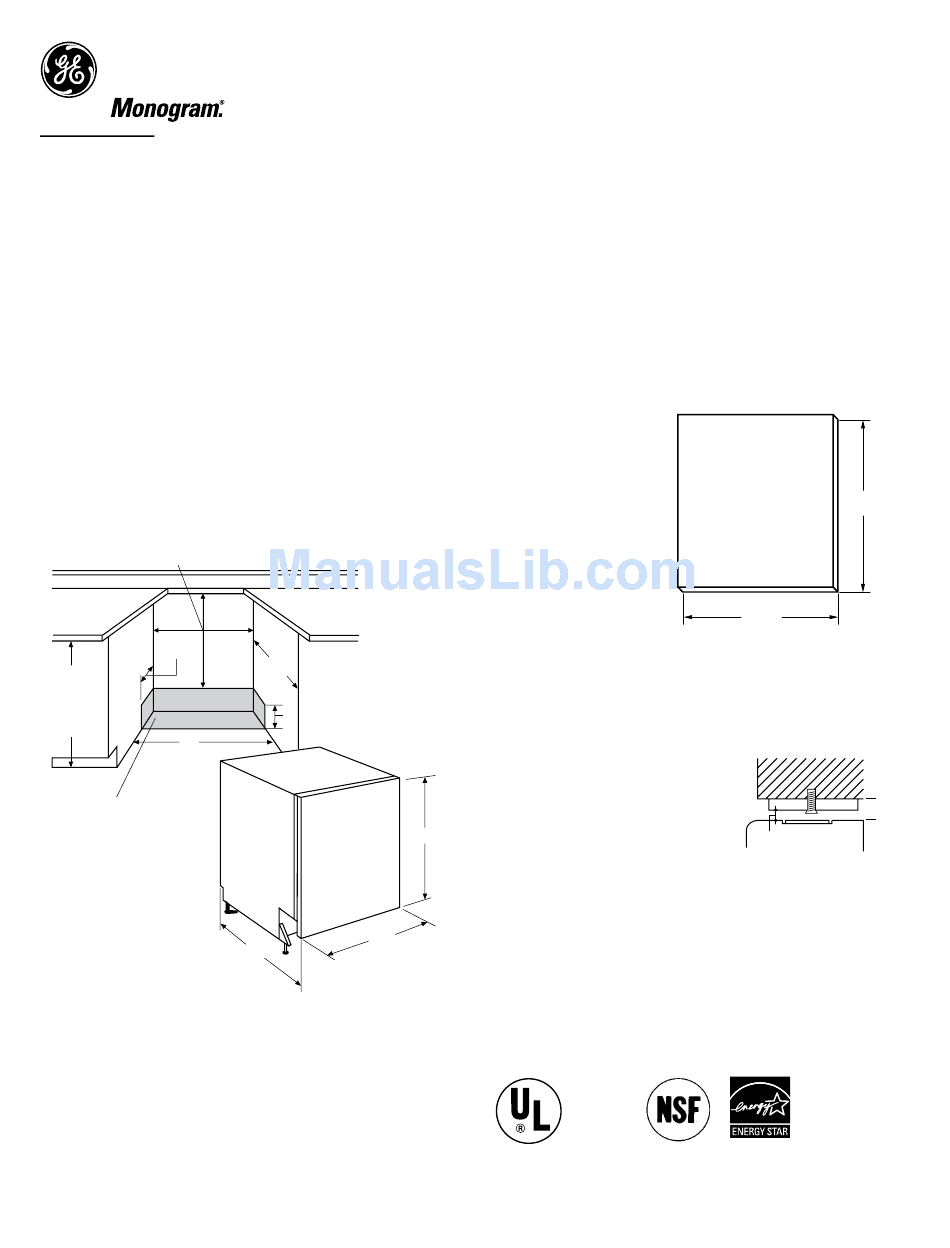

Dimensions and Specifications (in inches)
• The dishwasher must be installed so that the drain hose is
no more than 10 feet in length for proper drainage.
• Water and power supply should enter in the shaded area.
• Electrical and water connections are at the right front of the
dishwasher. The hot water line should extend forward 30" to
40" from the rear wall. The electrical must extend forward at
least 24" to reach the junction box.
• To prevent siphoning, an air gap must be used when the
waste tee or disposer connection is less than 18" above
the floor.
This Wall Area Must be
Free of Pipes or Wires
4"
34" to 35"
Floor to
Underside of
Countertop
24"
Plumbing and Electric Service
Must Enter Inside This Area

Electrical Requirements

The dishwasher must be supplied with 120V, 60Hz, and connected
to an individual properly grounded branch circuit protected by a
15- or 20-amp circuit breaker or time-delay fuse.
Specification Revised 10/06
150046
24"
min.
6"
34" - 35"
24"
24"
Custom Panel for Model ZBD0700KII
These dishwashers require a field installed 3/4" thick custom panel
and custom handle. An installation template is packed with these
models and may be obtained in advance. Order Pub. No. 31-30569-1.
Complete panel installation instructions are included on the template.
CUSTOM PANEL SIZE REQUIREMENTS
HEIGHT
Panel height must
be between
30-1/16" and 30-1/4".
• If the panel height is
more than 30-1/4" it
will prevent the door
from swinging open.
• If the panel height is
less than 30-1/16" it
will not cover the
dishwasher door frame.
• The top of the custom
panel must be flush
with the top of the door.
The 1/2" minimum gap between the top of the door and the bottom
of the countertop must be maintained.
WIDTH
Panel width must be 23-3/4".
• If the panel width is less than
23-3/4" it will not cover the
dishwasher frame.
IMPORTANT: To ensure optimum
door balance performance, the
custom panel must not weigh
more than 14 lbs.
Professional-Style Door Panel Kit
The ZPrO0700S Door Panel Kit provides a professional-style handle
on a stainless steel door panel. Transform the ZBD0700KII to
complement a commercial-style kitchen.
Before installing refer to installation instructions for details.
Pub. No. 31-30586
Listed by
Underwriters
Laboratories
For answers to your Monogram,
gE appliance questions, visit our website at
®
ge.com or call gE Answer Center
800.626.2000.
30-1/16" Min.
30-1/4" Max.
23-3/4"
23-3/4"
Countertop
Countertop
1/2" min.
Minimum 1/2" gap
for Clearance
1/2" min.
Minimum 1/2" gap
for Clearance
As an EnErgy STAr
partner, gE has determined
that this product meets the
EnErgy STAr guidelines
for energy efficiency.
gE Profile or
® ™
service,
®
30-1/16" Min.
30-1/4" Max.
®
