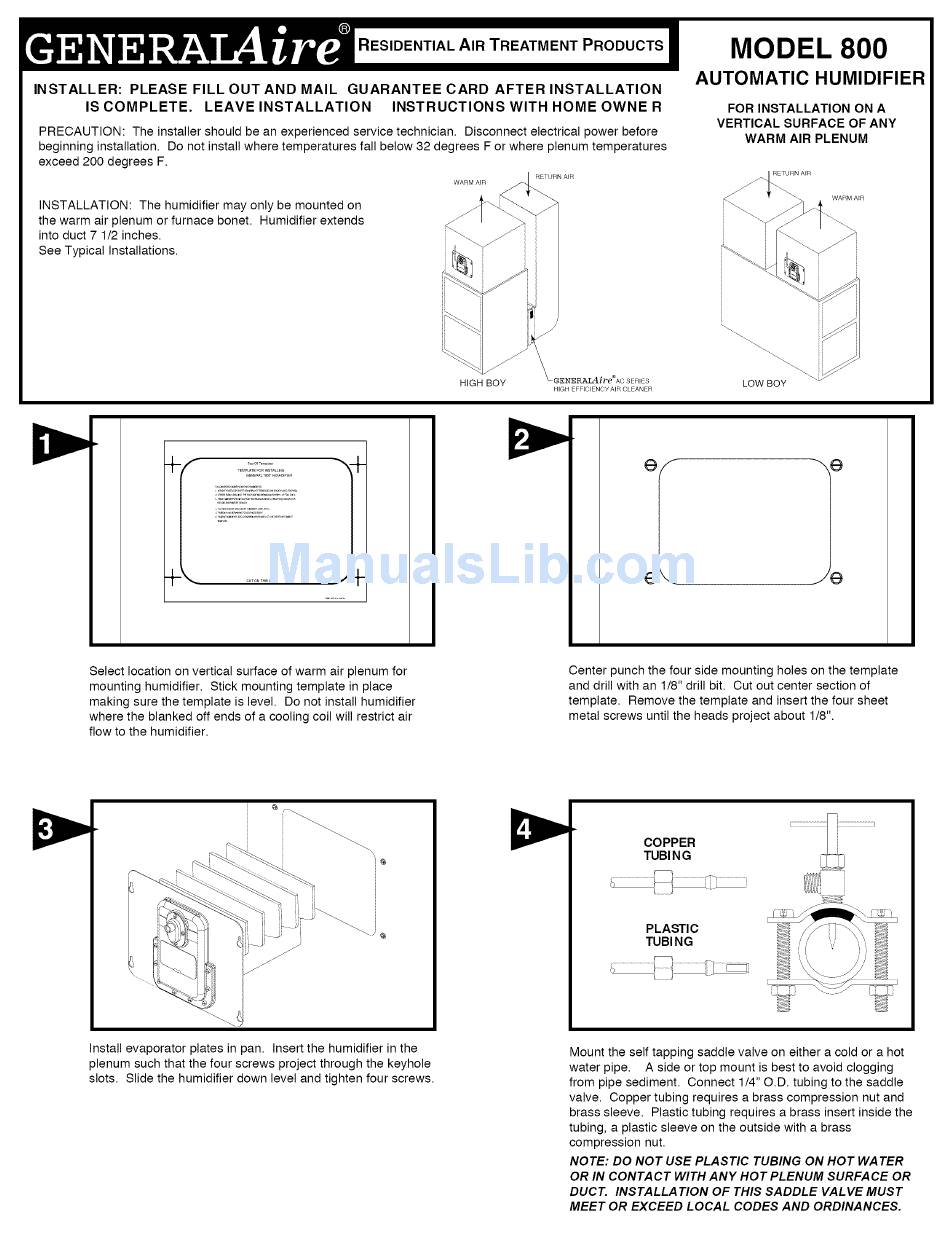

GeneralAire 800 Installation Instructions Manual

Automatic humidifier

Advertisement

Quick Links

RESIDENTIAL
AIR TREATMENT
PRODUCTS
INSTALLER:
PLEASE FILL OUT AND MAIL
GUARANTEE
CARD AFTER INSTALLATION
IS COMPLETE.
LEAVE INSTALLATION
INSTRUCTIONS
WITH HOMEOWNER
the warm air plenum or furnace bonet.
Humidifier extends
into duct 7 1/2 inches.
See Typical Installations.
PRECAUTION:
The installer should be an experienced service technician.
Disconnect electrical power before
beginning installation.
Do not install where temperatures
fall below 32 degrees F or where plenum temperatures
exceed 200 degrees F.
WARM
AIR
/_ETURRETURN
AIR
INSTALLATION:
The humidifier may only be mounted on
j_-_
-
MODEL 800
AUTOMATIC
HUMIDIFIER
FOR INSTALLATION
ON A
VERTICAL SURFACE OF ANY
WARM AIR PLENUM
HIGH BOY
k
GENERAL4_
t'€eAC
SERIES
HiGH
EFFJCIENCYAIR
CLEANER
LOW BOY
Select location on vertical surface of warm air plenum for
mounting humidifier.
Stick mounting template in place
making sure the template is level. Do not install humidifier
where the blanked off ends of a cooling coil will restrict air
flow to the humidifier.
Center punch the four side mounting holes on the template
and drill with an 1/8" drill bit. Cut out center section of
template.
Remove the template and insert the four sheet
metal screws until the heads project about 1/8".
COPPER
TUBI N G
PLASTIC
TUBI NG
Install evaporator
plates in pan. Insert the humidifier in the
plenum such that the four screws project through the keyhole
slots. Slide the humidifier down level and tighten four screws.
Mount the self tapping saddle valve on either a cold or a hot
water pipe.
A side or top mount is best to avoid clogging
from pipe sediment.
Connect 1/4" O.D. tubing to the saddle
valve. Copper tubing requires a brass compression
nut and
brass sleeve.
Plastic tubing requires a brass insert inside the
tubing, a plastic sleeve on the outside with a brass
compression
nut.
NOTE: DO NOT USE PLASTIC TUBING ON HOT WATER
OR IN CONTACT WITH ANY HOT PLENUM SURFACE OR
DUCT.
INSTALLATION
OF THIS SADDLE VALVE MUST
MEET OR EXCEED LOCAL CODES AND ORDINANCES.
