Date of Start-Up:.
Dealer Name:
Address:
City, State(Province), Zip or Postal Code:
Phone:

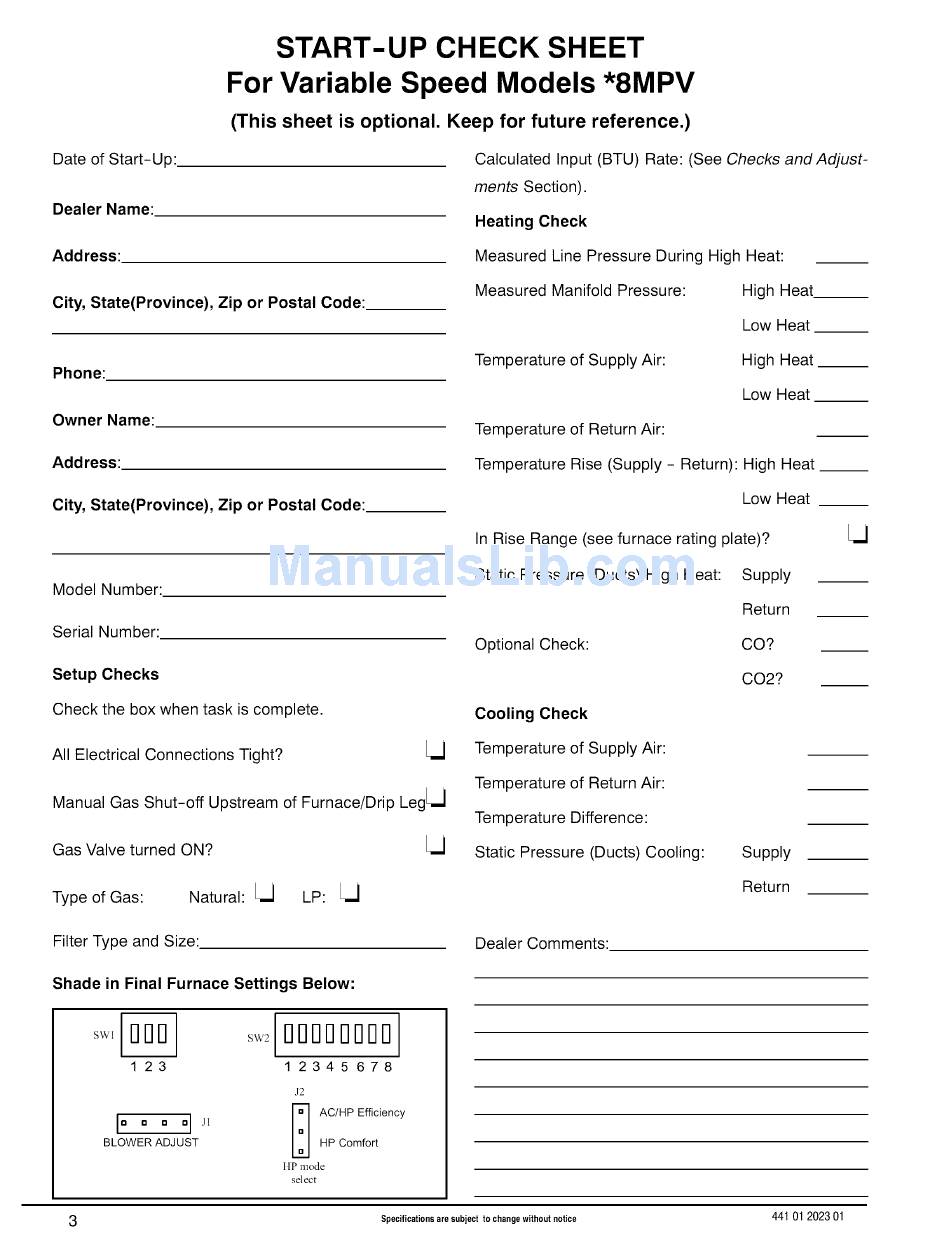

START-UP CHECK SHEET
For Variable Speed Models *8MPV
(This sheet is optional. Keep for future reference.)
Calculated Input (BTU) Rate: (See Checks and Adjust-
ments Section).
Heating Check
Measured Line Pressure During High Heat:
Measured Manifold Pressure: High Heat
Owner Name:
Address:
City, State(Province), Zip or Postal Code:
Model Number:
Serial Number:
Setup Checks
Check the box when task is complete.
All Electrical Connections Tight? Lj
Manual Gas Shut-off Upstream of Furnace/Drip Leg[--]
Gas Valve turned ON? Lj
Type of Gas: Natural: Lj LP: Lj
Temperature of Supply Air:
Low Heat
High Heat
Low Heat
Temperature of Return Air:
Temperature Rise (Supply - Return): High Heat __
Low Heat
In Rise Range (see furnace rating plate)?
Static Pressure (Ducts) High Heat: Supply
Optional Check:
Cooling Check
Temperature of Supply Air:
Temperature of Return Air:
Temperature Difference:
Static Pressure (Ducts) Cooling:
Return
CO?
CO2?
Supply
Return
Filter Type and Size:
Shade in Final Furnace Settings Below:
SW1 [_
123
w2looooooDo 1
1 234 5 678
J2
I=a D D el J; _-_ AC/HPEfficiency BLOWER ADJUST HP Comfort
liP mode
select
Dealer Comments:
3
Specificationsare subject to changewithout notice
441 01 202301
