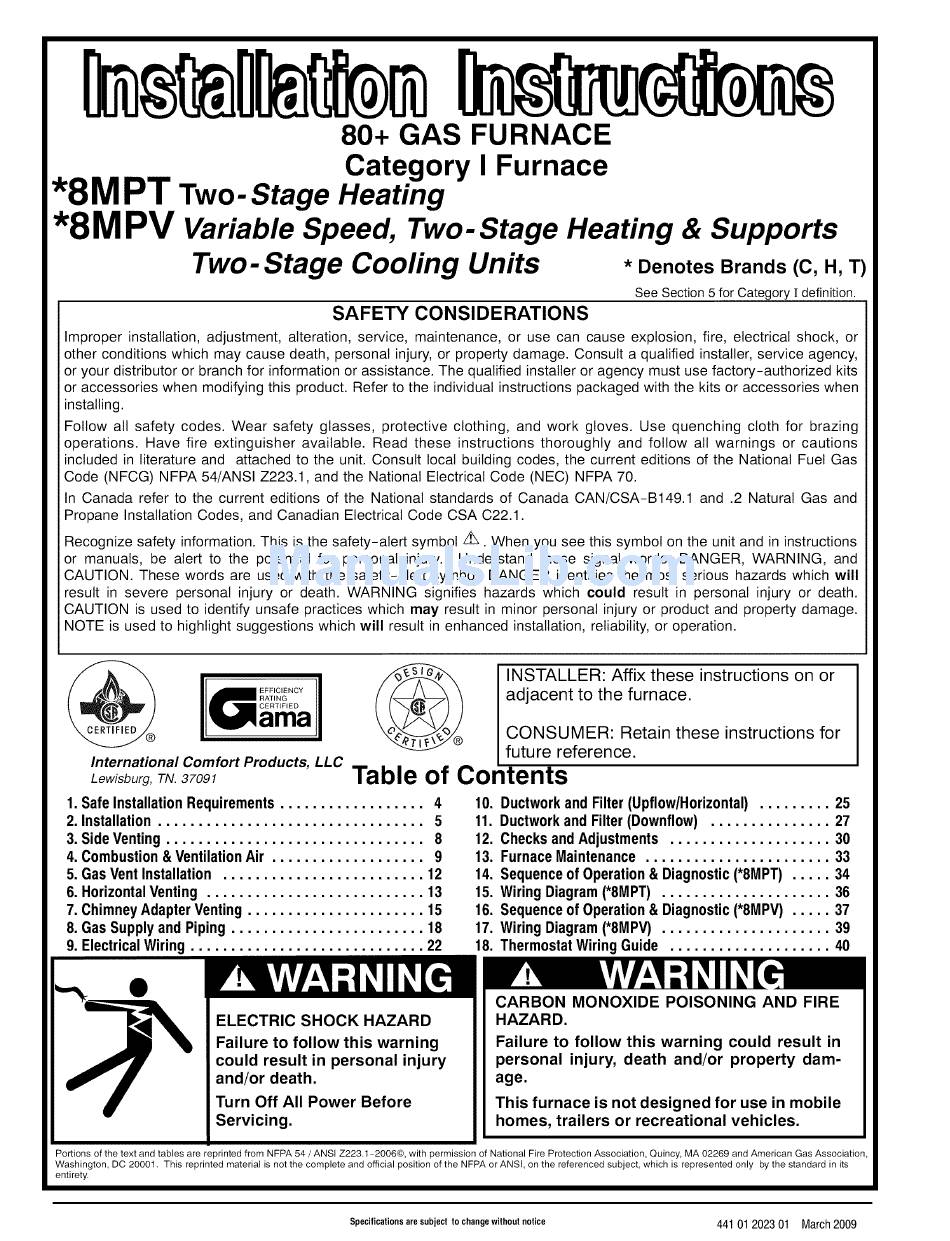

80+ GAS FURNACE

Category I Furnace

*8MPT

Two-Stage

Heating

*8MPV

Variable Speed, Two-Stage

Heating & Supports

Two- Stage Cooling Units

* Denotes

Brands (C, R, T)

See Section 5 for Category ! definition.

SAFETY

CONSIDERATIONS

Improper installation, adjustment,

alteration, service, maintenance,

or use can cause explosion, fire, electrical shock, or

other conditions which may cause death, personal injury, or property damage. Consult a qualified installer, service agency,

or your distributor or branch for information or assistance. The qualified installer or agency must use factory-authorized

kits

or accessories when modifying this product. Refer to the individual instructions packaged with the kits or accessories

when

installing.

Follow att safety codes. Wear safety glasses,

protective

clothing,

and work gloves.

Use quenching

cloth for brazing

operations.

Have fire extinguisher

available.

Read these

instructions

thoroughly

and follow all warnings

or cautions

included in literature and attached to the unit. Consult local building codes, the current editions of the National Fuel Gas

Code (NFCG) NFPA 54/ANSI Z223.1, and the National Electrical Code (NEC) NFPA 70.

In Canada refer to the current editions of the National standards of Canada CAN/CSA-B149.1

and .2 Natural Gas and

Propane Installation Codes, and Canadian Electrical Code CSA C22.1.

Recognize safety information. This is the safety-alert

symbol z_. When you see this symbol on the unit and in instructions

or manuals,

be alert to the potential for personal injury.

Understand

these signal words; DANGER,

WARNING,

and

CAUTION. These words are used with the safety-alert

symbol. DANGER identifies the most serious hazards which will

result in severe personal injury or death. WARNING

signifies hazards which could

result in personal injury or death.

CAUTION is used to identify unsafe practices which may result in minor personal injury or product and property damage.

NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation.

International Comfort Products, LLC

Lewisburg,

TN.37091

1. Safe Installation Requirements ..................

2. Installation.................................

3. SideVenting................................

4. Combustion & Ventilation Air ...................

5. GasVentInstallation .........................

6. Horizontal V enting ...........................

7. Chimney AdapterVenting ......................

8. Gas Supplyand Piping ........................

9. ElectricalWiring .............................

INSTALLER:

Affix these instructions

on or

adjacent

to the furnace.

CONSUMER:

Retain these instructions

for

future reference.

Table of Contents

10. Ductwork and Filter (Upflow/Horizontal)

.........

11. Ductworkand Filter(Downflow) ...............

12. Checksand Adjustments ....................

13. FurnaceMaintenance .......................

14. Sequence of Operation& Diagnostic (*8MPT) .....

15. WiringDiagram (*8MPT) .....................

16. Sequence of Operation& Diagnostic (*8MPV) .....

17. WiringDiagram (*8MPV) .....................

18. Thermostat W iringGuide ....................

ELECTRIC SHOCK HAZARD

Failure to follow this warning

could result in personal injury

and/or death.

Turn Off All Power Before

Servicing.

CARBON MONOXIDE POISONING AND FIRE

HAZARD.

Failure to follow this warning could result in

personal injury, death and/or property dam-

age.

This furnace is not designed for use in mobile

homes, trailers or recreational vehicles.

Portions

of the text and tables are reprinted

from NFPA 54 / ANSi Z223.1-2006@,

with permission

of National

Fire Protection

Association,

Quincy, MA 02269 and American

Gas Association

Washington

DC 20001.

This reprinted

material is not the complete

and official position of the NFPA or ANSi

on the referenced

subject

which is represented

only

by the standard

in its

entirety.

Specificationsare subject to changewithout notice

441 01 202301 March2009
