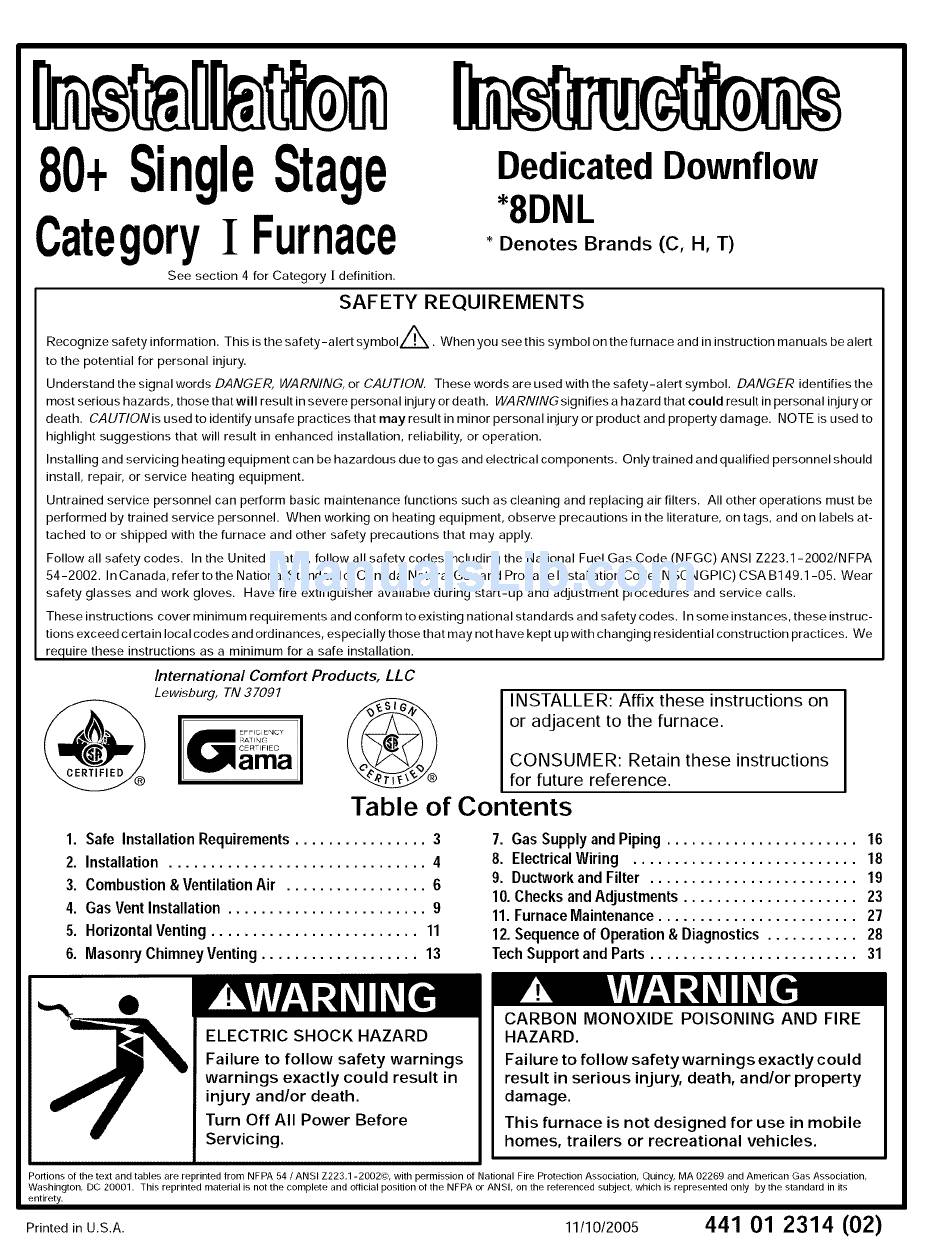

ICP T8DNL100F14B1 Installation Instructions Manual

80+Single S tage
Category I Furnace
DedicatedDownflow
*8DNL
* Denotes Brands (C, H, T)
See section 4 for Category I definition.
SAFETY REQUIREMENTS
Recognize safety information. This is the safety-alert symbolZl._. When you see this symbol on the furnace and in instruction manuals be alert
to the potential for personal injury.
Understand the signal words DANGER, WARNING, or CAUTION. These words are used with the safety-alert symbol. DANGER identifies the
most serious hazards, those that will result in severe personal injury or death. WARNINGsignifiesahazardthatcouldresultinpersonalinjuryor
death. CAUTIONis used to identify unsafe practices that may result in minor personal injury or product and property damage. NOTE is used to
highlight suggestions that will result in enhanced installation, reliability, or operation.
Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualified personnel should
install, repair, or service heating equipment.
Untrained service personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be
performed by trained service personnel. When working on heating equipment, observe precautions in the literature, on tags, and on labels at-
tached to or shipped with the furnace and other safety precautions that may apply.
Follow all safety codes. In the United States, follow all safety codes including the National Fuel Gas Code (NFGC) ANSI Z223.1-2002/NFPA
54-2002. In Canada, refer to the National Standard of Canada Natural Gas and Propane Installation Code (NSCNGPIC) CSA B149.1-05. Wear
safety glasses and work gloves. Have fire extinguisher available during start-up and adjustment procedures and service calls.
These instructions cover minimum requirements and conform to existing national standards and safety codes. In some instances, these instruc-
tions exceed certain local codes and ordinances, especially those that may not have kept up with changing residential construction practices. We
require these instructions as a minimum for a safe installation.
INSTALLER: Affix these instructions on
or adjacent to the furnace.
International Comfort Products, LLC
Lewisburg, TN 37097
Table of
Contents
CONSUMER: Retain these instructions
for future reference.
1. Safe Installation Requirements ................ 3
2. Installation ............................... 4
3. Combustion & Ventilation Air ................. 6
4. Gas Vent Installation ........................ 9
5. Horizontal Venting ......................... 11
6. Masonry Chimney Venting ................... 13
7. Gas Supply and Piping ....................... 16
8. Electrical Wiring ........................... 18
9. Ductwork and Filter ......................... 19
10.Checks and Adjustments..................... 23
11.Furnace Maintenance........................ 27
12.Sequence of Operation & Diagnostics ........... 28
TechSupport and Parts ......................... 31
CARBON MONOXIDE POISONING AND FIRE
HAZARD.
Failure to follow safety warnings exactly could
result in serious injury, death, and/or property
damage.
This furnace is not designed for use in mobile
homes, trailers or recreational vehicles.
Portions of the textand tablesare reprinted from NFPA 54 / ANSI Z223,1-2002©, with permission of National Fire Protection Association, Quincy, MA 02269 and American Gas Association,
Washington, DC 20001. This reprinted material is not the complete and official position of the NFPA or ANSI, on the referenced subject, which is represented only by the standard in its
entirety.
Printedin U.S.A. 11/10/2005 441 01 2314 (02)
