1.4

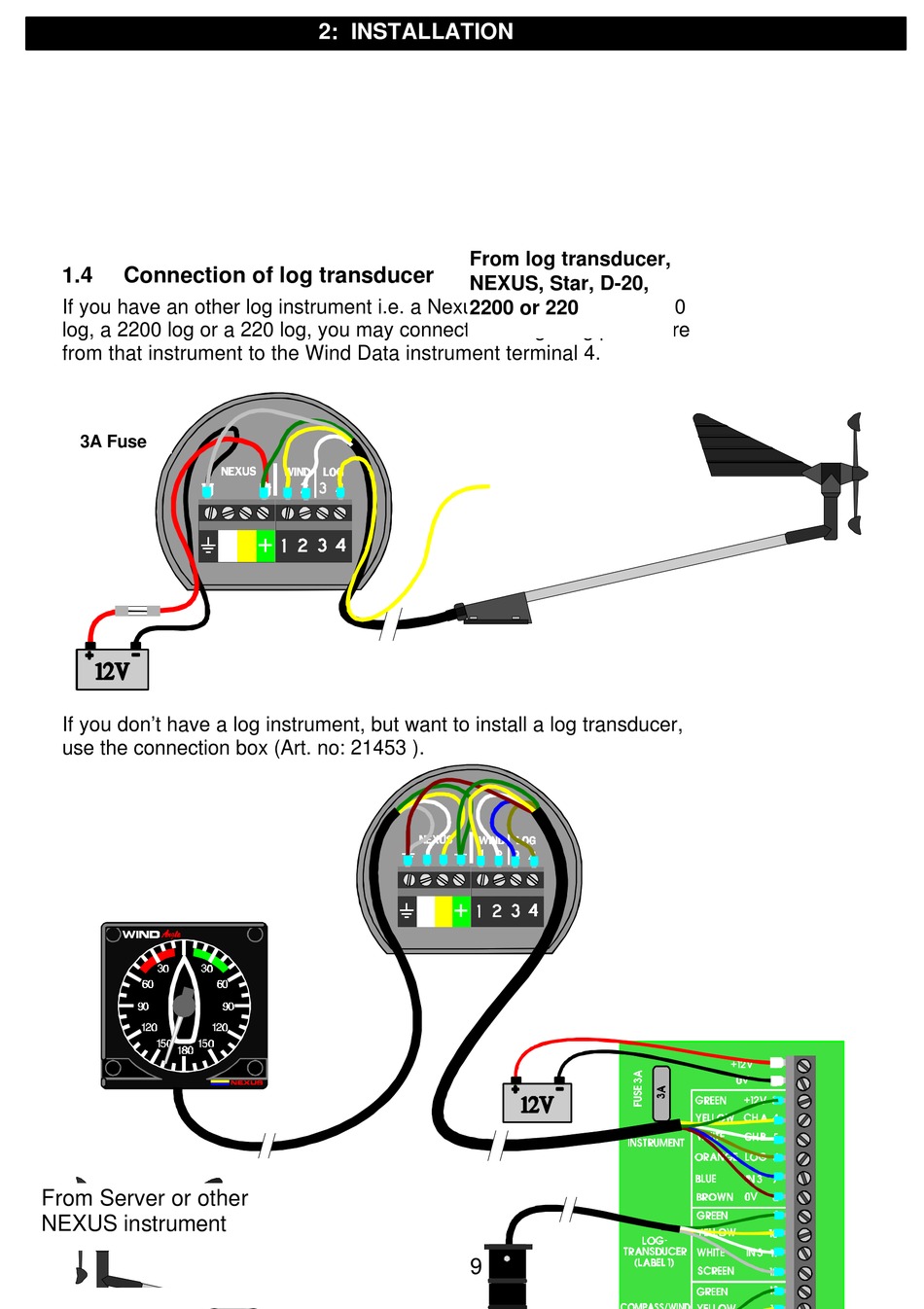

Connection of log transducer

If you have an other log instrument i.e. a Nexus log, a Star log, a D-20
log, a 2200 log or a 220 log, you may connect the single log pulse wire
from that instrument to the Wind Data instrument terminal 4.
3A Fuse
If you don't have a log instrument, but want to install a log transducer,
use the connection box (Art. no: 21453 ).
From Server or other
NEXUS instrument
2: INSTALLATION
From log transducer,
NEXUS, Star, D-20,
2200 or 220
9
