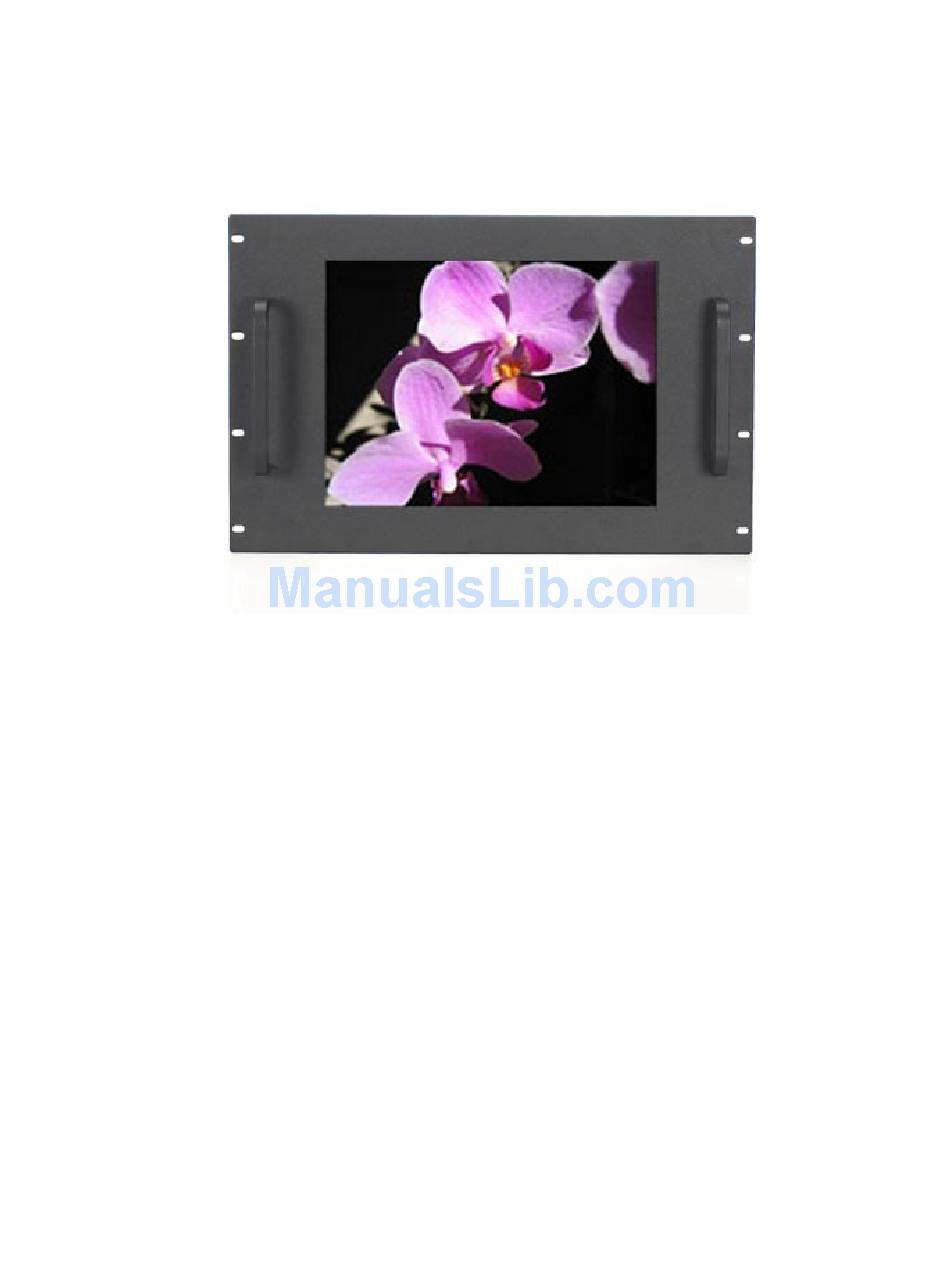

- Page 1 TRANSDUCTION USER’S MANUAL Version 1.1 07/30/08 TR-LCD1500-RM Rack Mount Monitor TR-LCD1500-PM Panel Mount Monitor 5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 FAX: 905-625-0531 Email: sales@transduction.com...
- Page 2 Products returned for repair must be accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return. Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or damage caused by the carrier in transit.
-
Page 3: Table Of Contents
Index Safety Precautions ............. Contents ..............Quick Start ..............OSD (On-Screen Display) Controls ......Troubleshooting Tips ..........TR-LCD1500 Specifications ........Mechanical Drawings & Specifications ...... Panel Mount Cut-out Template ........TR-LCD1500... -
Page 4: Safety Precautions
Safety Precautions When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire or touch the plug with wet hands. -
Page 5: Contents
Contents Your new TR-LCD1500 monitor box should contain the following: • TR-LCD1500 rack mount / panel mount monitor • Power Cord • Video Signal Cable • User’s Manual *Remember to save your original box and packing material to transport or ship the monitor. Power Cord Video Signal Cable User’s Manual... -
Page 6: Quick Start
Quick Start To attach the TR-LCD1500 monitor to your system, follow these instructions: 1. Turn off the power to your computer. 2. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. -
Page 7: Osd (On-Screen Display) Controls
OSD (On-Screen Display) Controls These controls are located on the rear panel of the monitor. · · · · · · MENU DOWN POWER POWER Turns ON/OFF the system MENU Activates the OSD menu or goes to previous menu - When the OSD menu is off, press more than 3 seconds : Performs “Auto-adjustment”... -
Page 8: Troubleshooting Tips
Troubleshooting Tips Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please contact Transduction. Symptom Check List Solutions No images on the Is the power cord connected Check the power cord connection and supply. -
Page 9: Tr-Lcd1500 Specifications
TR-LCD1500 Specifications TR-LCD1500 Monitor Notes LCD Module Size: 15.0 inch diagonal Viewable Image Size: 15.0 inch Active Display Area: 304.1mm (H) x 228.1mm (V) Native Resolution (Pixel Count): 1024 x 768 Pixel Pitch: 0.297mm Type: a-si TFT active matrix Viewing Angle (L/R/U/D): 70 / 70 / 60 / 65 Brightness: 250 cd/m... - Page 10 TRANSDUCTION 5155 Spectrum Way Bldg 23 Mississauga, ON L4W 5A1 Canada 905-625-1907 www.transduction.com TR-LCD1500...
