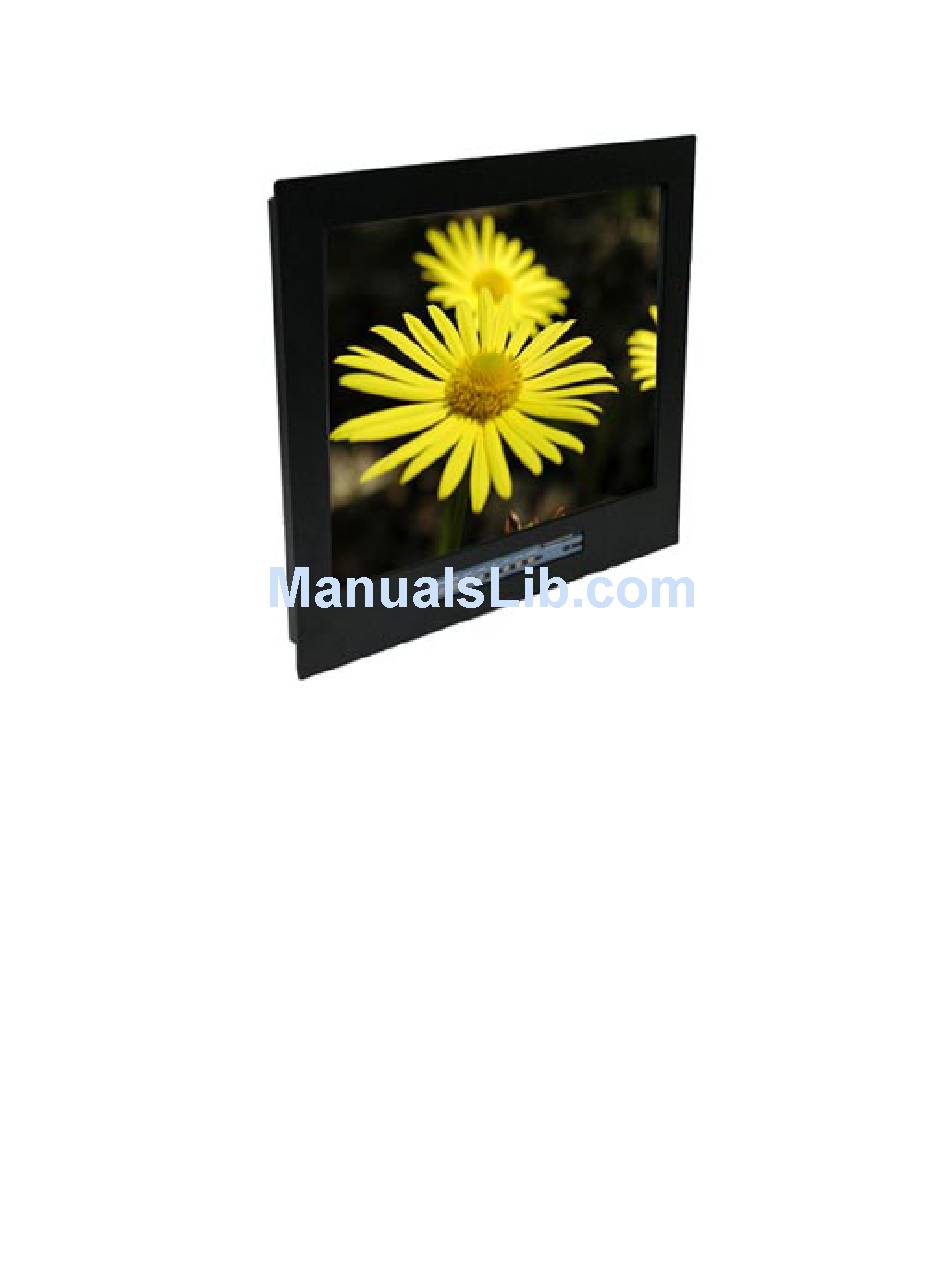

- Page 1 TRANSDUCTION USER’S MANUAL Version 1.0 07/02/09 TR-LCD1900-OCD 19” Rack/Panel Mount TFT LCD Monitor with Front LCD Controls 5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 F AX: 905-625-0531 Email: sales@transduction.com...
- Page 2 Products returned for repair must be accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return. Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or damage caused by the carrier in transit.
-
Page 3: Safety Precautions
Do not place the monitor face down. The CDT surface may be damaged. When cleaning, wipe with a slightly moistened, soft cloth. Do not spray any cleaner directly on to the monitor. Do not remove housing. No serviceable p arts inside. Refer servicing to Trans- duction. TR-LCD1900-OCD User Manual... - Page 4 Contents Your new TR-LCD1900-OCD monitor box should contain the following: TR-LCD1900-OCD rack mount / panel mount monitor • Power Cord • Video Signal Cable • User’s Manual and Driver Inst allation CD • *Remember to save your original box and packing material to transport or ship the monitor.
-
Page 5: Quick Start
Quick Start To attach the TR-LCD1900-OCD monitor to your system, follow these instructions: 1. Turn off the power to your computer. 2. Connect the power cord for your monitor to the power port on the back of the monitor . Plug the power cord for the monitor into a nearby outlet. -
Page 6: Control Panel Buttons
Note: The numeric value indicator is provided as a point of reference only and has nothing to do with a real measurement. Press the Menu button once to return to the main menu to select another function or press twice to exit from the OSD. TR-LCD1900-OCD User Manual... - Page 7 Mode Changes the image information to factory outgoing status. Recall Backlight Changes the brightness of image by controlling the backlight of panel. Auto sleep Goes to soft power off after 10 minutes when input cable is disconnected. TR-LCD1900-OCD User Manual...
- Page 8 Connect the DVI Cable to the DVI Port on the back of your Monitor. Signal port Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor. Note: See Quick Start on page 4 for further information regarding cable connections. TR-LCD1900-OCD User Manual...
-
Page 9: Troubleshooting Tips
Plug & Play See the video card manual to see if Install the monitor driver according to the Driver Installation Instructions. (VESA DDC) monitor the Plug & Play (VESA DDC) found”. function can be supported. TR-LCD1900-OCD User Manual... -
Page 10: Frequently Asked Questions
Windows ME/XP/2000 : Set the function from the Control Panel, Display, Screen Saver. How can I clean the outer case / LCD Panel? Clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not spray directly on to the monitor. TR-LCD1900-OCD User Manual... -
Page 11: Self-Test Feature
Self-Test Feature The TR-LCD1900-OCD has a Self-Test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check 1. Turn off both your computer and the monitor. 2. Unplug the video cable from the back of the computer . - Page 12 For example, the no. of TFT LCD pixels that is contained in this product are 3,932,160. MagicTune Display Adjustment For Windows 98SE or later. Feature Regulatory Approvals FCC Class A Note: Design and specifications are subject to change without prior notice. TR-LCD1900-OCD User Manual...
-
Page 13: Resolutions Supported
Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called V ertical Frequency or Refresh Rate. Unit: Hz TR-LCD1900-OCD User Manual... - Page 14 TRANSDUCTION 5155 Spectrum Way Bldg 23 Mississauga, ON L4W 5A1 Canada 905-625-1907 www.transduction.com TR-LCD1900-OCD User Manual...
