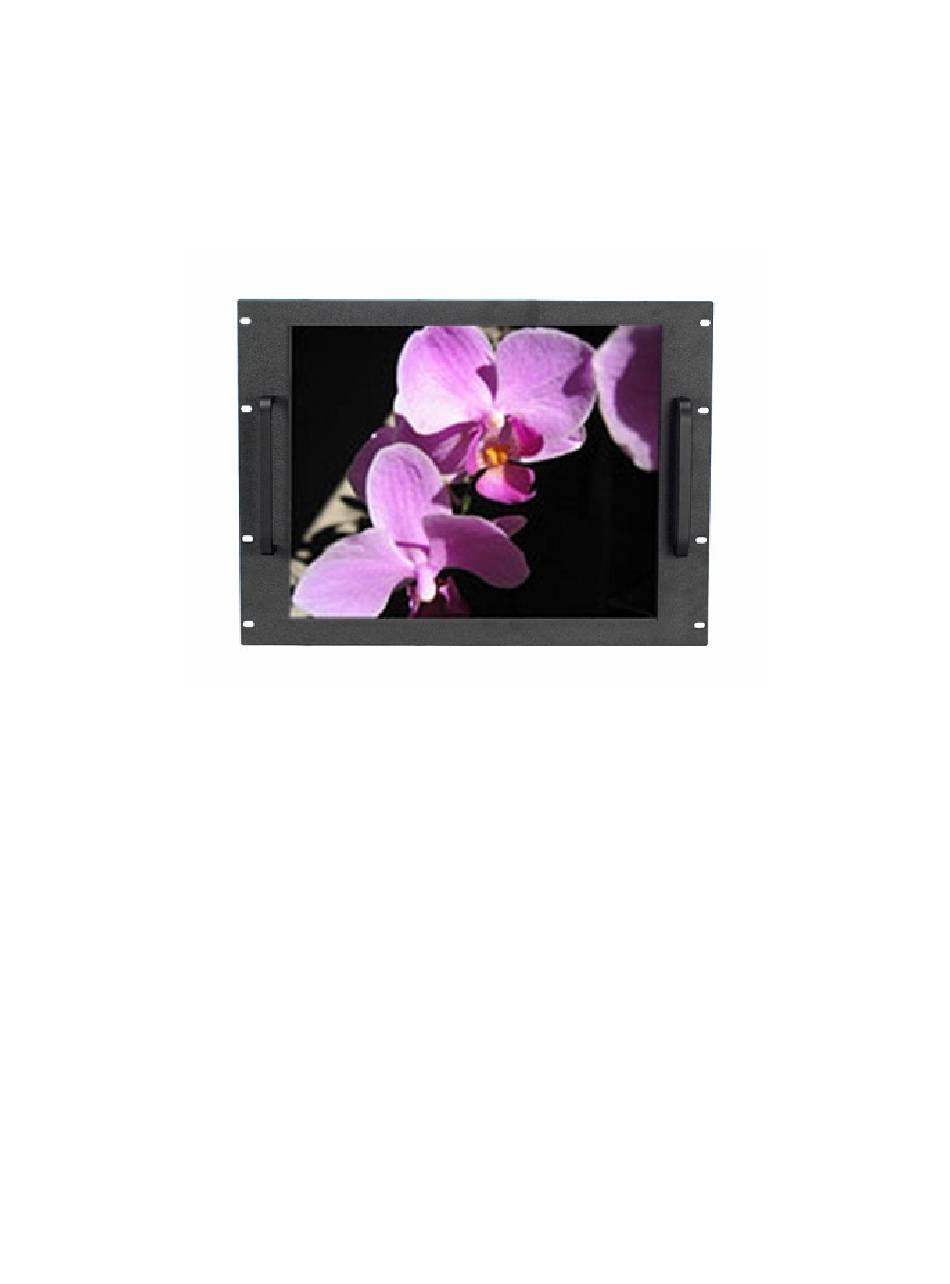

TRANSDUCTION TR-LCD1900-RM Rack Mount Monitor TR-LCD1900-PM Panel Mount Monitor User Manual - Ver. 2...
Page 2
Products returned for repair must be accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return. Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or damage caused by the carrier in transit. Double pack tight to prevent any damage.
Do not place the monitor face down. The LCD surface may be damaged. When cleaning, wipe with a slightly moistened, soft cloth. Do not spray any cleaner directly on to the monitor. Do not remove housing. No serviceable parts inside. Refer servicing to Transduction. Page 2 of 37 TR-LCD1900-V2 User Manual...
Page 4
Power Saving Mode: The monitor can be set to shift to a lower power consumption level when not in use. This will save useful life of backlight lamps. TRANSDUCTION 5155 Spectrum Way, Bldg 23, Mississauga, ON L4W 5A1 1.800.268.0427 905.625.1907 Fax: 905.625.0531 www.transduction.com Email: sales@transduction.com Page 3 of 37 TR-LCD1900-V2 User Manual...
Page 5
Display Colors • CSA, CE, UL • Analog input 16,194,277 Ordering Information Maximum Viewing Angles • TR-LCD1900-RM-V2 - Rack Mount version • Up/Down - 75º • TR-LCD1900-PM-V2 - Panel Mount version • Left/Right - 80º Warranty: 5 years Synchronization Range •...
Quick Start Your new TR-LCD1900 monitor box should contain the following: TR-LCD1900 rack mount / panel mount monitor • Power cord • SVGA cable • DVI cable • DisplayPort cable • USB cable if touch option included • User’s manual and driver installation CD •...
Page 7
Quick Start To attach the TR-LCD1900 monitor to your system, follow these instructions: 1. Turn off the power to your computer. 2. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.
Page 8
Rear Panel Video Input Connectors (The configuration at the back of the monitor may vary from product to product.) Analog SVGA port Connect the signal cable to the 15-pin, D-sub SVGA connector on the back of your monitor. DVI port Connect the DVI Cable to the DVI Port on the back of your Monitor.
Supported Input Formats TR-LCD1900 series monitor can support any video mode within the following input constraints: Page 9 of 37 TR-LCD1900-V2 User Manual...
Page 11
Monitor and Power Supply Wiring Diagram Page 10 of 37 TR-LCD1900-V2 User Manual...
Control Panel Buttons The Control Panel Buttons give various and very easy graphic user interfaces. Users can easily access the function needed. Be sure that your system power and LED is turned on before operating the keyboard. Key Name and Function Key Name Description Power...
Page 13
Summary of OSD Menu Page 12 of 37 TR-LCD1900-V2 User Manual...
Page 14
Summary of OSD Menu Page 13 of 37 TR-LCD1900-V2 User Manual...
OSD Menu Settings Page 14 of 37 TR-LCD1900-V2 User Manual...
Page 16
OSD Menu Settings Page 15 of 37 TR-LCD1900-V2 User Manual...
Page 17
OSD Menu Settings Page 16 of 37 TR-LCD1900-V2 User Manual...
Page 18
OSD Menu Settings Page 17 of 37 TR-LCD1900-V2 User Manual...
Page 19
Touch Screen Calibration (If Option Included) 1. Insert the TR-LCD Touchscreen Drivers & User Manual CD into the CD-DVD-R/W drive. 2. Open the Touch folder. 3. Open the EETI_Resistive_Capactive folder. **(Open the ELO folder if monitor was ordered with ELO touch controller.)** Page 18 of 37 TR-LCD1900-V2 User Manual...
Page 20
Touch Screen Calibration (If Option Included) 4. Open the eGalaxTouch_5.11.0.9126_Win2K_XP_Vista_7 folder. 5. Double-click the setup icon. Page 19 of 37 TR-LCD1900-V2 User Manual...
Page 21
Touch Screen Calibration (If Option Included) 6. Leave the Install PS/2 interface driver box unchecked. Click Next. 7. Uncheck the Install RS232 interface driver box. Click Next. Page 20 of 37 TR-LCD1900-V2 User Manual...
Page 22
Touch Screen Calibration (If Option Included) 8. Leave None selected. Click Next. 9. Leave Support Multi-Monitor System box check marked. Click Next. Page 21 of 37 TR-LCD1900-V2 User Manual...
Page 23
Touch Screen Calibration (If Option Included) 10. Choose destination location to install driver. Click Next. 11. Click Yes to perform an initial four-point calibration. Page 22 of 37 TR-LCD1900-V2 User Manual...
Page 24
Touch Screen Calibration (If Option Included) 12. Touch the 4 red points (red dot inside circle within 4 pointing arrows) with a stylus and then click OK. You have 15 seconds to touch each point. 13. Open the Touch Screen software and select Setting. Page 23 of 37 TR-LCD1900-V2 User Manual...
Page 25
Touch Screen Calibration (If Option Included) 14. Select 25 Points calibration for Linearization Style and then click Apply. 15. Under the Tools tab, select the Linearization button. Page 24 of 37 TR-LCD1900-V2 User Manual...
Page 26
Touch Screen Calibration (If Option Included) 16. Touch all 25 red points (red dot inside circle within 4 pointing arrows) with a stylus and then click OK. You have 15 seconds to touch each point. Page 25 of 37 TR-LCD1900-V2 User Manual...
Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, Troubleshooting Tips please contact Transduction. Symptom Check List Solutions No images on the screen. I Is the power cord connected properly? Check the power cord connection and supply.
Troubleshooting Tips Check the following items if there is trouble with the monitor. 1. Check if the power cord and the cable are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.) 3.
