Page 1: User Manual

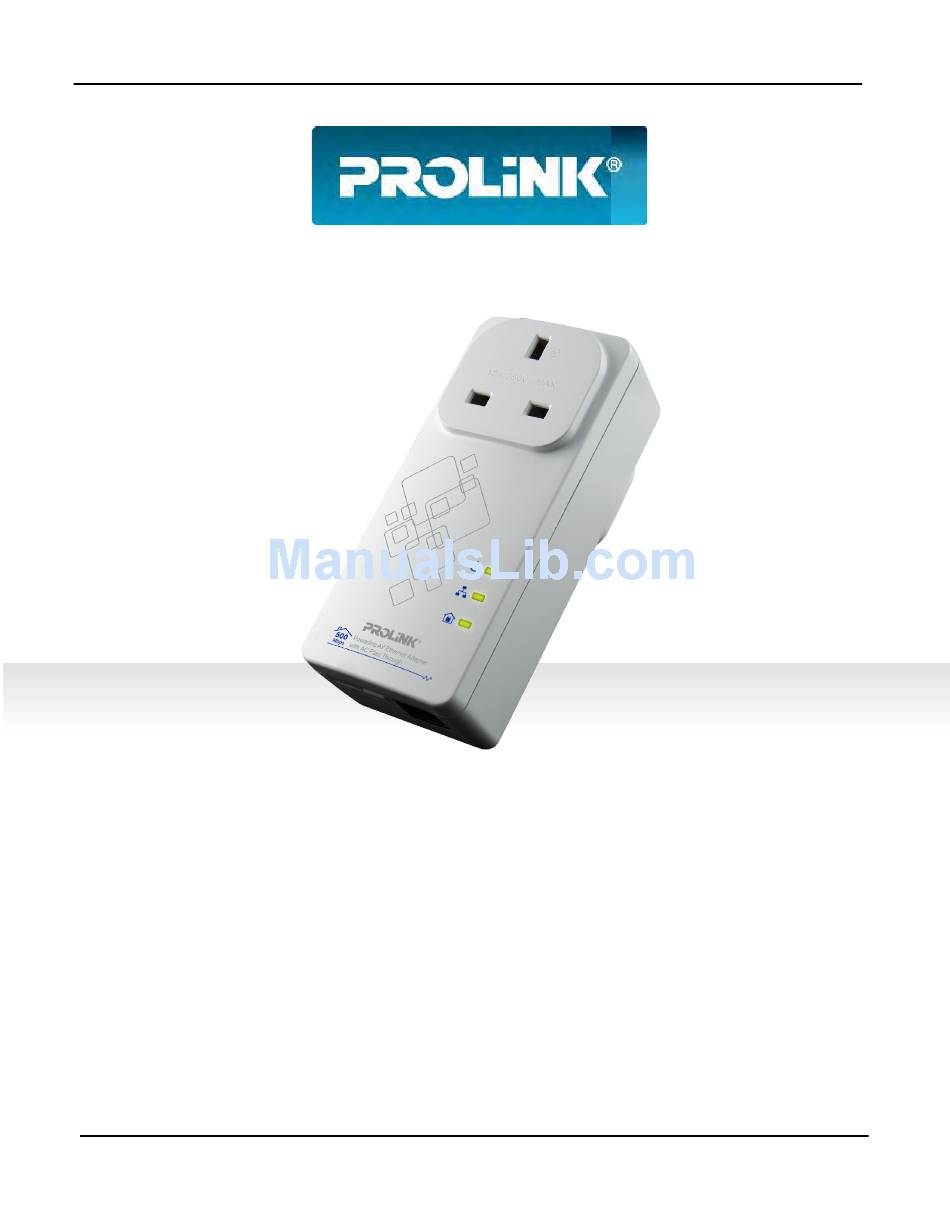

PROLiNK PPL1500P User Manual www.prolink2u.com PROLiNK PPL1500P 500Mbps Powerline AV Adapter with AC Pass Through / Gigabit LAN Port User Manual Version 1.00 Version 1.00 Page 1 of 17 PPL1500P... -
Page 2: Table Of Contents
PROLiNK PPL1500P User Manual www.prolink2u.com Table of Contents Table of Contents …............................. 2 CE Radia on Norm …........................... 3 Safety Warning …............................3 Important Safety Instr s …........................4 Disposal ce …............................4 on …..............................5 Copyright …..............................5 Trademarks …............................... 5 Sec on 1 : Introduc on ….......................... -
Page 3: Ce Radia On Norm
PROLiNK PPL1500P User Manual www.prolink2u.com CE Radiation Norm This equipment has been tested and found to comply with the limits of the European Council Directive 2004/108/EC on the approximation of the law of the member states relating to EN 55022 Class B, EN61000-3-2, EN 61000-3-3, EN50412-2-1,CISPR/I/XX/CDV OptB and Safety EN 60950-1. -
Page 4: Important Safety Instr S
PROLiNK PPL1500P User Manual www.prolink2u.com Important Safety Instructions open this product or attempt to service this product; it may expose you to dangerous high voltage and other risks. operate this product near water. place or operate near or over radiator or heat register. -
Page 5: Ca On
Trademarks PROLiNK® is a trademark of Fida International (S) Pte Ltd and is manufactured under its authority. All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. -
Page 6: Sec On 1 : Introduc On
With data rates of 500Mbps, full multimedia applications can easily be supported throughout the whole house in addition to Internet access. The PPL1500P uses the existing power lines installed in a home as a path to transmit digital data, voice, audio and video between devices. -
Page 7: Features
PROLiNK PPL1500P User Manual www.prolink2u.com Features 1.1. 1 Powerline AV High speed data transfer rate up to 500Mbps HomePlug standard compliant Works with AC input of 100V ~ 240V Plug-and-Play (PnP) configuration High-speed Powerline AV Adapter with Gigabit Ethernet / LAN interface... -
Page 8: Packaging Contents
PROLiNK PPL1500P User Manual www.prolink2u.com Packaging Contents ® PPL1500P Powerline AV Adapter package contains the following items: ® PPL1500P Powerline AV Adapter • One RJ45 Ethernet (LAN) Network Cable • One Quick Installation Guide • One CD-ROM (Utility Software / Quick Installation Guide) •... -
Page 9: Mechanism
PPL1500P Powerline AV Adapter supports up to 500Mbps data rate. With this high speed ® connection rate, the PPL1500P allows you to setup a high speed home network by using your home existing electrical wiring. Simply plug the PPL1500P into an ordinary power outlet to extend your Cable/xDSL broadband connection or existing LAN network to any other electrical outlet in any rooms of your house. -
Page 10: Physical Interfaces
PROLiNK PPL1500P User Manual www.prolink2u.com Physical Interfaces ® PPL1500P Powerline AV Adapter . There are two physical interfaces on this One 10/100/1000Mbps Gigabit LAN port connected to PC LAN card or Gigabit LAN Port broadband device. Power Plug Power Plug connected to any 100 ~ 240V AC power socket. -
Page 11: Hardware Co S - Computer
For those computers you wish to be networked by ® PPL1500P Powerline AV Adapter, each of the computers must be properly connected with a PPL1500P through an Ethernet (RJ-45) network cable. Following are the steps to properly connect the PPL1500P to your computer: Power off your PC or laptop computer. -
Page 12: Hardware Co Ons - Internet
ADSL broadband Router. d. Plug the PPL1500P into a wall socket next to the computer. Turn on your computer. Check and confirm that the Power, Powerline and LAN LEDs on the PPL1500P are ON. The hardware connection mechanism is shown below: RJ45... -
Page 13: Sec On 3 : Advance Feature - How To Use The Secure / Reset Bu Ons
PROLiNK PPL1500P User Manual www.prolink2u.com Section 3 : Advance Features - How to use the SECURE / RESET Button Secure Pairing ( Secured with 128 bits-AES) The Powerline standard uses 128-bit AES (Advanced Encryption Standard) to safely transmit data between Powerline Adapters. For the Powerline Adapters to communicate with each other they all need to use the same Network Membership Key (NMK). -
Page 14: Secure Bu On Behavior
PROLiNK PPL1500P User Manual www.prolink2u.com Desktop PC Internet ADSL Router Laptop Device C wants to join an existing network group AB ： Step 1: Press the SECURE button of device C for more than 10 seconds until the Power / LAN / Powerline LEDs are all turn off, then only release the SECURE button. -
Page 15: Appendix A : Tr Ng
Make sure the power outlet is active (working) by plugging another electric device into it. Re-plug the PPL1500P to the power outlet again. If the Power LED still failed to light up, contact your local dealer for technical support. -
Page 16: Appendix B : Energy-Related Products Informa
PROLiNK PPL1500P User Manual www.prolink2u.com Appendix B : Energy-Related Products Information In order to conform to the CE Energy–Related Products Directive 2009/125/EC, please ask the local distributor, supplier or importer below information: The related information of Recycle or disposal •... -
Page 17: Appendix C : Technical Support
PROLiNK PPL1500P User Manual www.prolink2u.com Appendix C : Technical Support FREE TECHNICAL SUPPORT HOTLINE Monday to Friday, 9.00am – 6.00pm (Closed on Saturdays, Sundays and Public Holidays) SINGAPORE : (65) 6357 0666 MALAYSIA : (60) 3 8023 9151 INDONESIA : (62) 21 3483 1717 WALK-IN SUPPORT Monday to Friday, 9.00am –...
