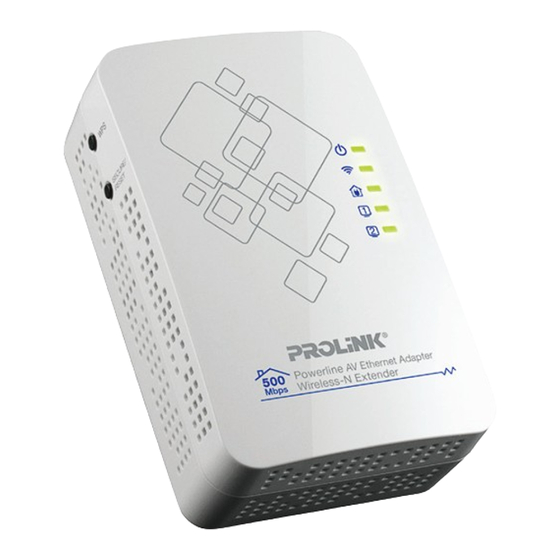

PROLiNK PPL1501N Quick Start Manual

500mbps powerline av adapter with wireless-n access point dual lan ports
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
MODEL NO:
PPL1501N
Quick Installation Guide
500Mbps Powerline AV Adapter with
Wireless-N Access Point Dual LAN Ports
Version 1.10
(English / Indonesian)
BEFORE GETTING STARTED
This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device,
please visit our website at www.prolink2u.com. All specifications are subject to the manufacturer's configuration at the time of shipping and may change without prior
notice, written or otherwise.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PPL1501N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROLiNK PPL1501N

Summary of Contents for PROLiNK PPL1501N

  • Page 1 MODEL NO: PPL1501N Quick Installation Guide 500Mbps Powerline AV Adapter with Wireless-N Access Point Dual LAN Ports Version 1.10 (English / Indonesian) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.

  • Page 2: Package Contents

    All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice, written or otherwise. Items: One (1) unit of PROLiNK ® PPL1501N One (1) unit of RJ45 Ethernet Network Cable...
  • Page 3 2. Overview Front View Left View Right View Bottom View ON / OFF SECURE/ RESET Powerline AV Ethernet Adapter Mbps Wireless-N Extender LAN 2: Ethernet port active Power: On: Power on; Blinking: WPS trigger; Off: Power off Blink: Ethernet port in data transmission Wireless: On: Wireless enable;...

  • Page 4: Hardware Installations

    3. Hardware Installations Powerline AV Ethernet Adapter Wireless-N Extender Mbps ROOM3 ROOM4 PPL1500P IP Cam Powerline AV Ethernet Adapter Mbps Wireless-N Extender PPL1501N Gaming Console Powerline AV Ethernet Adapter Mbps Wireless-N Extender ROOM1 ROOM2 Powerline AV Ethernet Adapter Mbps Wireless-N Extender Powerline...
  • Page 5 Ethernet Network cable (RJ-45) provided. Step 3. Connect the PPL1501N to the PC / Internet TV / Set-Top Box / Media Player / Blu-Ray Player / Network Access Storage(NAS) / IP Camera / Gaming Console with the Ethernet Network cable (RJ-45) provided.
  • Page 6 4. Con guring PPL1501N with Wireless Security Password Before enter the web UI, please make sure your PC/Laptop's LAN TCP/IP settings is in the network of 192.168.123.x (x cannot be 253), for example, you can set the IP address as "192.168.123.5"...
  • Page 7 4. Con guring PPL1501N with Wireless Security Password Step 2. Click on <Wireless> --> <Security>. Select the Security Mode and Type, put your security password in the field below. Click on <Save>. EN 6...
  • Page 8 4. Con guring PPL1501N with Wireless Security Password Step 3. Click on <Apply Changes> to reboot PPL1501N. Your PPL1501N wireless network is secured with password after rebooting. EN 7...

  • Page 9: Isi Kemasan

    All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice, written or otherwise. Items: Satu (1) unit PROLiNK ® PPL1501N Satu (1) unit Kabel Jaringan RJ45...
  • Page 10 2. Penjelasan Tampak Depan Tampak Sisi Kiri Tampak Sisi Kanan Tampak Sisi Bawah ON / OFF SECURE/ RESET Powerline AV Ethernet Adapter Mbps Wireless-N Extender LAN 2: Hidup: Ethernet aktif Power: Hidup: Powerline aktif; Berkedip: WPS berfungsi; Berkedip: Transfer data melalui ethernet Mati: Powerline tidak aktif Mati: Ethernet tidak aktif...
  • Page 11 Powerline AV Ethernet Adapter Wireless-N Extender Mbps Ruangan 3 Ruangan 4 PPL1500P Powerline AV Ethernet Adapter Mbps Wireless-N Extender PPL1501N Gaming Console Powerline AV Ethernet Adapter Mbps Wireless-N Extender Ruangan 1 Ruangan 2 Powerline AV Ethernet Adapter Mbps Wireless-N Extender...
  • Page 12 Langkah 2. Hubungkan PPL1501N ke modem ADSL, modem kabel atau Fiber Optic router dengan kabel Jaringan Ethernet (RJ-45) yang disediakan. Langkah 3. Hubungkan PPL1501N ke PC / Internet TV / Set-Top Box / Media Player / Blu-Ray Player / Network Access Storage (NAS) / Kamera / Konsol Permainan, IP Camera dengan kabel Jaringan Ethernet (RJ-45) yang disediakan.
  • Page 13 4. Kon gurasi PPL1501N Dengan Pengamanan Wireless Sebelum masuk pada Web Konfigurasi, pastikan pada konfigurasi LAN TCP/IP di computer PC/Laptop adalah 192.168.123.x (x tidak dapat menggunakan alamat 253), untuk contohnya, anda dapat mengkonfigure alamat IP address as "192.168.123.5" Penjelasan: Dapat lihatpada Lembar Panduan tentang cara mengatur IP statis ke PC / Laptop.
  • Page 14 4. Kon gurasi PPL1501N Dengan Pengamanan Wireless Langkah 2. Klik pada menu <Wireless> --> <Security>. Pilih Jenis dari Keamanan yang akan digunakan, Masukan password keamanan anda seperti pada kolom dibawah ini. klik pada tombol <Save>. ID 6...
  • Page 15 4. Kon gurasi PPL1501N Dengan Pengamanan Wireless Langkah 3. klik tombol <Apply Changes>maka PPL1501N akan melakukan restart. PPL1501N anda sudah dilindungi password keamanan setelah selesai restart. ID 7...
  • Page 16 1. Garansi Hanya Berlaku Jika : a. Diisi dengan jelas, lengkap dan benar. b. Jika telah dikirimkan dan diterima oleh PT. Prolink Intidata Nusantara. c. Memperlihatkan kartu garansi asli dan nota pembelian pada saat klaim service. 2. Garansi Tidak Berlaku Apabila : a.
  • Page 17 Tempelkan perangko disini. Hanya untuk pengeposan di Indonesia Kepada Yth. Customer Service PT. PROLINK INTIDATA NUSANTARA Jl. Cideng Barat No.79 Jakarta Pusat 10150 - Indonesia KARTU GARANSI (for Indonesia region only)
  • Page 18 S/N : Produk Nama ———: Model : Name Alamat Tgl. Pembelian —————— : ————: Purchase Date Address Dealer : ——— Toko Kota Kota: Kode Pos: ——— City Tel / Fax : Email : Pelanggan PT. Prolink Intidata Nusantara Cap Toko...
  • Page 19 S/N : Produk Nama ———: Model : Name Alamat Tgl. Pembelian —————— : ————: Purchase Date Address Dealer : ——— Toko Kota Kota: Kode Pos: ——— City Tel / Fax : Email : Pelanggan PT. Prolink Intidata Nusantara Cap Toko...
  • Page 20 Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective...
