Summary of Contents for PROLiNK PPL1201

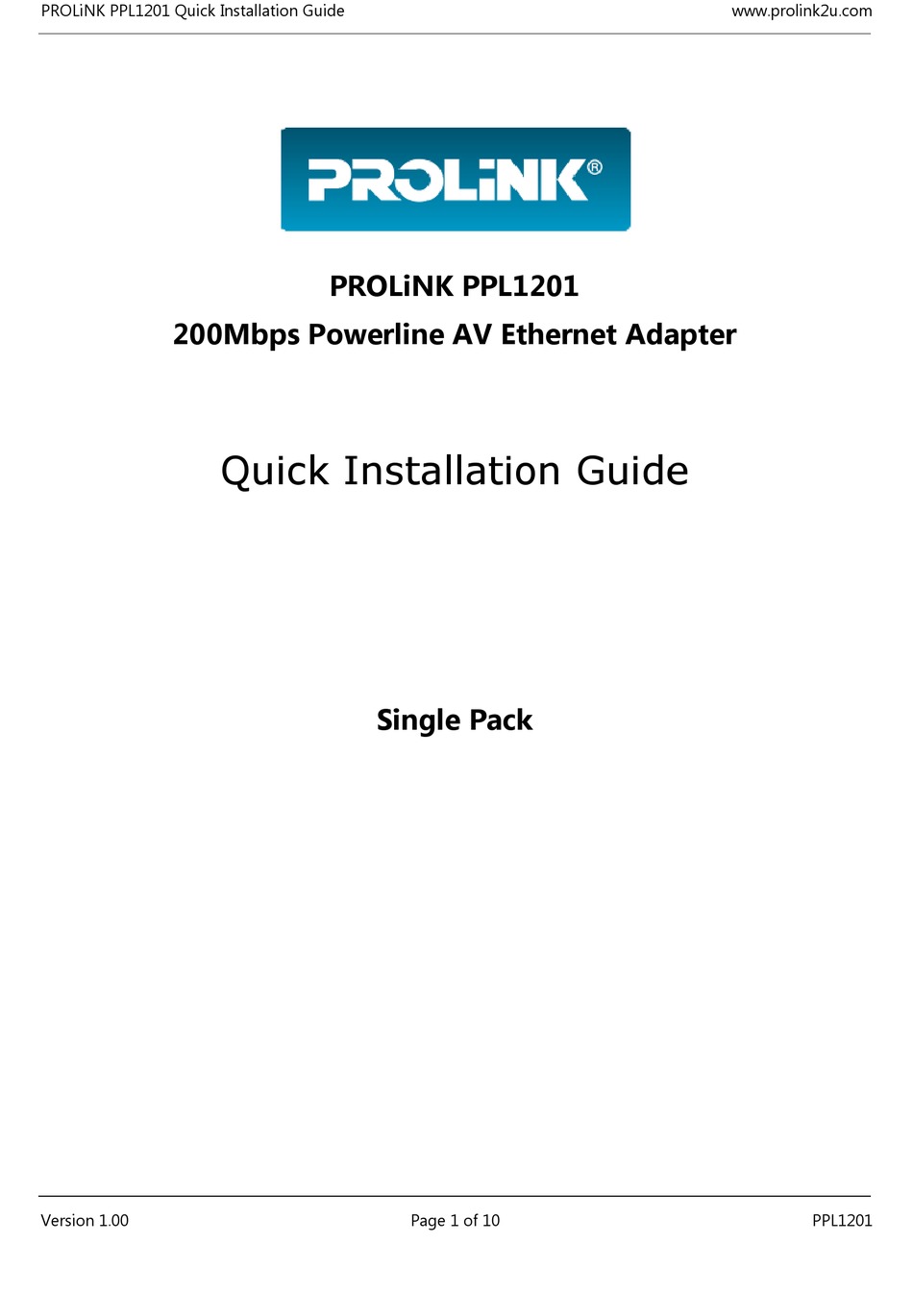

- Page 1 ROLiNK PPL12 201 Quick In stallation Gu uide w.prolink2u.c PROLi iNK PP PL1201 200M Mbps P Powerli ine AV Ethern net Ada apter Quick k Inst tallat tion G Guide ngle Pa rsion 1.00 Page 1 of 10 PPL1 1201...
- Page 2 ROLiNK PPL12 201 Quick In stallation Gu uide w.prolink2u.c CE Rad diation Norm This e equipment ha as been teste ed and foun d to comply with the lim mits of the Eu uropean Cou ncil Direct tive 89/336/E EEC on the a approximatio on of the law w of the me...
- Page 3 PROLiNK® ® is a tradem mark of Fida I International (S) Pte Ltd a and is manuf factured und der its autho rity. All produc...
-
Page 4: Section 1 : Introduction
The PROLiNK® PPL1201 Powerline Ethernet Adapter supports up to 200Mbps data rate over the existing household power circuit. With data rates of 200Mbps, full multimedia application can easily be supported throughout the whole house in addition to Internet access. -
Page 5: Section 2 : System Requirements
7. 50 MB of free disk space (Minimum) 8. CD-ROM Drive Section 4 : Package Contents The PROLiNK® PPL1201 Powerline Ethernet Adapter package contains the following items: 1. One PROLiNK® PPL1201 Powerline Ethernet Adapter 2. One CAT-5 Ethernet (LAN) Cable 3. -
Page 6: Section 5 : Hardware Connection - Computer
Ethernet port. 3. Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port. 4. Plug the PROLiNK® PPL1201 Powerline Ethernet Adapter into a wall socket next to the computer. 5. Turn on your computer. 6. Check and confirm that the Power and Ethernet LEDs on the PROLiNK® PPL1201 Powerline Ethernet Adapter are ON. -
Page 7: Section 6 : Hardware Connection - Internet
3. Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL broadband Router. 4. Plug the PROLiNK® PPL1201 Powerline Ethernet Adapter into a wall socket next to the computer. 5. Turn on your computer. -
Page 8: Section 7 : Installation Of The Management Utility
PROLiNK PPL1201 Quick Installation Guide www.prolink2u.com Section 7 : Installation of the Management Utility Follow the following procedures to properly installing the provided Management Utility: Step 1: Power on your computer and insert the provided CD into the CD-ROM drive, the following screen will pop- up automatically. - Page 9 PROLiNK PPL1201 Quick Installation Guide www.prolink2u.com Step 3: After the installation, a shortcut to the “PowerPacket Utility” application icon is provided on the windows desktop. Version 1.00 Page 9 of 10 PPL1201...
- Page 10 SUPPORT SING GAPORE : support@ @fida.com • MALA AYSIA : support_ _my@fida.co • INDO ONESIA : support@ @prolink.co. • Regi ster On nline Fo or Your Produc ct Warr ranty w.pr rolink k2u. rsion 1.00 Page 10 of 1 PPL1...
- Page 11 ROLiNK PPL12 201 Quick In stallation Gu uide w.prolink2u.c PROLi iNK PP PL1201 200M Mbps P Powerli ine AV Ethern net Ada apter emba ar Pa ndua an In stala Satu Se rsion 1.00 Page 1 of 10 PPL1 1201...
- Page 12 ROLiNK PPL12 201 Quick In stallation Gu uide w.prolink2u.c turan Ti ingkat R Radiasi Perala atan ini telah h diuji dan dinyatakan sesuai deng gan batas-ba atas Dewan Eropa Direct tive 89/33 6/EEC pada pendekatan n hukum ne egara-negara a anggota y yang berkait tan dengan 55022...
- Page 13 ROLiNK PPL12 201 Quick In stallation Gu uide w.prolink2u.c Pembe eritahua n untuk k Pembu uangan Simbol pa ada produk i ni atau dala m petunjuk berarti bahw wa peralatan listrik dan e elektronik ha arus dibuang s ecara terpisa ah dari limba ah rumah tan ngga Anda.
- Page 14 Bagian 1 : Pendahuluan Selamat atas pembelian Anda yang luar biasa ini PROLiNK® PPL1201 Powerline Ethernet Adapter. Perangkat ini adalah 200Mbps AV Powerline Ethernet Adapter yang mengubah rumah Anda yang ada kabel listrik menjadi infrastruktur jaringan di mana-mana. Cukup dengan menghubungkan PROLiNK® PPL1201 Powerline Ethernet Adapter ke outlet listrik AC biasa yang akan dengan mudah memperpanjang Cable / xDSL koneksi broadband atau ada Ethernet (LAN) untuk jaringan listrik lainnya di setiap ruangan rumah tanpa perlu kabel baru.
- Page 15 2. Satu kabel CAT-5 Ethernet (LAN). 3. Satu Panduan Instalasi Singkat. 4. Satu CD-ROM (Utility / Manual / Panduan Instalasi Singkat / Acrobat Reader). Jika salah satu item di atas rusak atau hilang, segera hubungi agen PROLiNK Anda segera. Version 1.00 Page 5 of 10...
- Page 16 3. Hubungkan ujung Ethernet (RJ-45) kabel ke komputer Anda (LAN port). 4. Pasang PROLiNK® PPL1201 Powerline Ethernet Adapter ke stopkontak di dinding sebelah komputer. 5. Hidupkan komputer Anda. 6. Periksa dan pastikan bahwa Power dan Ethernet LED pada PROLiNK® PPL1201 Powerline Ethernet Adapter ON. Version 1.00...
- Page 17 Ikuti prosedur di bawah ini untuk menghubungkan Ethernet Powerline Adaptor untuk koneksi broadband ADSL Anda: 1. Matikan Broadband ADSL Router Anda. 2. Hubungkan Ethernet (RJ-45) kabel ke PROLiNK® PPL1201 Powerline Ethernet Adapter Ethernet port. 3. Hubungkan ujung lain Ethernet (RJ-45) kabel ke port Ethernet yang tersedia dari broadband ADSL Router Anda.
- Page 18 PROLiNK PPL1201 Quick Installation Guide www.prolink2u.com Bagian 7 : Instalasi dari Management Utility Ikuti prosedur berikut ini untuk menginstal secara benar Manajemen Utility yang disediakan: Langkah 1: Hidupkan komputer Anda dan masukkan CD yang disediakan ke dalam CD-ROM drive, layar berikut akan pop-up secara otomatis.
- Page 19 PROLiNK PPL1201 Quick Installation Guide www.prolink2u.com Langkah 3: Setelah instalasi selesai, shorchut icon "PowerPacket Utility" akan muncul di desktop. Version 1.00 Page 9 of 10 PPL1201...
- Page 20 SUPPORT SING GAPORE : support@ @fida.com • MALA AYSIA : support_ _my@fida.co • INDO ONESIA : support@ @prolink.co. • Regi ster On nline Fo or Your Produc ct Warr ranty w.pr rolink k2u. rsion 1.00 Page 10 of 1 PPL1...
