MODEL NO:
WN2001
Quick Installation Guide

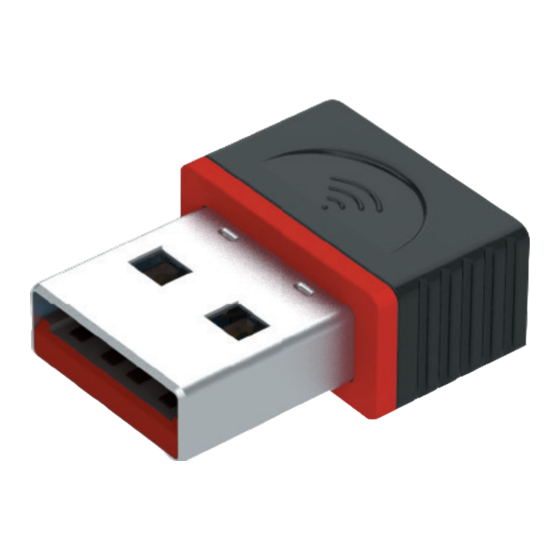

Wireless-N Nano USB Adapter (1T1R)
Version 4.00
(English / Indonesian)
BEFORE GETTING STARTED
This QIG is designed to aid you to get started with the device. If you experience problems following these
guides or need further information pertaining to the device, please visit our website at
www.prolink2u.com. All specifications are subject to the manufacturer's configuration at the time of
shipping and may change without prior notice, written or otherwise.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROLiNK WN2001
Summary of Contents for PROLiNK WN2001
- Page 1 MODEL NO: WN2001 Quick Installation Guide Wireless-N Nano USB Adapter (1T1R) Version 4.00 (English / Indonesian) BEFORE GETTING STARTED This QIG is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.
- Page 3 1. Software Installation Please follow the steps below to install your new wireless network card: 1. Insert the CD into your computer’s CDROM drive, double-click the Setup.exe icon and run the Setup.exe program. 2. Select “I accept the terms of the license agreement” and click Next. EN 1...
- Page 4 1. Software Installation 3. Select Install Driver and Mediatek WLAN Utility and click Next to proceed EN 2...
- Page 5 1. Software Installation 4. Click Install to proceed. 5. Once Finished, a Mediatek Wireless Utility will appear in your Program List. EN 3...
- Page 6 2. Hardware Installation Note: Insert the PROLiNK WN2001 Wireless-N Nano USB Adapter to the Laptop / PC’s USB port 3. Connect to a Wireless Network 1. To connect to a wireless network, double click on icon located at the bottom right hand corner of your desktop.
- Page 7 3. Connect to a Wireless Network 3. Select the wireless access point’s SSID and “ Infrastructure – Connect to AP “, after which click on 4. Select the Authentication and Encryption method. 5. Click and key in the password. 6. Click to proceed.
- Page 8 3. Connect to a Wireless Network 7. Once the setup is successful, below screen will be shown. EN 6...
- Page 9 1. Instalasi Software Ikuti langkah-langkah di bawah ini untuk menginstal USB adapter jaringan nirkabel baru Anda: 1. EnglishMasukkan CD ke drive CDROM komputer Anda, klik dua kali pada program Setup.exe. 2. Pilih “I accept the terms of the license agreement” dan klik next. ID 1...
- Page 10 1. Instalasi Software 3. Pilih Instal Driver dan Mediatek WLAN Utility dan klik Next untuk melanjutkan ID 2...
- Page 11 1. Instalasi Software 4. Klik Instal untuk melanjutkan. 5. Setelah selesai, Mediatek Wireless Utility akan tampil pada list Program Anda. ID 3...
- Page 12 2. Instalasi Hardware Catatan: Masukan USB Adapter PROLiNK WN2001 Wireless-N Nano ke port USB Laptop / PC’s 3. Sambungkan pada Jaringan Wireless 1. Untuk menyambung ke jaringan Wireless, klik dua kali ikon yang terletak di pojok kanan bawah desktop Anda.
- Page 13 3. Sambungkan pada jaringan Wireless 3. Select the wireless access point’s SSID and “ Infrastructure – Connect to AP “, after which click on 4. Select the Authentication and Encryption method. 5. Click and key in the password. 6. Click to proceed.
- Page 14 3. Sambungkan pada jaringan Wireless 7. Once the setup is successful, below screen will be shown. ID 6...
- Page 20 Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents...
