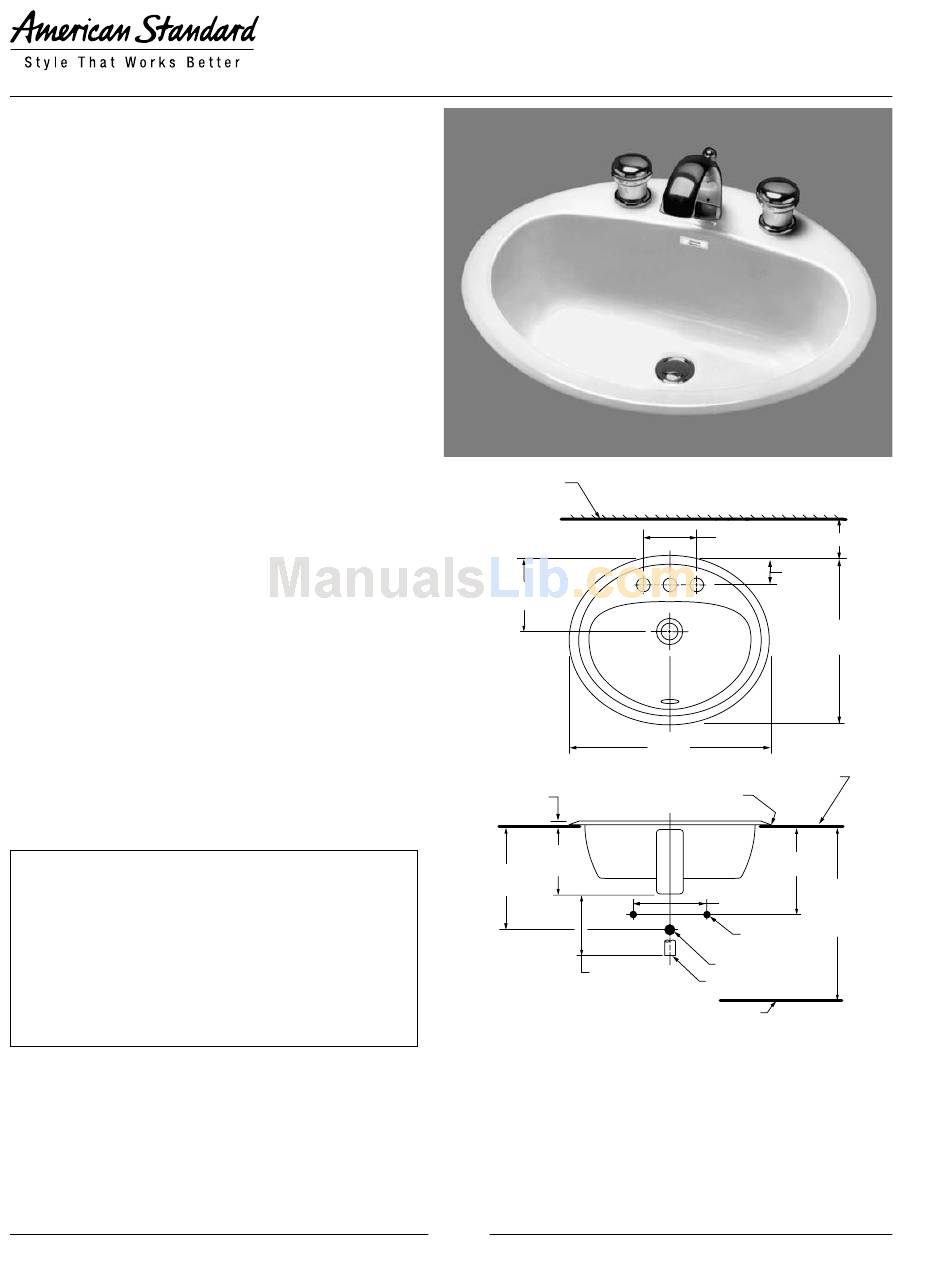

American Standard Affinity Countertop Sink 3420.001 Specification Sheet

AFFINITY™ COUNTERTOP SINK
Americast Brand Engineered Material
®
• Acid-resistant porcelain finish
• Large bowl area
• Self-rimming with cutout template supplied
• Chrome overflow trim ring
• Shown with 8871.802 Lexington spread faucet
with Fabian handles (not included)
❏ 3420.001 Center hole only
❏
3420.403 Faucet holes on 4" (102mm) centers
❏
3420.803 Faucet holes on 8" (203mm) centers
(illustrated)
Nominal Dimensions:
527 x 445mm
(20-3/4" x 17-1/2")
Bowl sizes:
483mm (19") wide
292mm (11-1/2") front to back
178mm (7") deep
Americast Brand engineered material is a
®
composition of porcelain bonded to enameling grade
metal, bonded to a patented structural composite.
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4M for Americast Plumbing Fixtures
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Optional Trim Ring for Overflow:
790730-101 Polished Brass
❏ Supplies:
❏ Trap:
* See faucet section for additional models available
© 2008 AS America Inc.
AMERICAST
FINISHED WALL
OR SPLASHBACK
197mm
(7-3/4)
10mm
(3/8)
210mm
* (8-1/4)
356mm
(14)
178mm
(7)
NOTES:
* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of
tolerances established by ANSI Standard A112.19.4.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided leaflet.
J56
AFFINITY™
COUNTERTOP SINK
BRAND ENGINEERED MATERIAL
®
203mm
(8)
70mm
(2-3/4)
527mm
(20-3/4)
COUNTERTOP
(BY OTHERS)
SEALING
COMPOUND
*
276mm
(10-7/8)
203mm
(8)
SUPPLIES
AS REQ'D
1-1/4 O.D. WASTE
1-1/4 O.D. TAILPIECE
FINISHED FLOOR
Revised 2/08
OPTIONAL
445mm
(17-1/2)
787mm
(31) TO
FINISHED
FLOOR
