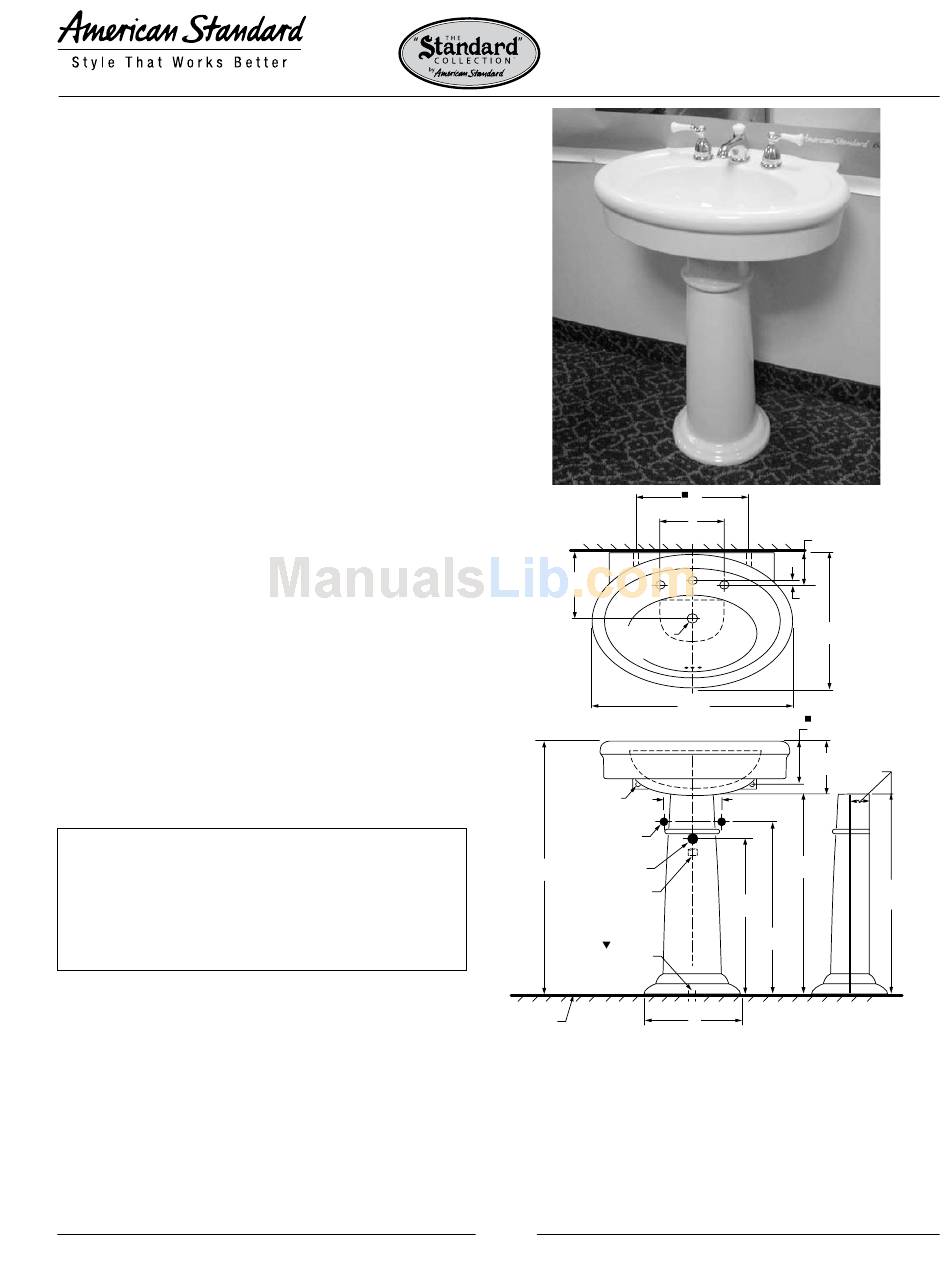

American Standard Standard Collection Pedestal Sink 0283.800 Features & Dimensions

Standard Collection

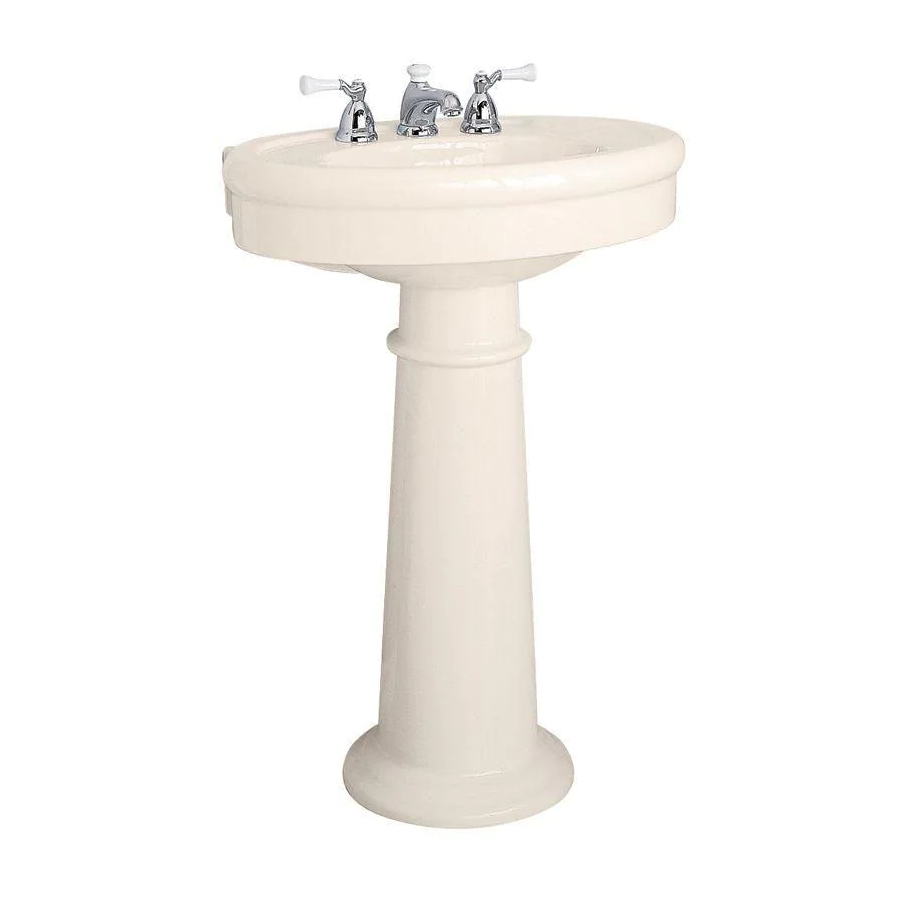

• Authentically styled circa "1922" oval pedestal
• Made from fine fireclay
• Front overflow
• Supplied with mounting kit
• Design matched to Standard Collection
• Right Height™ for greater comfort
• Recommended design matched 8" spread faucet
#2881 available in chrome or satin finish
❏ 0283.800 Faucet holes on 8" (203mm) centers
Nominal Dimensions:
26-3/4" x 20" x 36"
(679 x 508 x 914mm)
Separate Components:
❏ 0283.008 Pedestal top 8" (203mm) centers
❏
0067.000 Pedestal only
Bowl sizes:
16-3/4" (425mm) wide
11-1/4" (286mm) front to back
6-1/4" (159mm) deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.9M for Non-Vitreous
Ceramic Fixtures
• CAN/CSA B45 Series
To Be Specified:
❏ Color: ❏ White ❏ Linen
❏ Recommended Faucet: 8" spread No. 2881
❏ Faucet Finish: Chrome or Satin
❏ Supplies:
❏ 1-1/4" Trap:
© 2008 AS America Inc.
® PEDESTAL SINK
fixtures
®
Standard Collection
(330mm)
(203mm)
10-1/4
(260mm)
1-3/4" DIA.
STD. DRAIN
OUTLET
3/8" DIA.
HOLES FOR
ANCHOR BOLTS
SUPPLIES AS
REQUIRED
36 1-1/4 O.D.
(914mm) WASTE
1-1/4 O.D.
TAILPIECE
3/8" DIA.
BASE ANCHOR
SCREW HOLE
FINISHED
FLOOR
NOTES:
* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.9M.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J7
PEDESTAL SINK
13
8
3-7/8
(98mm)
3/4
(19mm)
20
(508mm)
26-3/4
(680mm)
6-3/4
(171mm)
7-1/2
DRAIN
(191mm)
CHASE
8 (203mm)
28-1/2
(724mm)
*
22
(559mm)
*
24
(610mm)
PEDESTAL
13
SIDE SECTION
(330mm)
Revised 2/08
®
FIRE CLAY
OPEN
TO
FLOOR
