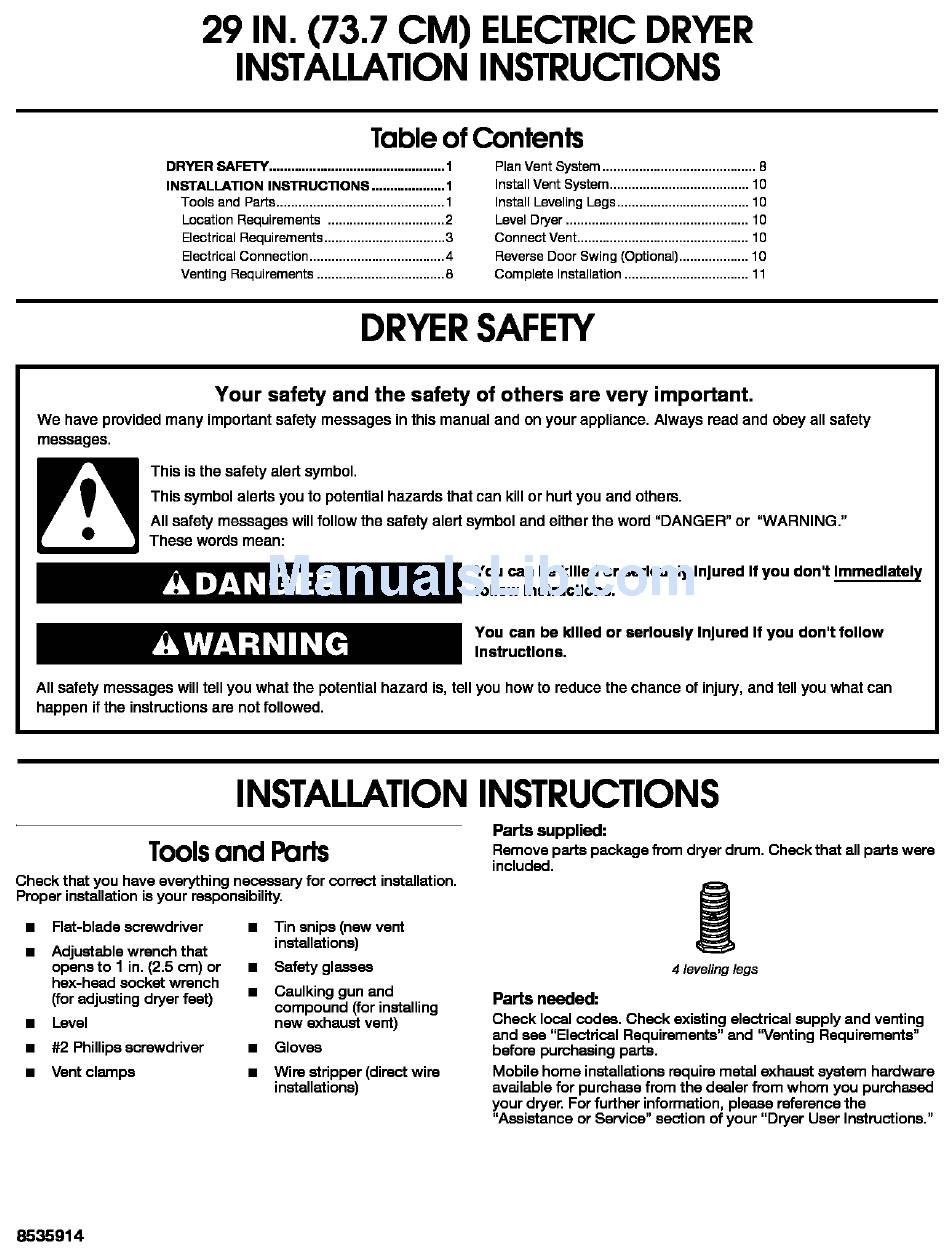

29 IN. (73.7 CM) ELECTRICDRYER
INSTALLATION INSTRUCTIONS
Table of Contents
DRYER SAFETY ................................................
1
INSTALLATION
INSTRUC'nONS
.................... I
Tools and Parts..............................................
I
................................ 2
Electrical Requirements ................................. 3
Electrical Connection .....................................
4
................................... 8
Plan Vent System ..........................................
B
Install Vent System ......................................
10
Install Leveling Legs ....................................
10
Level Dryer ..................................................
10
Connect Vent ...............................................
10
Reverse Door Swing (Optional) ................... 10
Complete Installation ..................................
11
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important
sarety
messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously Injured If you don't Immedlatel_
follow Instructions.
You can be killed or seriously Injured If you don't follow
Instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
INSTALLATION INSTRUCTIONS
Toolsand Parts
Check that you hove everything necessary for correct installation.
Proper installation is your responsibility.
Flat-blade screwdriver
Tin snips (new vent
Adjustable wrench that
installations)
openstol
in.(2.5crn) or
Ssfetyglaeses
hex-heod socket wrench
(for adjusting dryer feet)
Caulking gun and
compound (for installing
Level
new exhaust vent)
#2 Phillips screwdriver
Gloves
Vent clamps
Wire stripper (direct wire
installations)
Parts supplied:
Remove parts package from dryer drum, Check that oil parts were
included,
4 leveling legs
Parts needed:
Check local codes. Check existing electrical supply and venting
and see "Electrical Requirements" and '_/enting Requirements"
before purchasing ports.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryen For further information, please reference the
"Assistance or Service" section of your "Dryer User Instructions."
8535914

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM80000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inglis IM80000

  • Page 1: Table Of Contents

    29 IN. (73.7 CM) ELECTRICDRYER INSTALLATION INSTRUCTIONS Table of Contents DRYER SAFETY ..........Plan Vent System .......... INSTALLATION INSTRUC'nONS ....I Install Vent System ........Tools and Parts..........Install Leveling Legs ........Location Requirements ........ 2 Level Dryer ..........Connect Vent ..........Electrical Requirements .........
  • Page 2: Location Requirements

    Dryer Dimensions Location Requirements (J.74 =rd tJ10¢m) Explosion Hazard Keep flammable materlals and vapors, such as geaollne, away from dryer. Place dryer at least 18 Inches (46 cm) above the floor for a garage Installatlon. Fallura to do so can result In death, exploslon, or flra. You will need A location that allows for proper exhaust installation.
  • Page 3 Mobile Home-Additional Installation Requirements If your outlet looks like this: © This dryer is suitable for mobile home installations, The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, "ntis 24, HUD Part 280), Mobile home installations require: 4-wire receptacle(14-30R)
  • Page 4: Electrical Connection

    Electrical Connection Power Supply Direct Wire Cord Fire Hazard Fire Hazard Use 10 gauge solid copper wire. Use a new UL approved 30 amp power supply cord. Use a UL approved strain relief. Use a UL approved strain relief. Disconnect power before making electrical connections. Disconnect power before making electrical connections.
  • Page 5 Remove center terminal block screw. Electrical Connection Options Remove appliance ground wire (green with yellow stripes) If your home has: And you will be Go to Section from external ground connector screw. Fasten it under center, connecting to: silver colored terminal block screw. 4-wire receptacle A UL listed, 1201 4-wire connection:...
  • Page 6 Place the hooked end of the neutral wire (white or center wire) 4-wire connection: Direct Wire of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. IMPORTANT: A 4-wire connection is required for mobile homes "nghten screw.
  • Page 7 Loosen or remove center terminal block screw. Loosen or remove center terminal block screw. Connect neutral wire (white or center wire) of power supply Place the hooked end of the neutral wire (white or center wire) cord to the center, silver colored terminal screw of the terminal of power supply cable under the center screw of terminal block.
  • Page 8: Venting Requirements

    4. "nghten strain relief screws. • The dryer exhaust must not be connected into any gas vent, chimney, wail, ceiling, or a concealed space of a building. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. •...
  • Page 9 Standard exhaust installation with rigid metal or flexible Determine Vent Length metal vent 1. Select the route that will provide the straightest and most direct path outdoors. Plan the installation to use the fewest number of elbows end turns. When using elbows or making turns, allow as much room as possible.
  • Page 10: Installvent System

    Vent L ength C hart Place a carton corner poet under each of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner Number of Type ofvent Boxor Angled posts until it is close to its final location. Leave enough room °...
  • Page 11: Complete Installation

    Insert sorws in bottom holes on left side of cabinet. Tighten Remove door strike (5) from cabinet. Use a small, flat-blade scrws halfway. Position door so large end of door hinge slot screwdriver to carefully rmove 4 hinge hole plugs (6) on left is over screws.
  • Page 12 8535914 Benton Harbor, Michigan 49022 3/03 © 2003. All rights reserved. TM DURASAFE is a trademark of Whirlpool, U.S.A. Printed in U.S.A.
