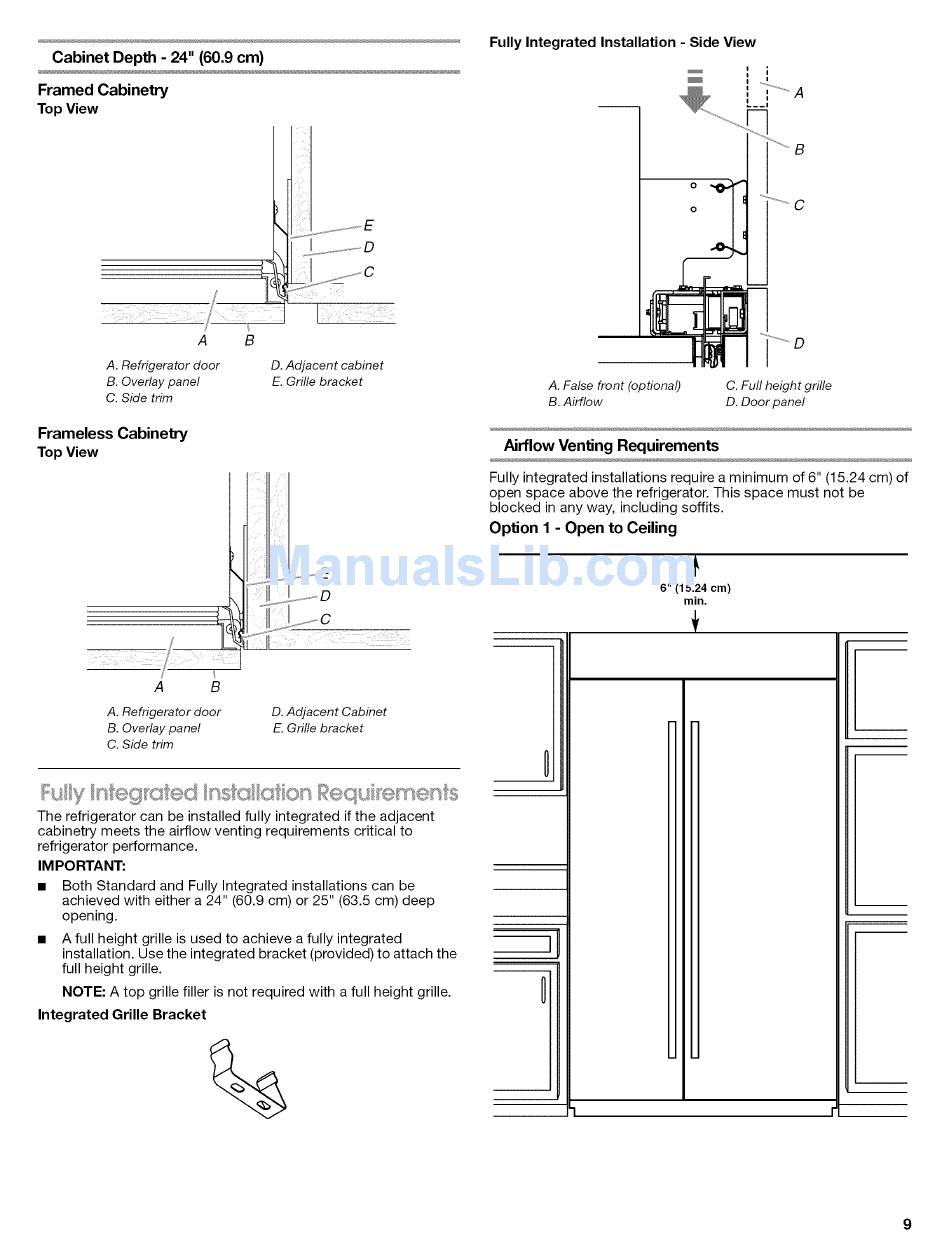

Cabinet D epth
- 24" (60.9 cm)
Framed Cabinetry
TopView
Fully Integrated Installation - Side View
A
A. Refrigerator
door
B. Overlay panel
C. Side trim
Frameless Cabinetry
TopView
B
D. Adjacent cabinet
E. Grifle bracket
A
B
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent
Cabinet
E. Grille bracket
The refrigerator can be installed fully integrated if the adjacent
cabinetry meets the airflow venting requirements critical to
refrigerator performance.
IM PORTANT:
Both Standard and Fully Integrated installations can be
achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep
opening.
A full height grille is used to achieve a fully integrated
installation. Use the integrated bracket (provided) to attach the
full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket
..... i....................
O
A. False front (optional)
C. Full height grille
B. Airflow
D. Door panel
Airflow Venting Requirements
Fully integrated installations require a minimum of 6" (15.24 cm) of
open space above the refrigerator. This space must not be
blocked in any way, including soffits.
Option I - Open to Ceiling
+
6" (15.24 cm)
min.
+
0
