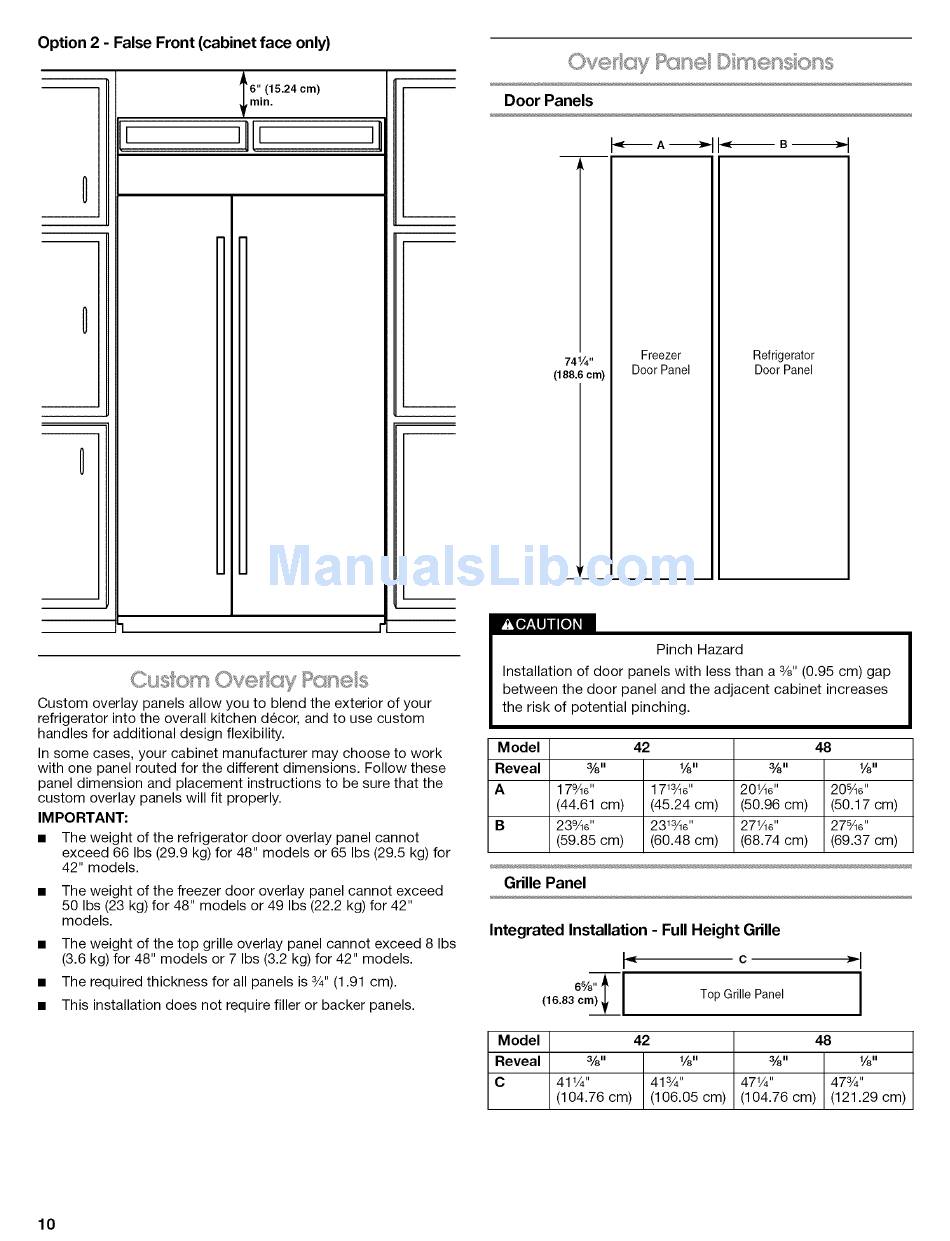

Option 2 - False Front (cabinet face only)
6" (15.24 cm)
min.
E 1lIE
I
!
!
Jl
r!_o_-*llJ i [t] _ i
Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen decor, and to use custom
handles for additional design flexibility.
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.
IM PORTANT:
• The weight of the refrigerator door overlay panel cannot
exceed 66 Ibs (29.9 kg) for 48" models or 65 Ibs (29.5 kg) for
42" models.
• The weight of the freezer door overlay panel cannot exceed
50 Ibs (23 kg) for 48" models or 49 Ibs (22.2 kg) for 42"
models.
• The weight of the top grille overlay panel cannot exceed 8 Ibs
(3.6 kg) for 48" models or 7 Ibs (3.2 kg) for 42" models.
• The required thickness for all panels is 3/4"(1.91 cm).
• This installation does not require filler or backer panels.
Door Panels
741/4"
(188.6 cm)
Freezer
Door Panel
Refrigerator
Door Panel
Pinch Hazard
Installation of door panels with less than a 3/8"(0.95 cm) gap
between the door panel and the adjacent cabinet increases
the risk of potential pinching.
M odel 42 48
Reveal %" 1/8" %" 1/8"
A 17%e" 171¾d' 201/le'' 20¾d'
(44.61 cm) (45.24 cm) (50.96 cm) (50.17 cm)
B 23%d' 231¾e'' 27Vld' 27¾d'
(59.85 cm) (60.48 cm) (68.74 cm) (69.37 cm)
Grille Panel
Integrated Installation - Full Height Grille
_ c _l
°'II I
(16.83 cm) Top GrillePanel
Model 42 48
Reveal %" %" %" 1/8"
C 41V4" 413/4" 47V4" 473/4"
(104.76 cm) (106.05 cm) (104.76 cm) (121.29 cm)
10
