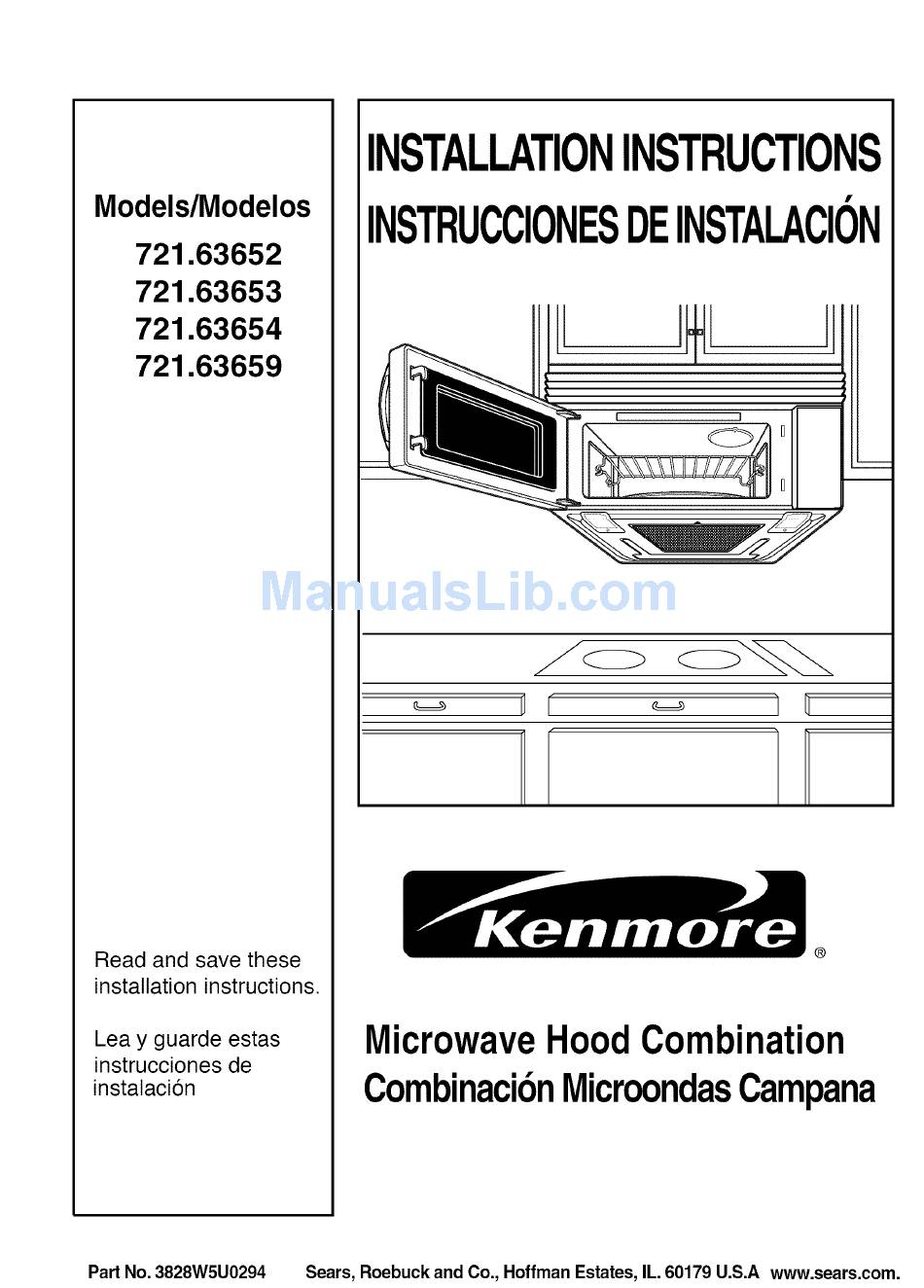

Models/Modelos
721.63652
721.63653
721.63654
721.63659
Read and save these
installation
instructions.
Lea y guarde estas
instrucciones
de
instalaci6n
INSTALLATION
INSTRUCTIONS
INSTRUCCIONES
DE INSTALACION
+
®
MicrowaveHoodCombination
Combinaci6n Microondas Campana
Part No. 3828W5U0294
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A www.sears.com.

Advertisement

Table of Contents
loading

Summary of Contents for Kenmore 721.63652

  • Page 1 INSTALLATION INSTRUCTIONS Models/Modelos INSTRUCCIONES DE INSTALACIO 721.63652 721.63653 721.63654 721.63659 ® Read and save these installation instructions. MicrowaveHoodCombination Lea y guarde estas instrucciones Combinaci6n Microondas Campana instalaci6n Part No. 3828W5U0294 Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A www.sears.com.
  • Page 2: Your Safety First

    YOUR SAFETY FIRST BEFORE YOU START Proper installation is the installer's responsibility! - Read the entire manual before you begin. - The model number label is located on the oven front. See Figure 1. - Mounting plate is located on back side of microwave oven. See Figure 2. BE SURE TO READ THE FOLLOWING SAFETY iNSTRUCTiONS:...
  • Page 3 YOUR SAFETY FIRST • THIS APPLIANCE MUST BE GROUNDED! - If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
  • Page 4 YOUR SAFETY FIRST • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. - Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath. - ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2"...
  • Page 5: Parts, Tools, Materials

    PARTS, TOOLS, MATERIALS THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and (for roof vented or wall vented installation) One dark-colored mounting screw Not Actual Size...
  • Page 6: Tools And Materials

    PARTS, TOOLS, MATERIALS YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION: Carton or other heavy material for covering the counter top. Stud finder or thin nail. Clear tape (for taping the templates to the wall) Saber saw (for cutting vent holes for roof Key hole saw (for the power cord hole) or wall venting) Phillips screwdriver (for the screws)
  • Page 7 STEP 1: PREPARE THE ELECTRICAL CONNECTIONS A WARNING A AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4 Detail. Upper NOTE: The outlet should be on a circuit dedicated to the microwave oven 120V, 60Hz., AC only, with a Cabinet ....
  • Page 8: Step 2: Prepare The Venting System

    STEP 2: PREPARE THE VENTING SYSTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 9. WARNING - FIRE HAZARD THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways: Roof Venting...
  • Page 9: Duct Length

    STEP 2: PREPARE THE VENTING SYSTEM STANDARD FITTINGS NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper sticking. DUCT LENGTH The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not exceed the equivalent...
  • Page 10: Prepare The Venting Blower

    STEP 3: PREPARE THE VENTING BLOWER Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to adjust the blower if you want wall vented or roof vented installation. A WARNING A ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING...
  • Page 11: Installation

    STEP 3: PREPARE THE VENTING BLOWER WALL VENTED INSTALLATION: 1. Remove one blower unit mounting screw and back plate blower unit one blower plate screw. Remove the blower plate from cabinet. See Figure 12. plate mounting screw 2. Carefully lift the blower unit out of the microwave oven.
  • Page 12 STEP 3: PREPARE THE VENTING BLOWER ROOF VENTED INSTALLATION" blOwerplate 1. Remove one blower unit mounting screw and mounting one blower plate screw. Remove the blower plate from cabinet. See Figure 18. 2. Carefully lift the blower unit out of the microwave oven.
  • Page 13: Step 4: Prepare The Wall And Upper Cabinet For Installation

    STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION MEASURE AND TACK/TAPE UP THE TEMPLATE 1. Using a plumb line and (metal) measuring tape, find and mark the vertical center line (_) on the back wall, as in Figure 22. 2.
  • Page 14 STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION DRILL THE HOLES IN THE WALL AND UPPER CABINET. WARNING BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL. Electrical wires could be concealed behind the wall covering and if the drill hits them you could get an electric shock.
  • Page 15 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL THE OVEN MUST BE CONNECTED 3/16" Hole on Studs TO AT LEAST ONE WALL STUD. 3/4" Hole on Drywall Only 1. Draw a vertical line on the wall at the center of the 30"...
  • Page 16 STEP 5: INSTALL THE MOUNTING P LATE TO THE WA L L TO PREPARE THE REAR WALL CUTOUT OPENING AND EXHAUST ADAPTOR/MOUNTING PLATE FOR WALL VENTING AND ROOF VENTING: NOTE: If room vented installation is used, skip this step. 1. Place the mounting plate against the rear wall as described in step 5 item 1 (page 15).
  • Page 17 STEP 6: A TTA CH THE 0 VEN TO THE WALL WARNING You will need two people to lift this microwave. Failure to use more than one person could result personal injury. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 26) at the bottom of the mounting plate.
  • Page 18 STEP 6: ATTACH THE OVEN TO THE WALL 5. Roof vented installation: See Figure 32. Install ductwork through the vent opening in the upper cabinet. Complete the venting system through the roof according to the method needed. See "PREPARE THE VENTING SYSTEM," STEP 2 on the page 8.
  • Page 19 MEMO...
