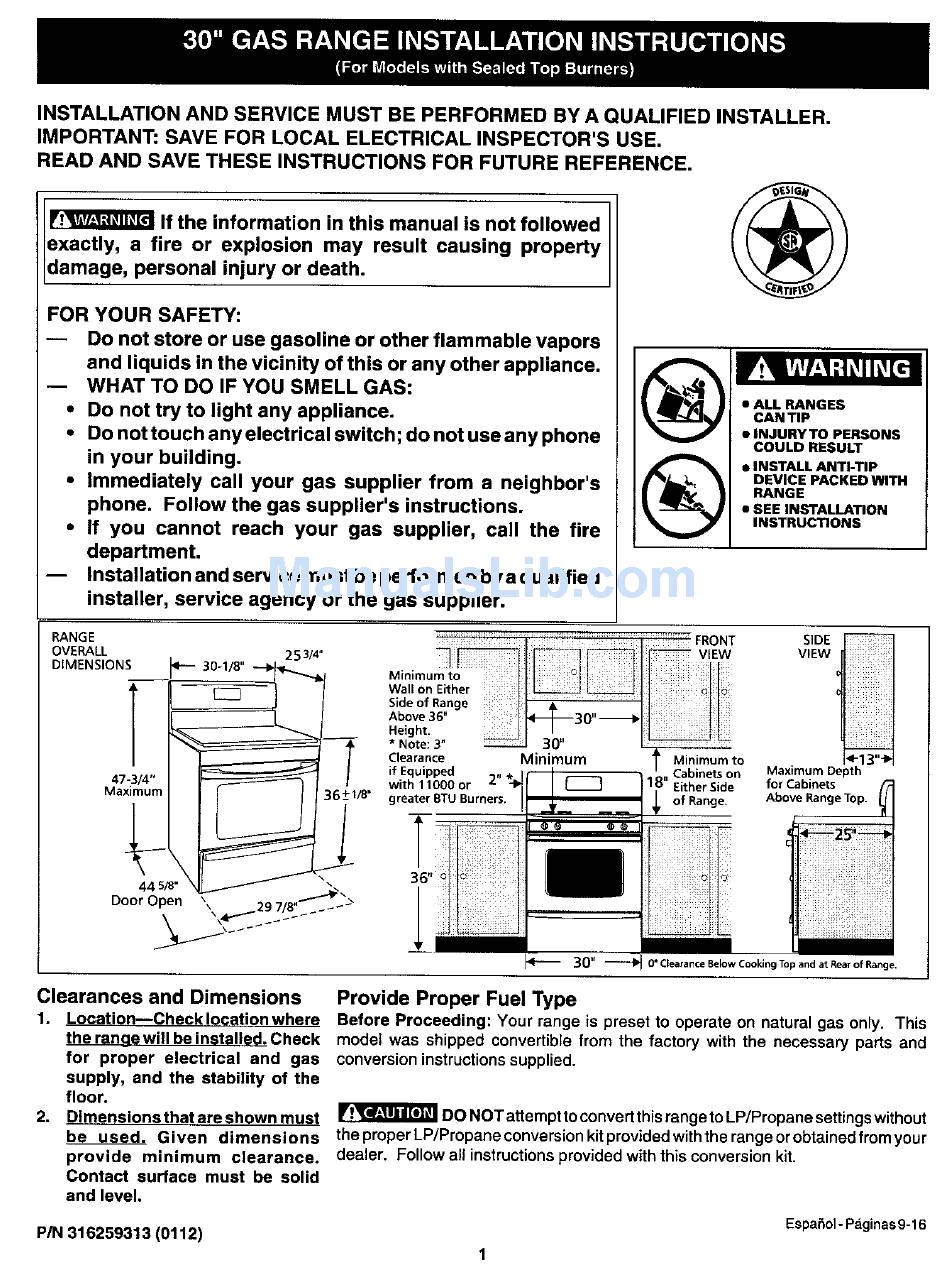

INSTALLATION
AND SERVICE MUST BE PERFORMED
BY A QUALIFIED
INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL
INSPECTOR'S
USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
If the information in this manual is not followed I
exactly,
a fire or explosion
may result causing
property
damage, personal injury or death.
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
--
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately
call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire
department.
--
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
)
A
w
--
v
V
• ALL RANGES
CAN TIP
• |NJURYTO
PERSONS
COULD RESULT
• INSTALL ANTI-TIP
DEVICE PACKED WITH
RANGE
• SEE INSTALLATION
INSTRUCTIONS
RANGE
OVERALL
253/4"
DIMENSIONS
<--
30-1/8" -_......_._
47-3/4"
_
!
Maximum
36_+i/8.
Door Open
29 7/8"""_
2>
SIDE
VIEW
* Note: 3"
Clearance
Minimum
Minimum
to
if Equipped
. Cabinets
on
Maximum
Depth
with 11000
or
I
Either Side
for Cabinets
greater BTU Burners.
of Range.
Above Range Top.
0" Clearance Below Cooking Top and at Rear of Range.
Clearances
and Dimensions
1.
2.
Provide Proper Fuel Type
Location--Checklocationwhere
Before Proceeding: Your range is preset to operate on natural gas only. This
the rn_Dg__willbein
t I_.Check
model was shipped convertible from the factory with the necessary parts and
for proper electrical
and gas
conversion instructionssupplied.
supply, and the stability of the
floor.
Dimensions that are shown must
IIr_
DO NOT attempttoconvertthisrange toLP/Propane settingswithout
be used.
Given
dimensions
theproperLP/Propaneconversionkitprovidedwiththerangeorobtainedfmmyour
provide
minimum
clearance,
dealer. Follow all instructionsprovided with this conversion kit.
Contact surface must be solid
and level.
EspaSol - Paginas 9-16
P/N 316259313 (0112)
1
