Haier GDZ22-2 User Manual

Haier electric dryer user manual.
Hide thumbs

Advertisement

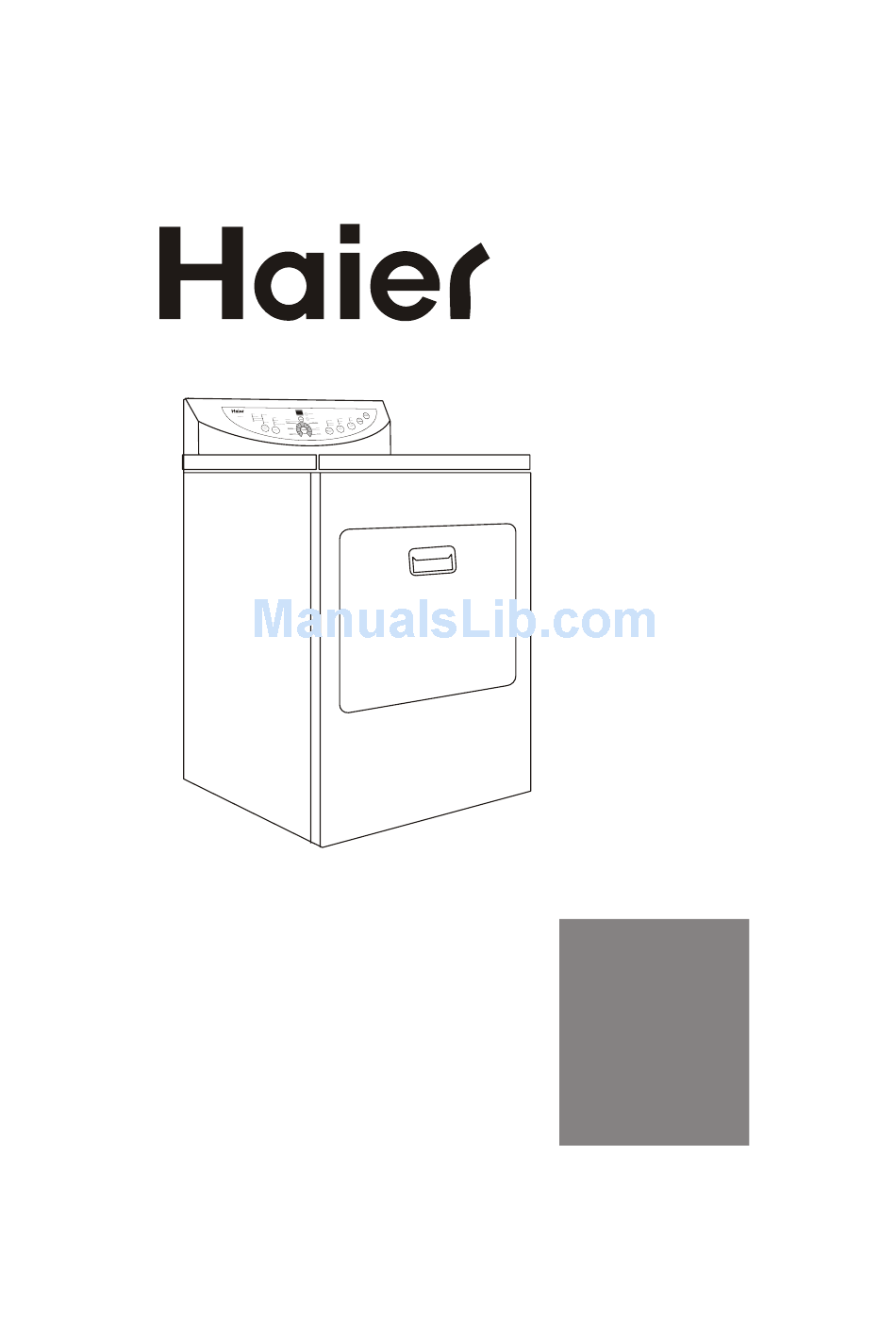

Electric
Dryer
User Manual-
Model #
GDZ22-2

Advertisement

   Related Manuals for Haier GDZ22-2

   Summary of Contents for Haier GDZ22-2

  • Page 1

    Electric Dryer User Manual- Model # GDZ22-2...

  • Page 2: Safety Instructions

    2. Do not dry articles that have been previously cleaned in,washed in, soaked in,or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. 3. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

  • Page 3

    16. This dryer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section. 17. Proper grounding must be ensured to reduce the risk of electric shock and fire. Check with a qualified electrician or service personnel if you are in doubt as to whether the dryer is properly grounded.

  • Page 4: Table Of Contents

    Tables Of Contents Safety Instructions ... 1 OPERATING INSTRUCTIONS Understanding the Control Panel Preparations before drying ... 6 Load clothes into dryer Auto Dry cycle Timed Dry cycle Rack Dry cycle ... Other Features ... Normal Operating Sounds... 12 Tips... Care and Cleaning Guide ...

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Understanding the Control Panel More Dry Cool down GDZ22-2 High Cycle completed Medium Extend tumble Less Dry Air Only(No Heat) Dryness Level Temp Time Remaining(Min) More Dry Cool down High Cycle completed Customer Medium Extend tumble Normal Less Dry...

  • Page 6

    Cycle Signal Button: (4) Used to select buzzing volume or turn off the buzzer. Timed/Cycles Button: (5) "Timed/Cycles" button will let you select your desired dry mode. Auto Dry: automatically set "Dryness Level", "Temp", "Cycle Signal", "Wrinkle Care" buttons status according to clothes loaded. Timed Dry: you can set status of "Temp", "Cycle Signal"...

  • Page 7: Preparations Before Drying

    Status lights: (11) Status lights give notification of which part of the cycle the machine is in. Nixie display: (12) Indicate remaining time (min) during cycle operation. Indicate remaining reserved time (hr) during reservation. Note: if door opened during cycle running, displays "E2" and alarms. Understanding the Function Light Indicator: The function "display light"...

  • Page 8: Load Clothes Into Dryer

    Load clothes into dryer Auto Dry cycle and Timed Dry cycle The appropriate load shall be 1/3 ~ 1/2 of the drum volume. Avoid too much load, for a certain space is needed to allow clothes free rotation for uniform and wrinkle- proof drying.

  • Page 9

    Various button initial status for "Normal program" Softer Cycle Signal Wrinkle Care Normal Cycles Indicate current program remaining time Nixie display High Temp Dryness Level More Dry Auto-program Timed/Cycles 2. Press "Cycles" button to select a suitable full automatic cycle The Normal program will be automatically selected after powering on.

  • Page 10

    3. Press "Dryness Level" button to select a suitable drying time After powering on, the clothes dryer automatically sets dryness at "More Dr y", which means the normal drying time. If other drying time is desired, press "Dryness Level" button to select a shorter time.

  • Page 11: Timed Dry Cycle

    Timed Dry cycle Time Remaining(Min) More Dry Time On(Hour) Cool down Delay High Cycle completed Customer Medium Extend tumble Normal Less Dry Air Only(No Heat) Dryness Heavy Duty Level Cycles Temp Cotton 1. Press "Power On/Off" button to power on 2.

  • Page 12: Other Features

    1. Press "Power On/Off" button to power on 2. Press "Timed/Cycles" button and select "Rack Dry" cycle After powering on, press "Timed/Cycle" button to select "Rack Dry" program. 3. Press "More Time" And "Less Time" buttons to set a suitable time After setting "Timed/Cycle"...

  • Page 13: Normal Operating Sounds

    Normal Operating Sounds The following sounds are normally heard during the operation of the dryer. Tumbling sounds: This is normal as the heavy wet clothes in the dryer are continuously being tossed around. Air rushing noise: This happens as the dryer drum spins at very high RPM and the air is rushing through the dryer drum.

  • Page 14: Care And Cleaning Guide

    Care and Cleaning Guide Lint filter needs to be cleaned before and after each use for your unit to Operate at optimum efficiency. The filter can be slid out, by pulling on The tab located on the inside of the dryer door. The filter may be Washed or vacuumed.

  • Page 15: Troubleshooting

    Troubleshooting Dryer does not operate: Check if unit is plugged in. The plug may have come loose. Check if the electrical wall socket is the correct voltage. Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.

  • Page 16: Installation Instructions

    INSTALLATION INSTRUCTIONS Select a suitable location for the dryer on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the bottom of the dryer.

  • Page 17: Exhaust System Connections

    Exhaust System Connections Requirements and Instructions 1. Do not use plastic flexible duct to exhaustthe dryer. Excessive lint can build up inside system and create a fire hazard and restrict air flow. Restricted air flow will increase dryer times. If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct.

  • Page 18: Materials

    Materials Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and approved vent hood which has a swing-out damper cover open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents.

  • Page 19

    After installation is completed, the following method must be used to determine if the exhaust system is acceptable: 1. Connect an inclined or digital manometer between the dryer and the point the exhaust system connects to the dryer. 2. Set the dryer cycle and temperature to cool down, and start the dryer.

  • Page 20: Location Of Your Dryer

    Location of Your Dryer Do Not Install Your Dryer: In an area exposed to dripping water or outside weather conditions. In an area where it will come in contact with curtains, thick carpet, or anything that will obstruct the flow of combustion and ventilation air. On carpet.

  • Page 21: Installation In Mobile Home

    Installation in Mobile Home Dryer must be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not support combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred. If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system must terminate outside the enclosure with the termination securely fastened to the...

  • Page 22: Electrical Connections

    Electrical Connections Requirements and Instructions 1. This appliance must be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding. 2. Do not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electric shock and/or fire hazard.

  • Page 23: 3-wire Cord Connections

    3-Wire Cord Connections Strain relief mounting bracket 1. Remove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer in the upper corner. 2. Install a strain relief into the power cord entry hole of the mounting bracket.

  • Page 24: Specification

    After installing, if you are in doubt, call a qualified electrician to install and wire the dryer. Specifications Model Rated voltage , frequency Rated dry capacity Rated dry power Weight (about) Dimension GDZ22-2 220V~ 50Hz 10 kg 4800W 55 kg L712mm W686mm H1115mm...

This manual also for:

Gdz22-2-ag, Gdz22-2-kt
