Parts and Functions

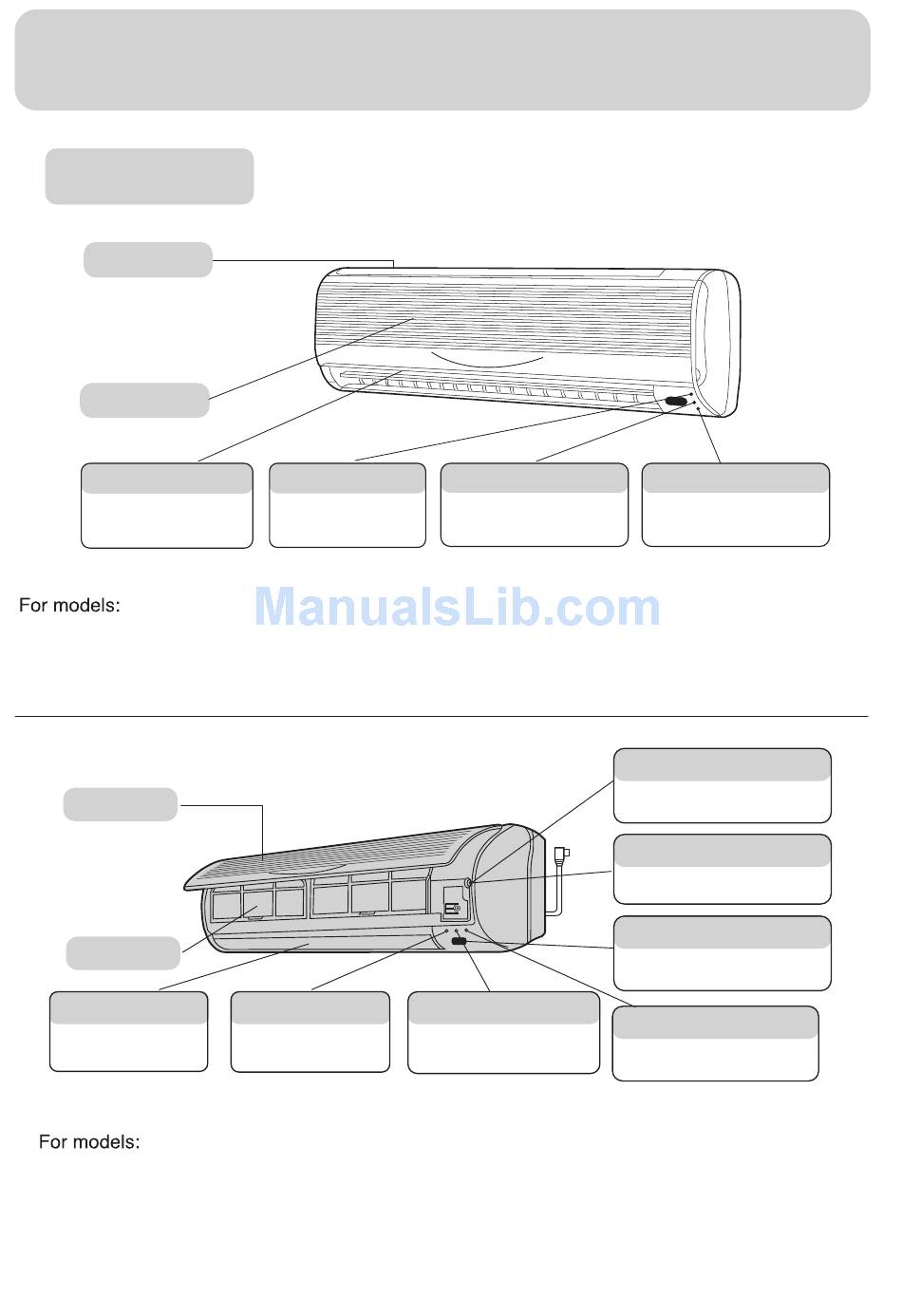

Indoor Unit
Inlet grill
Air filter
Vertical flap
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
AS072AZBDA
AU072ABBAA
(HSU-07HW03/R1)
Inlet grill
Air filter
Vertical flap
Use remote controller to
adjust up and down air
flow.
AS182ATNDA
AU182AFNBA
(HSU-18CW03/R1)
Power
Lights up when unit starts.
AS072AZNDA
AU072ABNAA
(HSU-07CW03/R1)
Power
Lights up when unit starts.
AS162ATNCA
AU162AFNAA
(HSU-16CW03/R1)
Timer mode indicator
Lights up when Timer
operation is selected.
Timer mode indicator
Lights up when Timer
operation
Operation mode indicator
Lights up during compressor
running.
Test running
Used only for test running in cooling
when room temp. is below 16
.
Don't use it in normal operation.
Emergency
Used when remote controller is lost or
defective. Unit will run temporarily.
Remote signal
A beeping sound is generated when
a signal from remote controller is
received.
Operation mode
Lights up during compressor
running.
