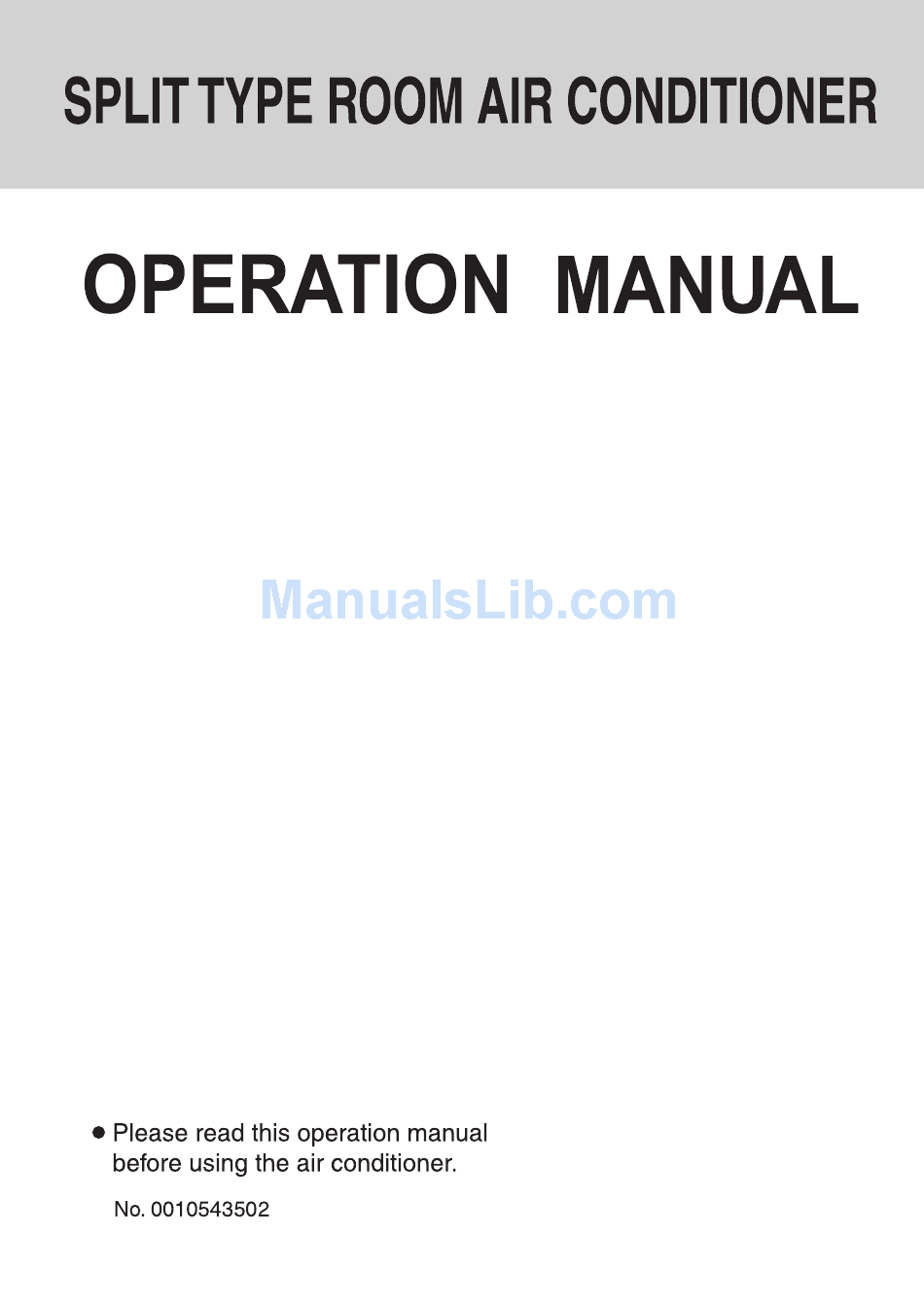

  • Page 1 AS182ATNDA AU182AFNBA (HSU-18CW03/R1) AS162ATNCA AU162AFNAA (HSU-16CW03/R1) AS072AZBDA AU072ABBAA (HSU-07HW03/R1) AS072AZNDA AU072ABNAA (HSU-07CW03/R1)
  • Page 2: Table Of Contents

    Contents Cautions Parts and functions Operation 7-14 Maintenance 15-17 Trouble shooting...
  • Page 3: Cautions

    All the packaging materials employed in Use of the air conditioner is to be carried the package of your new air conditioner out in strict compliance with the relative may be disposed without any danger to instructions set forth in the User's Guide.
  • Page 4 Always remember to unplug the air conditioner before opening inlet grill. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. All electrical repairs must be carried Series 16,18 out by qualified electricians.
  • Page 5: Parts And Functions

    AS072AZNDA AU072ABBAA AU072ABNAA (HSU-07HW03/R1) (HSU-07CW03/R1) Test running Used only for test running in cooling when room temp. is below 16 Inlet grill Don't use it in normal operation. Emergency Used when remote controller is lost or defective. Unit will run temporarily.
  • Page 6 Notes: When a power failure suddenly occurs during the air conditioner is working after the power failure resume is set, if the air conditioner will not be used for a long time, please cut off the power supply to prevent its operation from being resumed after the power is supplied again, or press the "...
  • Page 7 Used to reset the controller buttons back to normal condition. Cautions: Note: On cooling only unit, heating mode is not available. The above information is the After replacing batteries, press ON/OFF, and display explanation of the displayed becomes as follows: information, therefore varies Operation mode: AUTO, Temp.
  • Page 8: Parts And Functions

    TIMER OFF TIMER ON SLEEP Clock When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows: Press CLOCK button, "AM" or "PM" flashes. Press to set correct time. Each press will increase or decrease 1min. If the button is kept depressed, time will change quickly.
  • Page 10: Operation

    Only time remains on LCD. All indicators on indoor unit go out. Vertical flap closed automatically. Hints Remote controller can memorize settings in each operation mode. To run it next time just select the operation mode and it will start with the previous setting.
  • Page 11: Cool, Heat And Dry Operation

    Unit runs at the speed displayed on LCD. temp. is higher than temp. setting. Ultra-low air flow In HEAT mode, warm air will blow out after a short period of time due to cold-draft prevention function. Temp. setting+2 In DRY mode, when room temp. becomes 2 C higher than Temp.
  • Page 12 Be careful not to catch a cold when cold air blows downward. It is harmful to your health in summer to go frequently in and out of places where temp. difference is above 7 C.
  • Page 13: Timer Operation

    Operation TIMER operation Set Clock correctly before starting Timer operation(referring to page 6) You can let unit start or stop automatically at following times: Before you wake up in TIMER ON/OFF After unit start, select your desire operation mode. Operation mode will be displayed on LCD.
  • Page 14 Time displayed: Unit stops at X hour X To cancel TIMER mode Just press TIMER button several times until TIMER mode According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can be achieved.
  • Page 15 Emergency operation and test operation Emergency Carry out this operation only when the remote controller is defective or lost. When the emergency operation switch is pressed, a " Pi " sound starts once, which means the start of this operation.
  • Page 16 Operation Comfortable SLEEP Before going to bed at night, you can simply press TEMP the SLEEP button and unit will bring you a sound SWING sleep in selected mode. MODE SLEEP CLOCK TIMER LOCK RESET In COOL mode One hour after SLEEP mode starts, temp. will become 1 C higher than temp.
  • Page 17: Maintenance

    In case of heavy stain, clean it with neutral detergent. squeeze water in the cloth, wipe off the detergent on unit Cleaning of remote controller Don't use water to wash unit casing, please use dry cloth. Don't use glass cleanner or cloth soaked with chemicals. Cleaning of air filter...
  • Page 18 Maintenance...
  • Page 19: Maintenance

    Curtains or blinds for windows Avoid time- wasteful Never fail to observe the Do not sprinkle water over Do not block the inlet or the unit. outlet. Do not pull power plug. Do not use for other Such as food preservation, plant cultivation, or animal breeding.
  • Page 20: Trouble Shooting

    This noise is generated by the casing expanding or shrinking because of temperature changes. Should there be a big noise from air flow in unit operation, air filter may be too dirty. This is because the system circulates smells...
