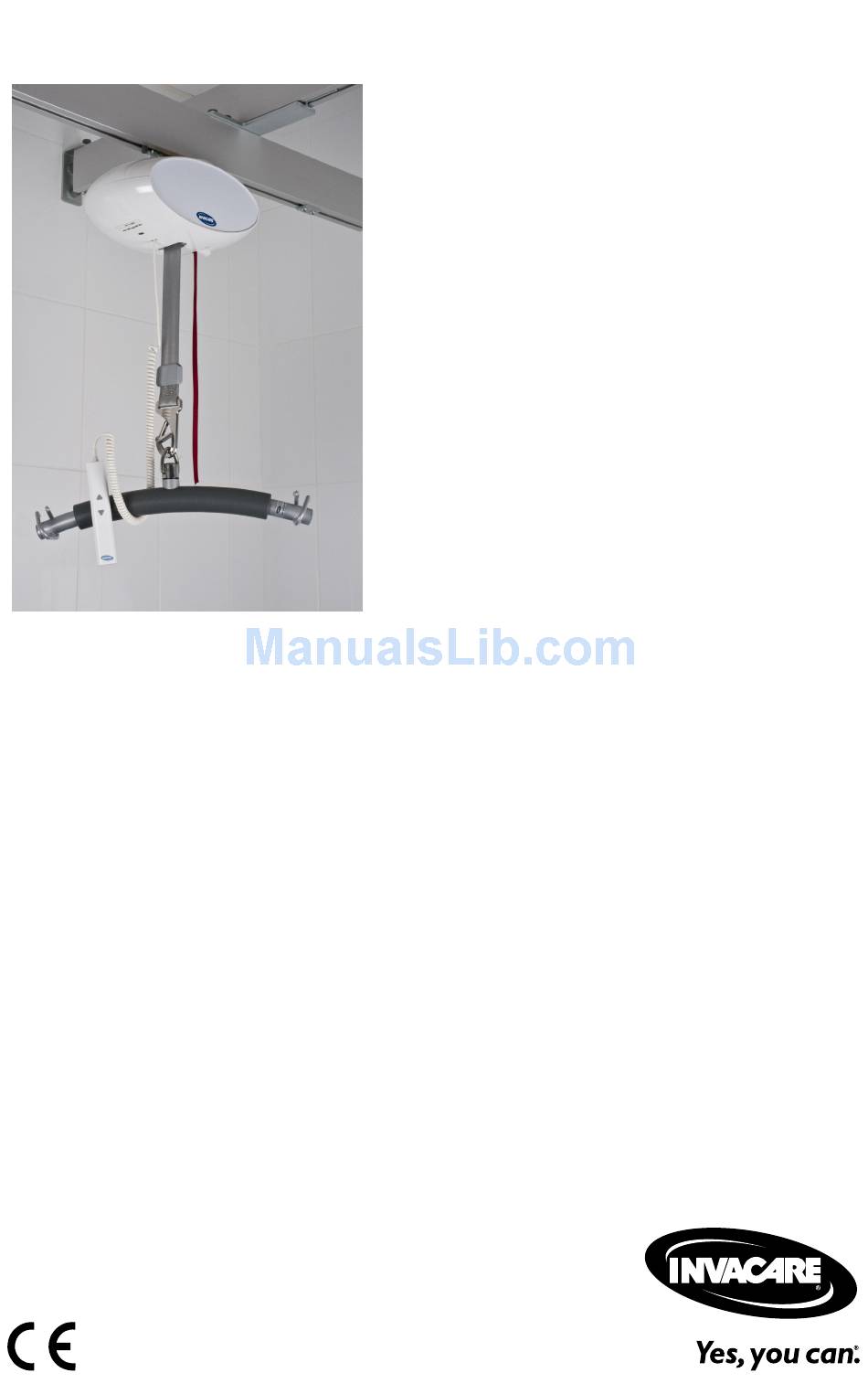

- Page 1 Invacare® I-Transia™ I-Transia 205 kg (450 lb), I-Transia 250 kg (550 lb) EN Ceiling Hoist User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless...
-
Page 3: Table Of Contents
Transport and Contents Storage ....20 Disposal ....20 General ....4 Troubleshooting . -
Page 4: General
I-Transia™ 1 General 1.1 Symbols Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. See the information below for definitions of the signal words. WARNING! – Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 5: Conditions For Use
• The hoist is used with an Invacare hanger bar. • The hoist is used with an Invacare lifting sling or with other suitable slings. Refer to 5.1 Sling Information, page 18. 1.4 Service Life The I-Transia has an expected lifetime of 15 years, on the condition of correct use and correct service inspections. -
Page 6: Safety
– If the I-Transia fails while in use, stop using the hoist, transfer the patient using a different method and contact an Invacare dealer for repair by a certified technician. -
Page 7: Pinch Points And Positioning
Safety WARNING! – The electronics may only be serviced by certified service technicians – For safety reasons the side cover may only be dismantled when the emergency stop is activated. – This product is mechanically protected against derailing and jamming. –... -
Page 8: Load Limits
I-Transia™ 2.3 Load Limits Read the label which indicates the maximum load limits for each component. The component, e.g. hanger bar, lifting sling, etc. labelled with the lowest load limit determines the maximum load limit for the entire system. This maximum load limit must not be exceeded. Please note that the max load may change when different components are used, such as hanger bars, lifting slings, etc. -
Page 9: Product Labeling
Safety 2.6 Product Labeling Hoist Only one of the weight limit labels are on the bottom of the hoist. A = Serial Number Power supply 1183377-A... - Page 10 I-Transia™ Hand control Hanger Bar The hanger bar label is located near the end of the hanger bar, to the inside of the hooks. 1183377-A...
-
Page 11: Setup
Setup 3 Setup 3.1 Included Items I-Transia hoist* Hand control Transformer Charging station Side covers Hanger bar *The hoist includes the lifting strap, carabiner and trolley. 3.2 Installing the Hanger Bar Before Use WARNING! Risk of Injury Pinch points are present on the strap carabiner B and fingers could be pinched. The hanger bar A can move suddenly and cause injury. -
Page 12: Before Use
I-Transia™ The hanger bar A can be installed to the lifting strap carabiner B without the use of tools. Pull and hold the retainer C up toward the pin D. Move the pin and retainer down to open the carabiner B. Install the hanger bar A onto the carabiner. -
Page 13: Operation
Operation 4 Operation 4.1 Indicator lamps and audio signals Status Indicator Audio Possible I-Transia Functions lamps signals Down Emergency Lowering Off-stand by All OK Green ü ü ü Low battery Yellow ü ü ü Fault on hoist Yellow Beeps at ü... -
Page 14: Charging The Battery
An audible “click” indicates that the hand control is placed correctly. 4.4 Emergency stop and lowering strap WARNING! – If the emergency stop or lowering strap must be used, there is a problem with the system. Contact your Invacare dealer for service before using the system again. 1183377-A... -
Page 15: Emergency Stop
Operation The red strap A on the underside of the hoist B has the following functions: • Emergency stop • Emergency lowering Emergency stop Pull and release the red strap A to activate the emergency stop function if the hoist B does not stop or react to the hand control during use. -
Page 16: Emergency Lowering
Release the red strap to stop lowering the patient. The emergency stop feature is activated when the strap is released. If the hoist system needs service, contact your Invacare dealer for service. Reset the emergency stop to resume using the hoist. Refer to Resetting the emergency stop, page 17. -
Page 17: Resetting The Emergency Stop
Operation Resetting the emergency stop The yellow reset button A pops out when the red strap B has been pulled. The hoist will not function until the emergency stop is reset. Press the yellow button on the bottom of the hoist to reset the emergency stop or lowering feature. -
Page 18: Lifting The Patient
5.1 Sling Information WARNING! Invacare shall not be liable for damage or injury that may occur as a result of using slings made by other manufacturers. Invacare shall not be liable for damage or injury due to incorrect use of the sling or inadequate attention by the caregiver or user. -
Page 19: Lifting Information
Lifting the Patient 5.3 Lifting Information WARNING! Only personnel who have received training regarding the use of lifting equipment and fitting of slings should use the hoist. – Plan the move. Avoid leaving the user in the sling unattended. – The I-Transia lifts quickly. Before lifting, check that the user is completely free of his/her surroundings. -
Page 20: After Use
I-Transia™ 6 After Use 6.1 Transport and Storage Invacare recommends that the I-Transia is always transported and stored in the original packaging. For long term storage, the emergency stop must be activated. Refer to Emergency stop, page 15. This will prevent the discharge of the battery. - Page 21 Environmental Policy Statement Invacare is continuously working towards ensuring that the company's impact on the environment, locally and globally, is reduced to a minimum. It is Invacare’s goal to: • Comply with the current environmental legislation (e.g. WEEE and REACH directives) •...
-
Page 22: Troubleshooting
Place the hand control in the charging station and recharge the I-Transia. Trolley does not traverse. Rails require service or Contact an Invacare dealer cleaning. for service. Hoist will not charge System does not have power Place the hand control in the... -
Page 23: Maintenance
If damage is found, DO NOT use. Contact your Invacare dealer IMMEDIATELY. If you question the safety of any part of the lift, contact your Invacare dealer immediately and advise him/her of your problem. Replacement of parts must only be performed by a certified technician. -
Page 24: Cleaning The Sling And Hoist
If damage is found, DO NOT use. Contact your Invacare dealer IMMEDIATELY. Check the emergency stop and emergency lowering function. Check all parts for external damage or wear. If damage is found, DO NOT use. Contact your Invacare dealer IMMEDIATELY. -
Page 25: Technical Data
Technical Data 9 Technical Data 9.1 Typical Product Parameters Classification Non-permanent installation with out protective ground. Mobile equipment is class II equipment (marked with double-encased symbol) and can be connected to the mains Class II equipment direct by the user. Equipment is disconnected from the supply mains by detaching the mains plug from the wall outlet. - Page 26 I-Transia™ Dimensions 580 mm (22.8 in) 350 mm (13.8 in) 156 mm (6.1 in) 184 mm (7.2 in) 83 mm (3.3 in) E, min 415 mm (16.3 in) F, min 2500 mm (98.4 in) Depth of hoist 194 mm (7.6 in ) Safety Emergency stop Emergency lowering device...
-
Page 27: Warranty
In order to comply with Health & Safety regulations and to ensure that Invacare employees are not exposed to the risk of infection, we must insist that all products returned for repair are thoroughly cleaned. Any product sent to Invacare which appears to be contaminated will be rejected and disposed of immediately at the customer’s expense. - Page 28 Notes...
- Page 29 Notes...
- Page 30 Notes...
- Page 31 3957 • www.invacare.co.nz • sales@invacare.co.nz France Invacare Poirier SAS • Route de St Roch • F-37230 Fondettes • Tel: (33) (0)2 47 62 64 66 • Fax: (33) (0)2 47 42 12 24 • www.invacare.fr • contactfr@invacare.com Switzerland Invacare AG • Benkenstrasse 260 • CH-4108 Witterswil • Tel.: (41) (0)61 487 70 80 •...
- Page 32 V. Guldmann A/S Graham Bells Vej 21–23A DK-8200 Aarhus N, Denmark EU Representative Invacare Limited Pencoed Technology Park Pencoed, Bridgend CF35 5AQ United Kingdom Invacare Corporation One Invacare Way Elyria, Ohio USA 44036–2125 800–333–6900 www.invacare.com 1183377-A 2013-05-07 Making Life’s Experiences Possible™...
