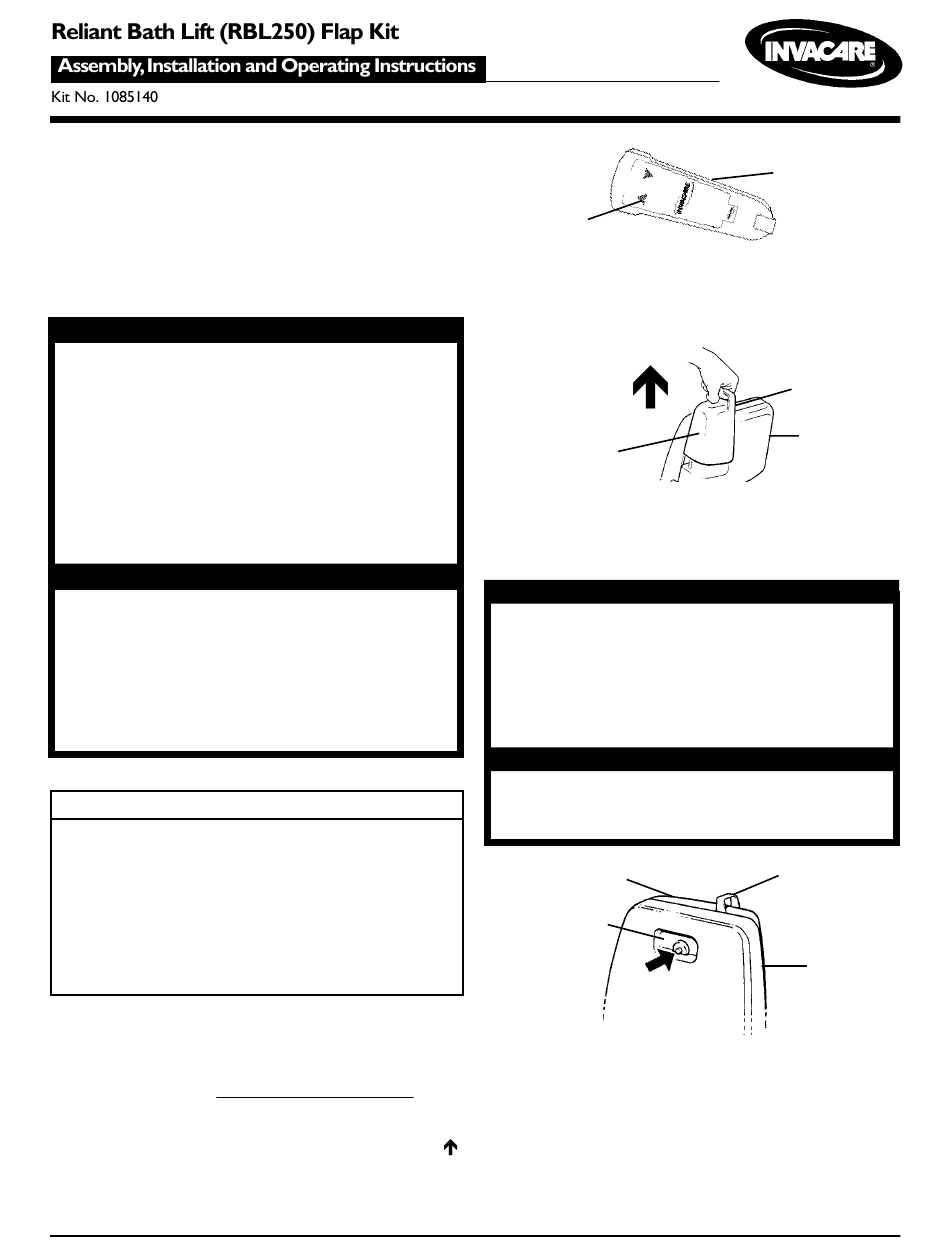

Invacare 1085140 Assembly, Installation And Operating Instructions

NOTE: Check all parts for shipping damage before
using. In case of damage, DO NOT use. Contact the
Dealer/Carrier for further instructions.
SAFETY SUMMARY
The following recommendations are made for the
safe replacement of the FLAP KIT on the Reliant Bath
Lift (RBL250).
GENERAL WARNINGS
DO NOT assemble or use this kit without first
reading and understanding this instruction
sheet. If you are unable to understand the
Warnings, Cautions and Instructions in this
sheet and in the Owner's Operating and
Maintenance Manual (Part No. 1081003),
provided with the Bath lift, contact a health-
care professional, dealer or technical per-
sonnel before attempting to install this kit,
otherwise, injury or damage may occur.
INSTALLATION WARNINGS
When installing or removing the Battery
pack ALWAYS hold the battery pack firmly,
otherwise injury or damage may result.
To prevent frame from tipping when rais-
ing or lowering, either suction the frame
to the floor or place one foot on the frame
base when removing/installing the seat.
This kit contains the following:
DESCRIPTION
Flaps
Screws
Nuts - Self Locking
Washers
Hinges
Pins
Circlip
Instruction Sheet
REPLACING THE BATH LIFT FLAPS
Removing the Bath Lift Seat (FIGURES 1-7)
NOTE: Refer to the GENERAL WARNINGS in the
SAFTY SUMMARY of this Instruction Sheet.
1. Raise the Bath Lift seat by pressing the UP ( )
button on the pendant (FIGURE 1).
NOTE: The lift will automatically stop at the top and
bottom limits if UP/DOWN buttons are not released.
Up
FIGURE 1 - RAISING THE BATH LIFT
2. Remove the battery pack by grasping the handgrip
on battery pack and pulling upwards (FIGURE 2).
PULL UP TO
REMOVE
Battery Pack
FIGURE 2 - REMOVING THE BATTERY PACK
3. To release the seat, press and hold the spring loaded
chair release button (FIGURE 3).
To prevent pinching injury between seat
back and motor shroud when removing/
installing the seat, DO NOT grasp seat
anywhere other than at the recess at
the top (FIGURE 3), the opening at the
bottom of the seat or the lip where the
battery pack was.
DO NOT remove the seat until the bath Lift
is raised to the upper limit. Otherwise dam-
QTY
age may occur.
2
4
Motor Shroud
4
4
4
Recess
4
8
1
FIGURE 3 - RELEASING THE SEAT
4. While holding the spring loaded chair release button
with one hand, grasp the seat bottom firmly with your
other hand.
5. Lift the seat up until the slide block comes free of the
grooves on the bath lift frame to remove the seat from
the frame (FIGURE 4).
1
Pendant
WA R N IN G
CAUTION
Battery Pack
Spring Loaded
Chair Release
Button
Handgrip
Frame
Seat
