Invacare 1073913 Assembly, Installation And Operating Instructions

21" Arm Pad for Walker Platform Attachment
Assembly, Installation and Operating Instructions
Model Nos. 1073913
NOTE: Check ALL parts for shipping damage. If shipping damage is noted, DO NOT use. Contact
carrier/dealer for further instruction.
Arm pads installed on the Walker Platform Attachment model 6027 may not be suitable
for all arm sizes. Invacare recommends replacing the existing 17" semi‐adjustable arm
pad with the 21" fully adjustable arm pad.
To ensure the safe and proper installation of the walker platform attachment, these
instructions MUST be followed:
DO NOT install this equipment without first reading and understanding this instruction
sheet. If you are unable to understand the warnings, cautions and instructions, contact a
healthcare professional, dealer or technical personnel if applicable, before attempting
to install this equipment - otherwise, injury or damage may occur.
Ensure that ALL attaching hardware is secure.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching component parts are secure.
Installing the Arm Pad and Strap
NOTE: For this procedure, refer to FIGURE 1.
1. Remove arm pad and cover.
NOTE: Note the orientation of the existing arm
strap for installation of the new arm strap.
2. Pull on ring and remove fastening strap
through the slots in the arm support.
3. Thread the end without the ring of the
new arm strap through slots in the arm
support.
NOTE: Make sure the hook end is facing down
or the arm strap will not secure properly.
4. Slide the arm pad and cover over the arm
support.
For more information regarding Invacare products, parts, and services,
Part No 1143248
Download from Www.Somanuals.com. All Manuals Search And Download.
SAVE THESE INSTRUCTIONS
Safety Summary
WARNING
INSTALLATION WARNING
please visit www.invacare.com
1
Slots
Arm
Support
NOTE: Arm pad removed for clarity.

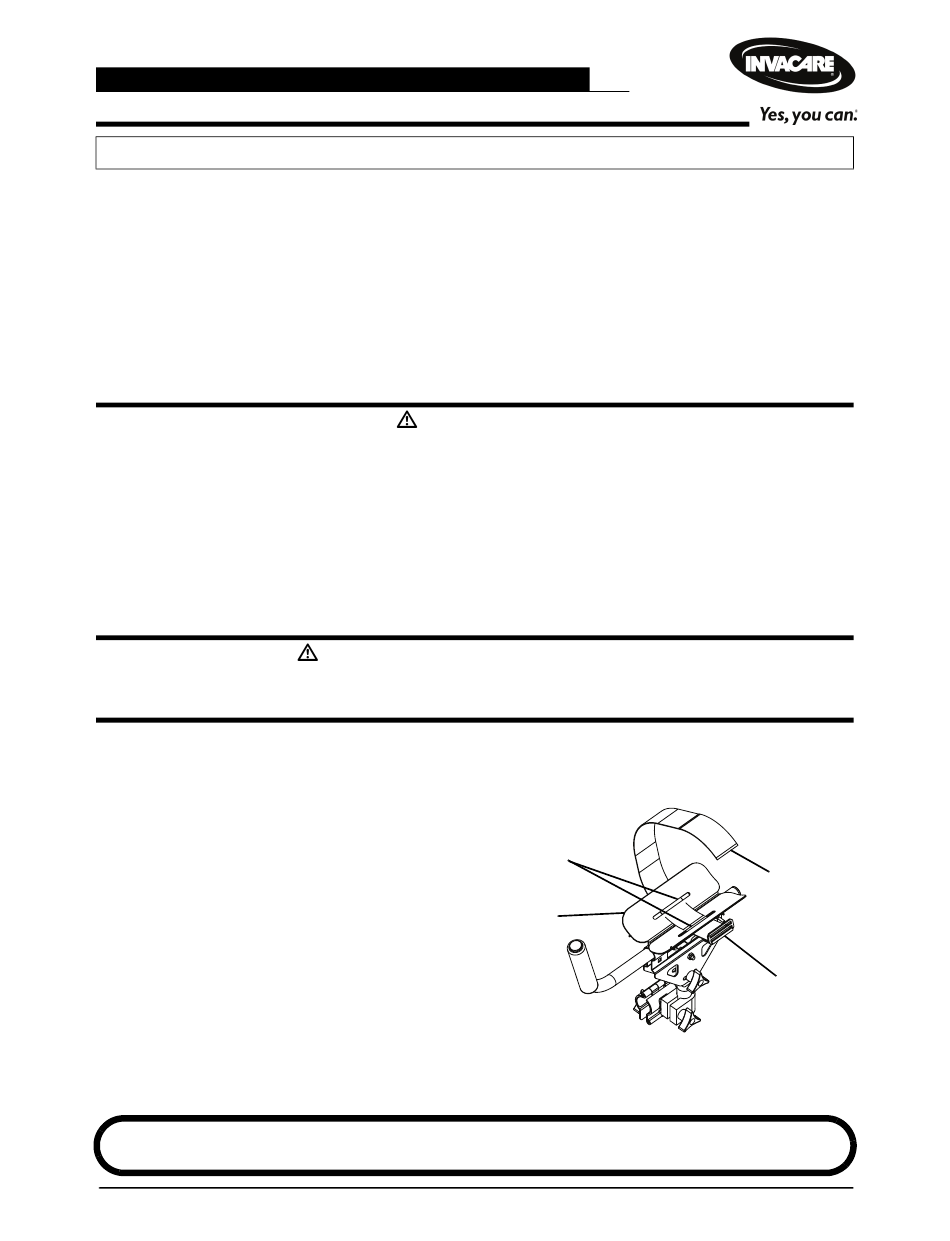

FIGURE 1 Installing the Arm Pad and Strap
21" Arm Pad for Walker Platform Attachment
Fastening
Strap
Ring
