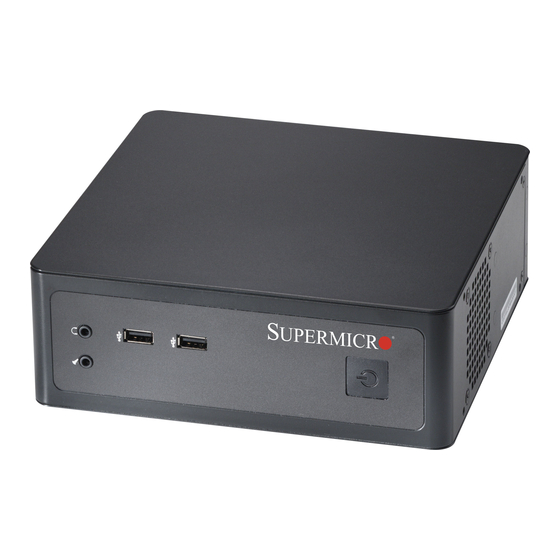

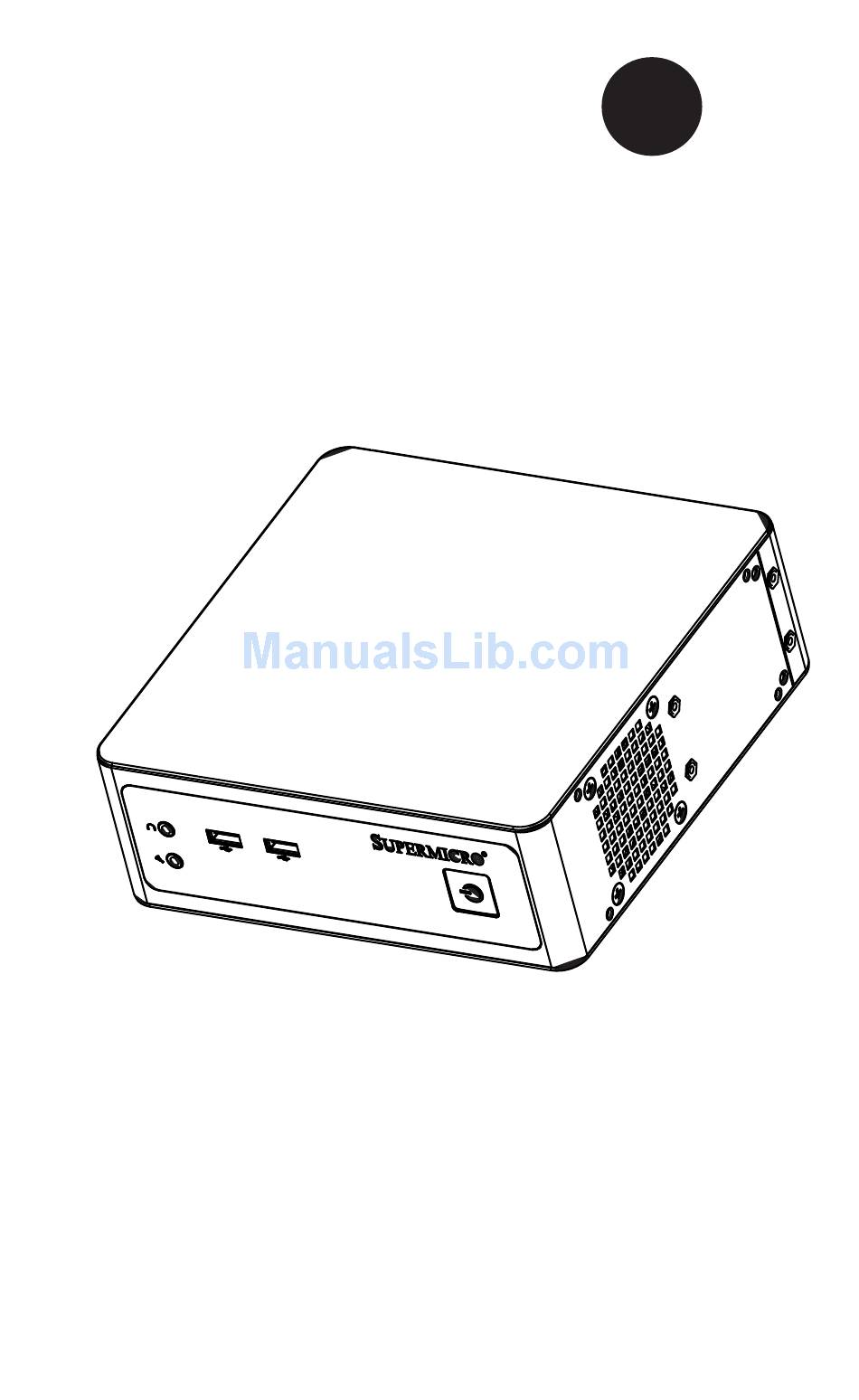

  • Page 1 UPER ® SC101i Chassis USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC101i chassis. Installation and maintenance should be performed by experienced technicians only. This document lists compatible parts available when this document was published.
  • Page 4: Manual Organization

    Chapter 1 Introduction The first chapter provides an overview of the main components and features of the SC101i chassis. This chapter also includes contact information. Chapter 2 Warning Statements for AC Systems This section lists warnings, precautions, and system safety. It is recommended that you thoroughly familiarize yourself with this chassis safety precautions.
  • Page 5: Table Of Contents

    Preface Contents Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Part Numbers ....................1-1 Where to get Replacement Components ............1-2 Contacting Supermicro ..................1-3 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............2-1 Warning Definition ...................
  • Page 6 Installing a Power Converter Board ..............5-8 Appendix A Cables, Screws, and other Accessories Overview ......................A-1 Optional Cables Included with SC101i Chassis ..........A-1...
  • Page 7: Chapter 1 Introduction

    60W or 80W power adapter cord or an optional 60W or 80W DC to ATX power converter board. Shipping List Part Numbers Please visit the following link for the latest shiping lists and part numbers for your particular chassis model http://www.supermicro.com/ SC101i Mini-ITX Box Chassis Power Model Cooling Front I/O Supply...
  • Page 8: Where To Get Replacement Components

    SC101i Chassis Manual Where to get Replacement Components Though not frequently, you may need replacement parts for your system. To en- sure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors/ System Integrators/Resellers.
  • Page 9: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 10 SC101i Chassis Manual Notes...
  • Page 11: Chapter 2 Standardized Warning Statements For Ac Systems

    Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 12 SC101i Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 13 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...
  • Page 14: Installation Instructions

    SC101i Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前,請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
  • Page 15: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 (過電流) 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...
  • Page 16: Power Disconnection Warning

    SC101i Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 17 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
  • Page 18: Equipment Installation

    SC101i Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.
  • Page 19: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
  • Page 20: Battery Handling

    SC101i Chassis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 21 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.
  • Page 22: Redundant Power Supplies

    SC101i Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个,必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個,必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.
  • Page 23: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...
  • Page 24: Comply With Local And National Electrical Codes

    SC101i Chassis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...
  • Page 25: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...
  • Page 26: Hot Swap Fan Warning

    SC101i Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 27 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置,風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
  • Page 28: Power Cable And Ac Adapter

    SC101i Chassis Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 29 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 30 SC101i Chassis Manual Notes 2-20...
  • Page 31: Chapter 3 Chassis Components

    Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual. Components The SC101i chassis includes the following components: • One fixed internal 2.5" hard drive. •...
  • Page 32 SC101i Chassis Manual Notes...
  • Page 33: Chapter 4 System Interface

    Chapter 4 System Interface Overview Power Button Figure 4-1. Power Button and Hard Drive Activity LED The SC101i front panel features a power button that displays a multicolored LED. The colors indicate server activity. LED colors: • blue – Power on •...
  • Page 34 SC101i Chassis Manual Notes...
  • Page 35: Chapter 5 Chassis Setup And Maintenance

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install or replace components in the chas- sis. The only tool required is a Phillips screwdriver. Review the warnings and precautions listed in the manual before setting up or servicing this chassis.
  • Page 36: Removing The Chassis Cover

    SC101i Chassis Manual Removing the Chassis Cover Cover Hook Cover Hook Figure 5-1: Removing the Chassis Cover 1. Power down the system as described in section 5-2. 2. Remove the two side screws that hold the chassis cover in place and set these aside for later use.
  • Page 37: Installing The Motherboard

    Chapter 5: Chassis Setup and Maintenance Installing the Motherboard Note: If you purchased a power converter board, install it before installing the motherboard. The procedure is in section 5-8. 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions.
  • Page 38 SC101i Chassis Manual Figure 5-3: Chassis Standoffs 6. Secure the motherboard to the chassis using the rounded, Phillips head screws. Do not exceed eight inch-pounds of torque when tightening down the motherboard. 7. Connect the cables to the motherboard as needed.
  • Page 39: Installing The Hard Drive

    Chapter 5: Chassis Setup and Maintenance Installing the Hard Drive The SC101i uses a fixed 2.5" hard drive. It is installed into a mounting tray. Figure 5-4: Installing the Hard Drive Installing the Hard Drive The motherboard should be installed before installing the hard drive.
  • Page 40: Replacing The System Fan

    SC101i Chassis Manual Replacing the System Fan The SC101i includes a system fan that provides cooling for the chassis. 1. Power down the system as described in section 5-2 and remove the chassis cover. 2. Remove the failed fan power cable from motherboard.
  • Page 41: Installing Mounting Brackets

    Chapter 5: Chassis Setup and Maintenance Installing Mounting Brackets The chassis includes mounting brackets that allow it to be mounted in any conve- nient space in the work environment. 1. Power down the system as described in section 5-2. 2. Choose the desired bracket mounting configuration from the two options below: Configuration A Configuration B...
  • Page 42: Installing A Power Converter Board

    SC101i Chassis Manual Installing a Power Converter Board If your motherboard supports simple DC input power, a power cord with an inline power adapter is sufficent. If your motherboard accepts only ATX power, a power converter board is requred For lower power needs, use the 60W converter board.
  • Page 43 Chapter 5: Chassis Setup and Maintenance The 80W power converter board uses an alternate power input receptacle and interior cable (supplied). It also comes with a bracket to facilitate attachment to the chassis. Mounting Bracket Figure 5-10. Installing the 80W Power Converter Board 1.
  • Page 44 SC101i Chassis Manual Notes 5-10...
  • Page 45: A-1 Overview

    This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com. A-2 Optional Cables Included with SC101i Chassis SC101i Part # Type...
  • Page 46 SC101i Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
