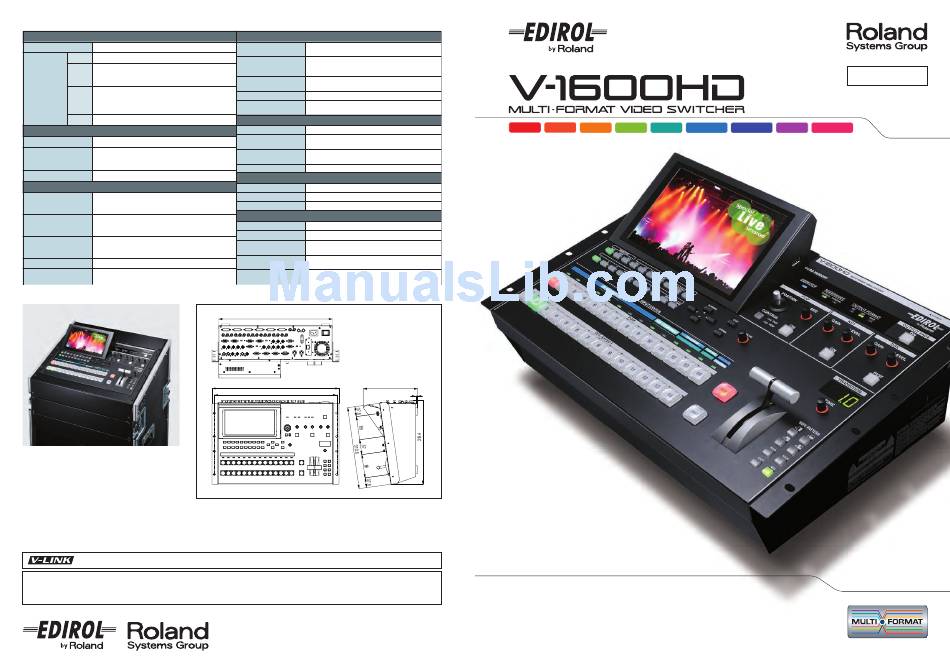

Edirol V-1600HD Specifications

nSpecifications
Video Processing
4:2:2 (Y:Pb:Pr), 10 bit
Processing
SD
480/59.94i, 576/50i, 480/59.94p, 576/50p
1080/59.94p, 1080/50p
HD 1080/59.94i, 1080/50i
720/59.94p, 720/50p
Supported
Formats
640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz,
1280 x 1024/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
RGB
* Confirms to VESA DMT Ver 1.0 Revision 10
* Reduced blanking to be applied to 1920 x 1200
STILL BMP
Input/Output Level and Impedance
Composite 1.0 Vp-p, 75 ohms
Luminance Signal : 1.0 Vp-p, 75 ohms
Chrominance Signal : 0.286 Vp-p, 75 ohms (NTSC)
S-Video
0.3 Vp-p, 75 ohms (PAL)
Analog HD/RGB 0.7 Vp-p, 75 ohms (H, V : 5VTTL)
Input Connectors
* Loop thru connectors are equipped for all inputs
S-Video (4 pin mini DIN type) x 1
Composite (BNC type) x 1
Analog SD
* Select one from menu
Y/Pb/Pr (BNC type) x 2
Analog HD
D-Sub 15 pin type x 2
(Component)
* Combined use with analog RGB
R/G/B/H/V (BNC type) x 2
Analog RGB
D-Sub 15 pin type x 2
* Combined use with analog HD (Component)
DVI-D Single Link Type x 2
BNC type x 8
HD/SD-SDI
* Conforms to SMPTE 259M-C, SMPTE 292M
nRackmount Setup n Dimensions
Using V-LINK, musicians can "play" video from their electronic instrument when used with EDIROL video products. With V-LINK, musicians have a powerful interface for realtime
audio and video integration.
Ensuring high quality while protecting the environment: Roland is ISO9001 and ISO14001 certified
At Roland, several group companies have obtained ISO9001 certification. In addition, in January 1999, Roland also received ISO14001 international environmental management system certification. We're
actively seeking ways to maintain harmony with the environment. (ISO=International Standardization Organization: an organization for the promotion of standardization of international units and terms. They
provide different categories of certification: ISO9001 Series certification is a product quality certification for products that undergo a certain level of quality control from the design stage to the after service stage;
ISO14001 Series certification is for environment-related standards. Each member of the Roland Group is striving to obtain certification.)
Output Connectors
S-Video (4 pin mini DIN type) x 1
Analog SD
Composite (BNC type) x 1
Y/Pb/Pr (BNC type) x 1
Analog HD
D-Sub 15 pin type x 1
(Component)
* D-Sub 15 pin type : combined use with analog RGB
D-Sub 15 pin type x 1
Analog RGB
* Combined use with analog HD (Component)
DVI-D Single Link Type x 2
BNC type x 2
HD/SD-SDI
* Conforms to SMPTE 259M-C, SMPTE 292M
Other Connectors
D-Sub 15 pin type x 3 (200 mA, Open Collector type)
TALLY
MIDI (IN, OUT/THRU)
Remote
RS-422 (D-Sub 9 pin type) x 1
BNC type (IN, THRU)
REFERENCE
* Black Burst, Bi-Level, Tri-Level Sync
USB port (host)
A type x 1 for USB memory
Effects
Transition Mix, FAM, NAM, Wipe (9 patterns)
Composition
PinP, Chroma Key, Luminance Key, Split, DSK
Others Output Fade, Edge Blending, Multi Screen (Video Wall)
Others
AC117 V, 220 V, 230 V, 240 V (50/60Hz)
Power Supply
Power Consumption 90 W
482 (W) x 319.4 (D) x 206.2 (H) mm
Dimensions
19 (W) x 12-5/8 (D) x 8-1/8 (H) inches
8.1kg
Weight
17 lbs 14 oz
Power Cord,
Accessories
Owner's Manual
432
Unit: mm
482 206.2
465
6.5
www.rolandsystemsgroup.net
All specifications and appearances are subject to change.
All trademarks used in this catalog are the property of their respective companies.
APR. 2010 RAM-2006 GEN
HD-SDI SD-SDI DVI-D HDMI RGB
COMPONENT
An All-In-One Multi-Channel,
Multi-Format Live Video Switcher
Preliminary
S-VIDEO
COMPOSITE STILL IMAGE
